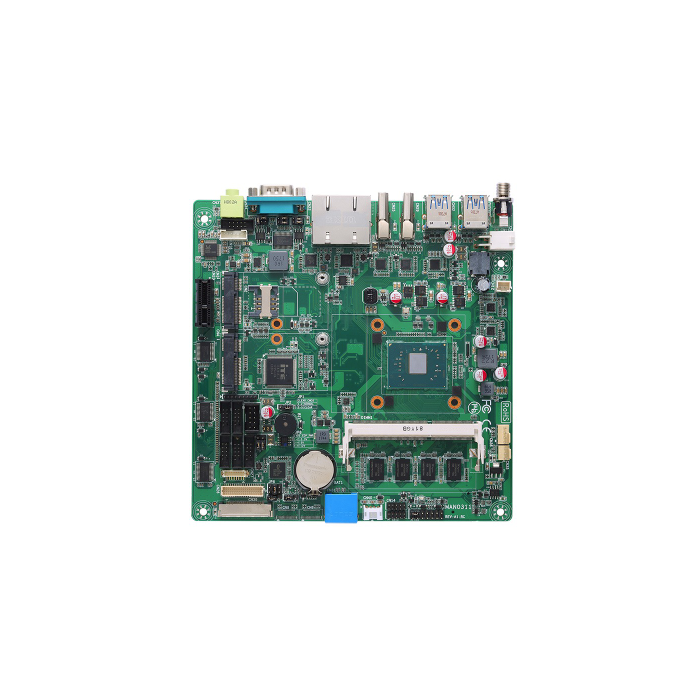

MANO311Thin Mini-ITX SBC Celeron N3350, Dual HDMI, LVDS, USB 3.0, mPCIe, mSATA

In stock
SKU:
MANO311 - Celeron N3350 CPU
Brand: Axiomtek

Category: Single Board Computers

Thin Mini-ITX SBC with Intel® Celeron® Processor N3350, Dual HDMI, LVDS, USB 3.0, PCI Express Mini Card, mSATA and HD Audio


Enquire Now
Enquire about this product:

Intel® Celeron® processor N3350

1 DDR3L SO-DIMM for up to 8GB of memory

4GB DDR3L onboard memory (optional)

1 PCI Express Mini Card slot and PCIe x1

4 USB 3.0 and 2 USB 2.0

1 SATA-600, 1 mSATA and 1 SDXC

6 COM supported

Low profile


This product is listed in Digital Signage, Industrial Automation, Mining, Transport, Axiomtek, Embedded Boards
CPU
  • Intel® Celeron® processor N3350
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1866, up to 8GB
  • 4GB onboard memory (optional)
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (Rear I/O)
  • 5 x RS-232 (One with +5/+12V powered)
USB
  • 2 x USB 2.0 (internal)
  • 4 x USB 3.0 (rear I/O)
Ethernet
  • 2 x 10/100/1000 Mbps (Realtek RTL8111F)
Display
  • 2 x HDMI
  • 1 x LVDS
  • 1 x eDP (optional)
Digital I/O
  • 16-channel in/out programmable
Audio
  • Mic-in/Line-out
Storage
  • 1 x mSATA
  • 1 x SDXC slot
  • 1 x SATA-600
Expansion
  • 1 x PCIe x1
  • 1 x PCI Express Mini Card slot
  • 1 x SIM card slot
Others
  • 1 x PS/2 keyboard and mouse
Battery
  • Lithium 3V/220 mAH
Power Input
  • 1 x 12V/5A DC jack power
  • 1 x 12V to 24V 4-pin ATX power
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
