1-24 of 152 Items

Set Descending Direction
  1. AIE510-ONX Fanless Edge AI System with NVIDIA Jetson Orin NX
    AIE510-ONX Fanless Edge AI System with NVIDIA Jetson Orin NX

    NVIDIA Jetson Orin NX 16GB, 1 HDMI, 1 GbE PoE, 1 2.5 GbE PoE, 2 USB, 1 COM/CAN, and 8-CH DIO for AMR & Robotics

    Key Features:

    • NVIDIA Jetson Orin NX (100 TOPS)
    • Seamless speed: 5G, Wi-Fi 6E, and 2.5 GbE combined
    • Easily manage: USB and PoE device power control
    • Supports dual PoE for camera & sensor connectivity
    • -25°C to +60°C operating temperature range
    • Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
  2. AIE900A-AO Fanless Edge AI System w/ NVIDIA Jetson AGX Orin
    AIE900A-AO Fanless Edge AI System w/ NVIDIA Jetson AGX Orin

    Fanless Edge AI System with NVIDIA Jetson AGX Orin, 2 2.5GbE, 8 PoE, and 2 COM/CAN for 5G and Robotics Applications

    Key Features:

    • NVIDIA Jetson AGX Orin with 1792-core NVIDIA Ampere GPU
    • 1 M.2 Key B slot for 5G/LTE, 1 M.2 Key E slot for Wi-Fi 6(E)
    • 24 VDC with ignition power control
    • Supports eight PoE for IP cameras and LiDAR connectivity
    • -30°C to +50°C operating temperature range
    • Supports device management and optional OTA deployment powered by Allxon
  3. aROK5510 - EN50155 2U 8/9th Gen CPU Rail Server
    aROK5510 - EN50155 2U 8/9th Gen CPU Rail Server

    Intel Core 8/9th Gen/Xeon CPU with Rich Storage Powerful Platform for AI Application and Storage Server

    Key Features:

    • Intel Coffee Lake S/Refresh 8th/9th-Gen Core/Xeon LGA1151 socket-type CPU
    • 100W power consumption graphics card support
    • Eight SIM cards + four WWAN modules support
    • LTE/5G WWAN module support
    • 6 x External SSD for RAID 0, 1, 5, 10
    • PCle 3.0 x4 NVMe 1.3 high-performance SSD support
    • EN 50155, class OT4 conformity
    • 3 x mini-PCIe + 3 x M.2 socket expansion
    • Smart fan design with temperature-based RPMs
    • Optional expansion module for 4 x PoE M12 or 2 x 10GbE SFP+
    • Rackmount platform
  4. aROK8110 8th/9th Core/Xeon CPU + AI for ADAS and Machine Vision
    aROK8110 8th/9th Core/Xeon CPU + AI for ADAS and Machine Vision

    Intel 8th/9th Gen Core/Xeon CPU + Inference Accelerator AI Powered for Autonomous and Machine Vision

    Key Features:

    • Rolling stock AI recognition and machine vision applications
    • Up to 8-core Intel 8th/9th Gen Core/Xeon CPU processing power
    • 4 x PCIe 3.0 slots for discrete graphics/inference/frame grabber cards
    • Ultra-fast NVMe M.2/U.2 media for high-speed multi-cameras image capture
    • RAID 0/1/5/10 configurable for data security and integrity
    • 24/36 VDC input with ignition management
    • Special fixture design avoids vibration issues with GPU and PCIe cards
    • The functionality of WWAN/5G NR, WLAN and GNSS with up to 4 SIM slots
    • Compliant with EN 50155 OT4 and MIL-STD-810G for anti-vibration/shock w/ graphics card and PCIe card installed
    • Smart fan design with temperature-based RPMs
  5. ATC3200 TX2 AI Computer for ADAS and Machine Vision
    ATC3200 TX2 AI Computer for ADAS and Machine Vision

    Compact AI Edge Computer Jetson TX2 for ANPR, ADAS, ITS or rail applications

    Key Features:

    • AIoT edge gateway for ADAS and smart factory applications
    • Built-in NVIDIA Jetson TX2 SOM up to 1.3 TFOPS compute
    • The compact, rugged and fanless design
    • 4-CH MIPI SerDes CAM in synchronization to reach up to 15m/25m distance
    • Operate over a wide range temperature -30~70°C
    • Two GbE with PoE+ for LiDAR or GigE Vision/IP CAM
    • Diverse data secure storage, eMMC, SD and 2.5” SSD
    • Built-in GNSS & Wi-Fi module, optional for LTE/5G
    • Rich I/O ports: USB 3.0, OTG, COM, DI/DO, CAN and 12V/5VDC, etc.
    • 9~36V DC-in with IGN control
    • CE/FCC, Emark certified
  6. ATC3520-IP7-4C/AI4CR NVIDIA Jetson Orin Nano
    ATC3520-IP7-4C/AI4CR NVIDIA Jetson Orin Nano

    Discover the ATC3520-IP7-4C/AI4CR: Your Edge AI computing solution with NVIDIA Jetson Orin Nano, IP67 design, and certifications for industrial needs.

    Key Features:

    • Edge AI in-vehicle/rail computer
    • Built-in NVIDIA Jetson Orin Nano SOM, up to 40(sparse) INT8 TOPS
    • 4-Port GbE PoE+ for IP CAM/LiDAR sensors
    • HEVC/H.265 hardware CODEC, 11x 1080p30 compute power (decoded)
    • Wide range operating temperature of -30~70°C
    • Rugged, fanless design with an IP67 rating
    • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
    • NEXCOM Acceleration Linux (NAL) OS w/ JetPack 5.1.1 integrated
    • Expansible for LTE/5G NR & Wi-Fi 5/6
    • 9~36V DC-in with ignition control & OCP/OVP
    • CE/FCC, UKCA, Emark/EN50155 certified
  7. ATC3530 Jetson Xavier NX Accelerated AI Edge Computer
    ATC3530 Jetson Xavier NX Accelerated AI Edge Computer

    ATC3530 NVIDIA Jetson Xavier NX Solution Accelerated AI Edge Computer

    Key Features:

    • AI Edge In-vehicle computer
    • 4-Ch MIPI SerDes, 1080p60/4Kp30 over 15m cable (ATC 3530-IP7-4M)
    • Built-in NVIDIA Jetson Xavier NX SOM, up to 21 TOPS compute
    • 4-port GbE PoE+ for IP CAM/LiDAR sensors (ATC 3530-IP7-4C)
    • HEVC/H.265 hardware CODEC, 32 x 1080p30 compute power
    • Wide range operating temperature of -30~70°C
    • The rugged, fanless design with an IP67 rating
    • Ultra-speed PCIe 3.0 x4 NVMe SSD for data integrity
    • NEXCOM Aided Linux (NAL) OS w/ JetPack4.5 integrated
    • Expansible for LTE/5G NR & Wi-Fi 5/6
    • 9~36V DC-in with ignition control & OCP/OVP
    • CE/FCC, UKCA, Emark certified
  8. ATC3540 NVIDIA Jetson Orin NXEdge AI Computer
    ATC3540 NVIDIA Jetson Orin NXEdge AI Computer

    NVIDIA Jetson Orin NX Solution Accelerated Edge AI Computing

    Key Features:

    • Edge AI in-vehicle/rail computer
    • Built-in NVIDIA® Jetson Orin™ NX SOM, up to 100 INT8 TOPS compute
    • 4-port GbE PoE+ for IP CAM/LiDAR sensors
    • HEVC/H.265 hardware CODEC, 18 x 1080p30 compute power (decoded)
    • Wide range operating temperature of -30~70°C
    • The rugged, fanless design with an IP67 rating
    • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
    • NEXCOM Acceleration Linux (NAL) OS w/ JetPack 5.1.1 integrated
    • Expansible for LTE/5G NR & Wi-Fi 5/6
    • 9~36V DC-in with ignition control & OCP/OVP
    • CE/FCC, UKCA, Emark/EN50155 certified
  9. ATC3750-6C NVIDIA Jetson AGX Orin Edge AI Computer
    ATC3750-6C NVIDIA Jetson AGX Orin Edge AI Computer

    NVIDIA Jetson AGX Orin Solution Performance Edge AI Computing for Rail

    Key Features:

    • Built-in NVIDIA Jetson AGX Orin SOM, up to 200/275 TOPS (INT8) performance
    • Designed with rugged, compact and the hybrid thermal solutions
    • 6-port GbE PoE+ (x-coded) for IP CAM/LiDAR sensors, optional 1-port 10GbE (x-coded)
    • HEVC/H.265 hardware DECODE@ 6 x 4K30 performance
    • Wide range operating temperature of -30°C~70°C
    • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
    • Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
    • 24V DC-IN for rail, ignition control & OCP/OVP
    • NEXCOM Acceleration Linux (NAL) integrated w/ JetPack 5.1.1
    • Military standard of MIL-STD-810H for anti-vibration/shock
    • CE/FCC, UKCA, EN50155 (EN55011, EN50121-3-2, EN61373, OT4) Certified
  10. ATC3750-A6CR NVIDIA Jetson AGX Orin Edge AI Computer
    ATC3750-A6CR NVIDIA Jetson AGX Orin Edge AI Computer

    NVIDIA Jetson AGX Orin Solution Performance Edge AI Computing for Rail

    Key Features:

    • Built-in NVIDIA® Jetson AGX Orin™ SOM, up to 200/275 TOPS (INT8) performance
    • Designed with rugged, compact and hybrid cooling solutions
    • 6-port GbE PoE+ (X-coded) for IP CAM/LiDAR sensors, optional 1-port 10GbE (X-coded)
    • HEVC/H.265 hardware DECODE up to 7 x 4K30 performance
    • Wide range operating temperature of -20°C~70°C
    • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
    • Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
    • 24V DC-IN for rail, ignition control & OCP/OVP
    • NEXCOM Acceleration Linux (NAL) integrated w/ JetPack 5.1.1
    • Military standard of MIL-STD-810H for anti-vibration/shock
    • CE/FCC, UKCA, EN50155 (EN55011, EN50121-3-2, EN61373, OT4) Certified
  11. ATC8010-7  - 8 x POE, T1000 MXM Kit Option
    ATC8010-7 - 8 x POE, T1000 MXM Kit Option

    Intel Core 8th Gen. CPU Powerful Intelligent Platform for ADAS and ANPR/AFR

    Key Features:

    • Intel Core 8th Gen. i7-8700T, 2.4GHz, 6 Core
    • 8 x Independent Intel I210-IT 10/100/1000 PoE 802.3af/at
    • AI accelerator MXM module supported
    • ultraONE+ for 10-Meter video + audio output
    • 2 x External SSD and 2 x mSATA for RAID 0, 1, 5, 10
    • 2 x WWAN module and 3 x SIM socket with eSIM option
    • Fanless design
    • 3 x mini-PCIe and 1 x M.2
    • CE/FCC/E mark
  12. ATC8110/8110-F i7 Mobile Expandable AI PC
    ATC8110/8110-F i7 Mobile Expandable AI PC

    Intel Coffee Lake S/Refresh + Inference Accelerator AI Powered for Autonomous and Machine Vision

    Key Features:

    • In-vehicle AI recognition and machine vision applications
    • Fanless/fan flexibility design
    • Up to 8-core Intel® Coffee Lake S/Refresh processing power
    • 3 x PCIe 3.0 slots for Discrete Graphics/Inference/Frame Grabber cards
    • Ultra-fast U.2/M.2 NVMe media for high-speed multi-cameras image capture
    • RAID 0/1/5/10 configurable for data secure and integrity
    • Wide-range 9~36VDC input with Ignition management
    • Rich communication ports, 5 x USB 3.1, 2 x GbE and 4 x RS232/422/485
    • Telemetric functionality of WWAN/5G NR, WLAN and GNSS with up to 4 x 4 MIMO and 4 SIM slots
    • Compliant with E-mark, CE/FCC ClassA and MIL-STD-810G for anti-vibration/shock w/ graphics card installed
    • Realize M-2-M through CAT-M (NB-IoT & eMTC)
  13. AV600-RH Military IP66 AI Edge GPU Computer
    AV600-RH Military IP66 AI Edge GPU Computer

    Military IP66 with D38999 connectors VIDIA RTX A1000/A2000, 2048/2560 CUDA

    Key Features:

    • MIL-STD 810 Thermal, shock, vibration, Humidity / EMI / EMC conditions
    • IP66 Chassis with D38999 connectors
    • Intel 13th Gen. Raptor Lake (H) i7-13800HE/HRE, 14C , 2.5/5.0 GHz Processor
    • Up to 64GB DDR5 SO-DIMM, non-ECC and ECC
    • NVIDIA RTX A1000/A2000, 2048/2560 CUDA,4GB/8GB GDDR6 RAM
    • MIL-STD-461 EMI Filter18V~36V DC-Input
    • Extreme Temperature : -40°C to 60°C
    • Dimensions : 250(L) x 325 (W) x 100 (H) mm
  14. AV600-THT Military IP66 Mission GPU Computer
    AV600-THT Military IP66 Mission GPU Computer

    MIL-STD 810 Thermal, shock, vibration, Humidity/EMI/EMC conditions, IP66 Chassis with D38999 connectors

    Key Features:

    • MIL-STD 810 Thermal, shock, vibration, Humidity / EMI / EMC conditions
    • IP66 Chassis with D38999 connectors
    • Intel® 11th Gen. Tiger Lake(H) W-11865MRE Processors, up to 8 cores
    • Up to 96GB DDR4 SO-DIMM, non-ECC and ECC
    • NVIDIA RTX™ A4500 8GB/16GB GDDR6 memory 5888 CUDA cores
    • Soldered 64 GB NVMe
    • IP65 2 x 2.5” SATA SSD Easy Swap Tray
    • MIL-STD 461 18V~36V DC-Input (Options for MIL-704/1275)
    • Extreme Temperature : -40°C to 70°C
    • Dimensions : 246(L) x 313.5 (W) x 100 (H) mm
  15. AV600TH Military IP66 Mission GPU Computer
    AV600TH Military IP66 Mission GPU Computer

    MIL-STD 810 Thermal, shock, vibration, Humidity/EMI/EMC conditions, IP66 Chassis with D38999 connectors

    Key Features:

    • MIL-STD 810 Thermal, shock, vibration, Humidity / EMI / EMC conditions
    • IP66 Chassis with D38999 connectors
    • Intel® 11th Gen. Tiger Lake(H) W-11865MLE Processors, up to 8 cores
    • 64GB DDR4 SO-DIMM ECC or non ECC support
    • NVIDIA RTX™ A2000 MXM 8GB GDDR6 2560 CUDA cores
    • 2.5” SATA SSD
    • 1x 3G-SDI Capture Card (Options)
    • MIL-STD-461 18V~36V DC-Input
    • Extreme Temperature: -20 to 55°C degrees
  16. AV600X-CH Military IP66 Mission GPU Computer
    AV600X-CH Military IP66 Mission GPU Computer

    MIL-STD 810 Thermal, shock, vibration, Humidity/EMI/EMC conditions, IP66 Chassis with D38999 connectors

    Key Features:

    • MIL-STD 810 Thermal, shock, vibration, Humidity/EMI/EMC conditions
    • IP66 Chassis with D38999 connectors
    • Intel® 9th Gen. Coffee Lake (H) Xeon® E-2276ML processor
    • Up to 128GB DDR4 SO-DIMM, non-ECC and ECC
    • NVIDIA RTX™ A1000, 2048 CUDA® cores, 4GB GDDR6 memory
    • NVMe 3.0 512GB.(MB/sec, Max.) 3,400/3,200 MB
    • MIL-STD-461 18V~36V DC-Input (Options for MIL-704/1275)
    • Extreme Temperature : -40°C to 55°C
    • Optional with External GPU Turbo Kit
    • Dimensions : 250(L) x 313.5 (W) x 100 (H) mm
  17. AV800-D27-A45S4 IP65 Military Server Xeon D-2796NT w/ GPU
    AV800-D27-A45S4 IP65 Military Server Xeon D-2796NT w/ GPU

    Designed to meet MIL-810, MIL-461 EMC/EMI, IP65 Sealed with External Cooling Blade

    Key Features:

    • Ultra High-Performance Intel Xeon Ice Lake-D, D-2796NT (20xCores)
    • NVIDIA MXM-GPU Quadro RTX4500 5888 CUDA
    • MIL-STD 810 Thermal, Vibration, Shock, Humidity
    • 1x 25GbE SFP28, 1x10GbE, 2x 1GbE LAN
    • Up to 512GB LRDIMM/256GB RDIMM
    • 2x NVMe PCIe Gen 4.0 U.2
    • Dual Removable Anti-Drop Solid-State Disk
    • IP65 Sealed with External Cooling Blade
    • MIL-STD-810 Thermal, Shock, Vibration, Humidity
    • MIL-STD 461 EMI/EMC 18V~36V DC-IN(28VDC)
    • Extreme Temperature Support -20~+60°C
  18. CAXA0 10.1" Semi-Rugged Tablet with Celeron N3350
    CAXA0 10.1" Semi-Rugged Tablet with Celeron N3350

    10.1" Semi-Rugged Tablet with Intel Celeron Processor N3350

    Key Features:

    • Semi-rugged design with Intel Celeron N3350
    • Medical certified
    • MIL-STD-810G & IP65 certified, 4-feet drop resistance
    • 10.1” TFT color LCD 1280 x 800 HD
    • Corning Gorilla Glass, 10-point projected capacitive multi-touch panel
    • High mobility with multiple connectivities including WLAN, Bluetooth, NFC
    • Light Design, Weight only 1Kg with Battery
    • G-sensor, light sensor, 2M/8M Camera
    • Option SCR, 1D/2D Barcode scanner
Page
per page

An extensive range of products from rugged PDA's to in-vehicle computers designed specifically for mobile environments. Vehicle, rail and marine certifications.

Tekdis offer an extensive range of rugged mobile computing products designed for use in on board vehicle and rail environments. All products have been designed for application purpose, with compliance to the latest internationally recognised standards.

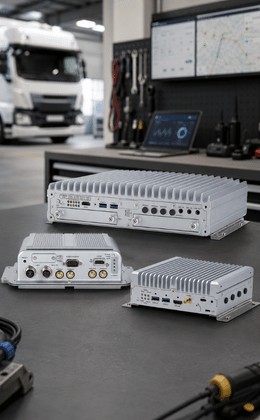

In-Vehicle Computers

All Tekdis In-Vehicle Computers have been designed specifically for the Automotive environment and pass rigorous tests for shock and vibration. Manufactured from extruded aluminium chassis, all system are fully fanless and use only Embedded processors from Intel single core ATOM to Core i7. Other standard functionality includes dedicated On-board Ublox GPS and programmable ignition smarts (battery guard, ON / OFF time delay)

Vehicle Mounted Computers

Tekdis Vehicle Mount Computer have been designed specifically for the Automotive environment and pass rigorous tests for shock and vibration. Manufactured from extruded aluminium chassis, all system are fully fanless and use only Embedded processors from Intel single core ATOM to Core i7 and feature a high quality touchscreen display with programmable function keys.

Vehicle Display

Tekdis Vehicle Display have been designed specifically for the Automotive environment and pass rigorous tests for shock and vibration. Models are available from 7" to 12.1" size. Larger sizes are available on request.

Vehicle POE Switches

All Tekdis In-Vehicle Network switches have been designed specifically for the Automotive environment, pass rigorous tests for shock and vibration and are vehicle certified. Manufactured from extruded aluminium chassis, all units are fully fanless, feature programmable ignition smarts (battery guard, ON / OFF time delay) and will operate -30 to 70c.

Rail Computers

Our range of train computers have been designed specifically for rolling stock applications, pass rigorous environmental tests and adhere to the latest rail certifications. Manufactured from extruded aluminium chassis, all system are fully fanless and use only Embedded processors from Intel single core ATOM to Core i7. Other standard functionality includes dedicated On-board Ublox GPS, programmable ignition smarts (battery guard, ON / OFF time delay), M12 terminations and isolated COMs and power inputs.

AI Vehicle Computers

Tekdis Modular Vehicle Computer have been designed specifically for the Automotive environment and pass rigorous tests for shock and vibration. Manufactured from extruded aluminium chassis, all system are fully fanless and use only Embedded processors from Intel single core ATOM to Core i7.

To find out more about the solutions we offer, please contact our team directly.

Tekdis offers custom built solutions for your application

Tell us what you need
