Railway & EN50155 Certified Computers

Tekdis offers a wide selection of low to high-end railway computing solutions with optional AI capability. Some models have integrated Power-Over-Ethernet (POE) which can be used to connect to IP cameras or Lidar and RFID readers. These models have the EN50155 certification in various form factors applicable to rolling stock and trackside installs. We also offer a range of communication modules/accessories ranging from 5G/LTE, WLAN, UPS, Untethered Dead Reckoning GPS, CAN Bus, and even Tyre Pressure Monitoring (TPMS) that can be installed into your device. Contact our team today if you need assistance finding a railway PC that best suits your requirements.

Railway Computers (EN50155)

21 Items

Set Descending Direction
  1. ATC3750-IP7-WI8MR NVIDIA Jetson AGX Orin Edge AI Computer
    ATC3750-IP7-WI8MR NVIDIA Jetson AGX Orin Edge AI Computer

    NVIDIA Jetson AGX Orin Edge AI Computer for Rail

    Key Features:

    • Built-in NVIDIA® Jetson AGX Orin™ SOM, up to 200/275 TOPS (INT8)
    • Designed to be IP67-rated, rugged, and compact
    • 8 MIPI/GMSL2 & 2.5GbE (X-coded) for MIPI CAM/IP CAM/LiDAR
    • HEVC/H.265 hardware DECODE, supporting up to 7 x 4K30
    • Wide range operating temperature of -25°C~70°C
    • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
    • Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
    • 24~110VDC w/ isolation, ignition control & OCP/OVP
    • NEXCOM Acceleration Linux (NAL) integrated w/ JetPack 5.1.1
    • Military standard of MIL-STD-810H for anti-vibration/shock
    • CE/FCC, UKCA, EN50155 (EN55011, EN50121-3-2, EN61373, OT3), EN45545-2 certified
  2. ATC3750-IP7-8M NVIDIA Jetson AGX Orin Edge AI Computer
    ATC3750-IP7-8M NVIDIA Jetson AGX Orin Edge AI Computer

    NVIDIA Jetson AGX Orin Solution Performance Edge AI Computer for Rail

    Key Features:

    • Built-in NVIDIA Jetson AGX Orin SOM, up to 200/275 TOPS (INT8) performance

    • Designed to be IP67-rated, rugged, and compact

    • 8 MIPI/GMSL2 & 2.5GbE (X-coded) for MIPI CAM/IP CAM/LiDAR sensors

    • HEVC/H.265 hardware DECODE, supporting up to 7 x 4K30

    • Wide range operating temperature of -25°C~70°C

    • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity

    • Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6

    • 9~36VDC & 24V rail combined, ignition control & OCP/OVP

    • NEXCOM Acceleration Linux (NAL) integrated w/ JetPack 5.1.1

    • Military standard of MIL-STD-810H for anti-vibration/shock

    • CE/FCC, UKCA, E-mark, EN50155 (EN55011, EN50121-3-2, EN61373, OT3) certified

  3. ATC3520-IP7-4C/AI4CR NVIDIA Jetson Orin Nano
    ATC3520-IP7-4C/AI4CR NVIDIA Jetson Orin Nano

    Discover the ATC3520-IP7-4C/AI4CR: Your Edge AI computing solution with NVIDIA Jetson Orin Nano, IP67 design, and certifications for industrial needs.

    Key Features:

    • Edge AI in-vehicle/rail computer
    • Built-in NVIDIA Jetson Orin Nano SOM, up to 40(sparse) INT8 TOPS
    • 4-Port GbE PoE+ for IP CAM/LiDAR sensors
    • HEVC/H.265 hardware CODEC, 11x 1080p30 compute power (decoded)
    • Wide range operating temperature of -30~70°C
    • Rugged, fanless design with an IP67 rating
    • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
    • NEXCOM Acceleration Linux (NAL) OS w/ JetPack 5.1.1 integrated
    • Expansible for LTE/5G NR & Wi-Fi 5/6
    • 9~36V DC-in with ignition control & OCP/OVP
    • CE/FCC, UKCA, Emark/EN50155 certified
  4. nROK7271 Fanless Vehicle PC 12/13th Gen CPU
    nROK7271 Fanless Vehicle PC 12/13th Gen CPU

    Introducing nROK 7271 (Preliminary): A fanless, rugged rolling stock computer with 12/13th Gen Intel® Core™ CPU, DDR5, 5G/Wi-Fi, and PoE support, designed for industrial computing.

    Key Features:

    • Powered by 12/13th Gen Intel® Core™ CPU
    • Fanless, compact and rugged design
    • Designed with DDR5, excellent memory bandwidth, lower latency
    • 2 x 2.5” SSD for data integrity (compatible with 15mm disk)
    • 5G/Wi-Fi, PoE, 10GbE, daughter board expansion support
    • 4 x Independent 10/100/1000/2500 Mbps PoE 802.3af/at, total 60W (nROK 7271-WIC4) / 30W (nROK 7271-WIC4-C8S)
    • Additional 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3af/at, max. 30W (nROK7271-WIC4-C8S)
    • EN 50155, class OT3 conformity
    • Wide voltage input 24~110VDC (w/ isolation)
    • Optional up to 3-sec protection against temporary voltage dips
  5. nROK7270 Fanless Vehicle PC 12/13th Gen CPU
    nROK7270 Fanless Vehicle PC 12/13th Gen CPU

    Introducing the nROK 7270: a fanless rolling stock computer with a powerful Intel Core CPU, DDR5 memory, 5G/Wi-Fi, PoE support, and military-standard durability.

    Key Features:

    • Powered by 12/13th Gen Intel Core CPU

    • Fanless, compact and rugged design

    • Designed with DDR5, excellent memory bandwidth, lower latency

    • 2 x 2.5” SSD for data integrity (compatible with 15mm disk)

    • 5G/Wi-Fi, PoE, 10GbE, daughter board expansion support

    • Two video outputs, one VGA and one HDMI

    • 4 x Independent 10/100/1000/2500 Mbps PoE 802.3 af/at, total 60W (nROK 7270-AC4/nROK 7270-AC4-C8S)

    • Additional 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3af/at, max. 60W (nROK 7270-AC4-C8S)

    • Military standard for anti-vibration/shock

    • EN 50155, class OT3 conformity

  6. ATC3540 NVIDIA Jetson Orin NXEdge AI Computer
    ATC3540 NVIDIA Jetson Orin NXEdge AI Computer

    NVIDIA Jetson Orin NX Solution Accelerated Edge AI Computing

    Key Features:

    • Edge AI in-vehicle/rail computer
    • Built-in NVIDIA® Jetson Orin™ NX SOM, up to 100 INT8 TOPS compute
    • 4-port GbE PoE+ for IP CAM/LiDAR sensors
    • HEVC/H.265 hardware CODEC, 18 x 1080p30 compute power (decoded)
    • Wide range operating temperature of -30~70°C
    • The rugged, fanless design with an IP67 rating
    • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
    • NEXCOM Acceleration Linux (NAL) OS w/ JetPack 5.1.1 integrated
    • Expansible for LTE/5G NR & Wi-Fi 5/6
    • 9~36V DC-in with ignition control & OCP/OVP
    • CE/FCC, UKCA, Emark/EN50155 certified
  7. ATC3750-A6CR NVIDIA Jetson AGX Orin Edge AI Computer
    ATC3750-A6CR NVIDIA Jetson AGX Orin Edge AI Computer

    NVIDIA Jetson AGX Orin Solution Performance Edge AI Computing for Rail

    Key Features:

    • Built-in NVIDIA® Jetson AGX Orin™ SOM, up to 200/275 TOPS (INT8) performance
    • Designed with rugged, compact and hybrid cooling solutions
    • 6-port GbE PoE+ (X-coded) for IP CAM/LiDAR sensors, optional 1-port 10GbE (X-coded)
    • HEVC/H.265 hardware DECODE up to 7 x 4K30 performance
    • Wide range operating temperature of -20°C~70°C
    • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
    • Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
    • 24V DC-IN for rail, ignition control & OCP/OVP
    • NEXCOM Acceleration Linux (NAL) integrated w/ JetPack 5.1.1
    • Military standard of MIL-STD-810H for anti-vibration/shock
    • CE/FCC, UKCA, EN50155 (EN55011, EN50121-3-2, EN61373, OT4) Certified
  8. UST500-517-FL Fanless Embedded System 7th/6th Gen
    UST500-517-FL Fanless Embedded System 7th/6th Gen

    Fanless Embedded System with 7th/6th Gen Intel Core, Pentium and Celeron Processor

    Key Features:

    • CE, FCC, E-Mark, EN 50155 and EN 45545-2 certified
    • LGA1151 7th/6th gen Intel® Core™ & Pentium® processors (up to 65W) with Intel® Q170 (Kaby Lake/Skylake)
    • Fanless and Wide operating temperatures from -40°C to +70°C
    • Flexible LAN selection, up to 16 RJ-45 GbE PoE LAN ports
    • 24 VDC power input
    • Intelligent solution of vehicle power management (ACC ignition)
    • Convenient and Accessible Storage, two/four 2.5” SATA drive, 1 mSATA
  9. nROK1031/1031-C2 Atom Fanless Rail Computer
    nROK1031/1031-C2 Atom Fanless Rail Computer

    Intel Atom 6413E Processor Fanless Rolling Stock Computer

    Key Features:

    • Intel Atom x6413E quad-core processor, 9W
    • Compact and fanless design
    • 5G NR and Wi-Fi 6/6E wireless communication options
    • Built-in U-Blox M9N GNSS
    • Built-in 1 x CAN bus 2.0B (optional SAE J1939)
    • 1 x mini-PCIe + 2 x M.2 socket expansions
    • 2 x POE support, total 60W (nROK 1031-C2)
    • Dual display outputs
    • Optional AI accelerator M.2/mPCIe module
    • Certified by CE/UKCA/FCC/EN 50155

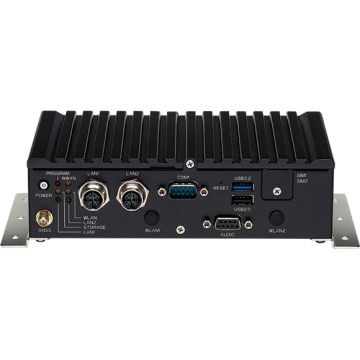

  10. nROK1030 Atom x6211E Dual-Core Fanless Rolling Stock Computer
    nROK1030 Atom x6211E Dual-Core Fanless Rolling Stock Computer

    Intel Atom x6211E Dual-Core Processor Fanless Rolling Stock Computer

    Key Features:

    • Intel Atom x6211E dual-core processor, 6W
    • Compact and fanless design
    • 5G NR and Wi-Fi 6/6E wireless communication options
    • Built-in GNSS receiver with optional dead reckoning function
    • Built-in 1 x CAN bus 2.0B (optional SAE J1939)
    • Smart power management with ignition on/off delay via software control and low voltage protection
    • Dual display outputs and 2.5GbE LAN ports
    • 1 x mini-PCIe + 2 x M.2 socket expansion
    • Certified by CE, FCC, EN 50155 class OT4
  11. UST510-52B-FL Fanless Embedded System 9th/8th Gen i7/i5/i3/Celeron/Pentium/Xeon
    UST510-52B-FL Fanless Embedded System 9th/8th Gen i7/i5/i3/Celeron/Pentium/Xeon

    Fanless Embedded System with LGA1151 9th/8th Gen Intel Core i7/i5/i3, Celeron, Pentium, and Xeon Processor

    Key Features:

    • CE, FCC and E-Mark certified
    • LGA1151 9th/8th Gen Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (up to 65W) with Intel C246
    • Fanless and Wide operating temperatures from -40°C to +70°C
    • Up to 8/16 GbE PoE port by M12/RJ-45 connector type; none PoE port LAN by RJ45 connector
    • Supports M.2 Key B and M.2 Key E for wireless communication module
    • Intelligent solution of Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
    • Convenient swappable HDD/SSD slots and flexible I/O windows
  12. aROK5510 - EN50155 2U 8/9th Gen CPU Rail Server
    aROK5510 - EN50155 2U 8/9th Gen CPU Rail Server

    Intel Core 8/9th Gen/Xeon CPU with Rich Storage Powerful Platform for AI Application and Storage Server

    Key Features:

    • Intel Coffee Lake S/Refresh 8th/9th-Gen Core/Xeon LGA1151 socket-type CPU
    • 100W power consumption graphics card support
    • Eight SIM cards + four WWAN modules support
    • LTE/5G WWAN module support
    • 6 x External SSD for RAID 0, 1, 5, 10
    • PCle 3.0 x4 NVMe 1.3 high-performance SSD support
    • EN 50155, class OT4 conformity
    • 3 x mini-PCIe + 3 x M.2 socket expansion
    • Smart fan design with temperature-based RPMs
    • Optional expansion module for 4 x PoE M12 or 2 x 10GbE SFP+
    • Rackmount platform
  13. nROK6222-GCIoT Google Cloud AI Edge Rolling Stock Solution
    nROK6222-GCIoT Google Cloud AI Edge Rolling Stock Solution

    Google Cloud AI Edge Rolling Stock Solution with Intel Atom E3950

    Key Features:

    • Built-in Google Edge TPU ML accelerator coprocessor
    • Intel Atom processor quad-core E3950, up to 2.0GHz
    • 4 x PoE (802.3af/at, max. 60W)
    • Built-in u-blox-M8N GPS
    • Three video outputs, one VGA and two HDMI
    • EN50155 conformity
    • 3 x mini-PCIe socket expansion
    • Dual external storage (compatible with 15mm disk)
    • 1 x USB DOM to run OS
    • 1 x SD card for exporting and backing up data
    • Optional power isolation kit support
  14. nROk6231 Atom Fanless Vehicle Rail Computer
    nROk6231 Atom Fanless Vehicle Rail Computer

    Intel Atom x7433RE Fanless Rolling Stock Computer with EN50155

    Key Features:

    • Intel Atom processor quad-core x7433RE, 1.5GHz

    • Eight SIM cards + four WWAN modules support

    • Built-in u-blox-M9N GPS

    • Built-in CAN FD

    • 1 x External storage (compatible with 15mm disk)

    • EN 50155, class OT4 conformity

    • 3 x M.2 + 2 x mPCIe socket expansion

    • Wide voltage input 24 VDC

    • 1 x DB9 for 1 x Mic-in, 1 x Line-out, 1 x Line-In

    • Three video outputs, VGA, HDMI, and DP

per page

Tekdis offers custom built solutions for your application

Tell us what you need
