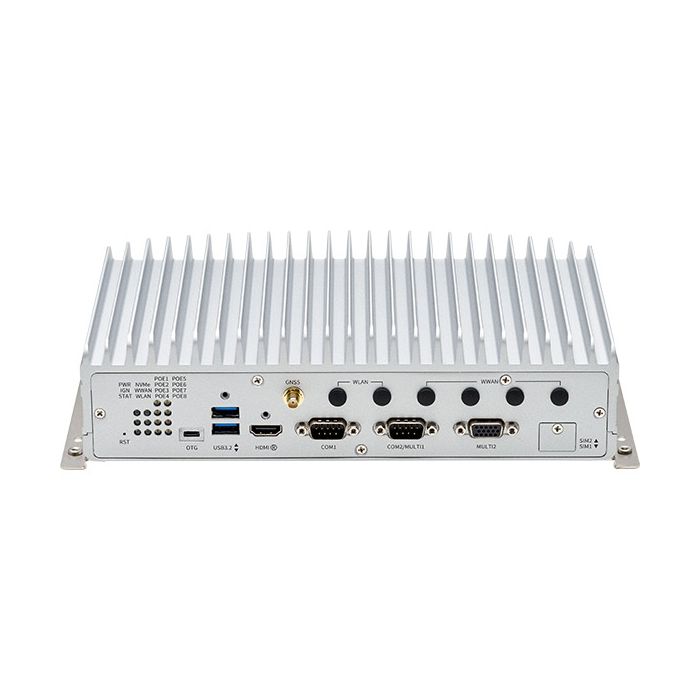

ATC3563-NX8C/NXA8CR NVIDIA Jetson Orin NX Edge AI Computer
NVIDIA Jetson Orin NX Solution Accelerated Edge AI Computer
Key Features:
- Built-in NVIDIA Jetson Orin™ NX SoM, up to 157 INT8 Sparse TOPS AI performance in Super Mode
- Rugged, compact with a fanless design
- 8 x GbE PoE+ (120W in total) for IP CAM & LiDAR sensors
- HEVC/H.265 hardware decode, supports up to 11 x 1080p@30fps
- Wide range operating temperature of -25°C~60°C (fanless in Super mode)
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
- Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
- DC 9V~36V/24V rail with ignition control and OCP/OVP
- NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
- Military standard of MIL-STD-810H for anti-vibration/shock
- CE/FCC UKCA, E-mark, EN 50155 & EN 45545-2 certified
Description
Product Overview
The NEXCOM ATC 3563-NX8C/NXA8CR is a high-performance edge-AI telematics computer engineered for heavy-duty railway, vehicle and rolling-stock environments. Powered by the NVIDIA Jetson Orin NX system-on-module, it delivers up to 157 INT8 Sparse TOPS of AI inference performance in Super Mode. With eight Gigabit Ethernet PoE+ ports (total PoE budget of 120 W) for connection to IP cameras, LiDAR sensors and other devices, it offers real-world readiness for intelligent transportation, autonomous mobile robots (AMR), machine vision and fleet-wide telematics.
The system is designed with a wide-range DC power input (9 V‒36 V or 24-V rail) featuring ignition control and protection circuits for in-vehicle/rail installations. Its rugged fanless design supports an operating temperature range of –25 °C to 60 °C, plus full compliance with shock/vibration and industrial-railway standards. With NVMe storage support, multiple expansion interfaces (M.2, miniPCIe), eight-port PoE, and broad I/O including HDMI, USB, CAN FD, RS-232, DI/DO, GNSS and 5G/WiFi options, it delivers an all-in-one AI edge platform for demanding transport infrastructure use.
Key Features
High Performance AI
-
NVIDIA Jetson Orin NX module with AI performance up to 117 TOPS (8 GB) or 157 TOPS (16 GB)
-
Hardware-accelerated H.265/H.264 multi-stream decoding for multi-camera video workloads
-
PCIe 4.0 x4 NVMe SSD support for high-speed data logging
-
Optimised for real-time inference, sensor fusion, and machine vision applications
Rugged and Reliable Design
-
Fanless, sealed construction suited for transport and heavy-duty industrial use
-
Operating temperature range from –25 °C to 60 °C
-
Designed to meet MIL-STD-810H vibration and shock requirements
-
Compact form factor for vehicle, cabinet or rail-mount integration
Power and Connectivity
-
Wide DC input range from 9 V to 36 V with ignition control
-
Eight Gigabit Ethernet PoE+ ports
-
ATC 3563-NX8C: RJ45 ports
-
ATC 3563-NXA8CR: M12 X-coded ports
-
-
Total PoE power budget of up to 120 W
-
Additional I/O including USB 3.2, micro-USB OTG, HDMI 2.0, RS-232, DI/DO, CAN FD and dual nano-SIM
-
PTP and jumbo-frame support for synchronised multi-camera systems
Wireless Expansion
-
Supports LTE, 5G NR and Wi-Fi 5/6 modules through M.2 and mini-PCIe slots
-
Dual SIM design enables carrier redundancy and reliable mobile connectivity
-
M.2 Key M slot for NVMe SSD expansion
Certifications and Compliance
-
CE, FCC Class A, UKCA and E-Mark compliant
-
Railway-ready with EN 50155 and EN 45545-2 options
-
Built to meet the environmental, EMC and safety requirements of mobile and rail deployments
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
ATC 3563-NX8C (P/N: 10AT0356300X0)
Edge AI computer, NVIDIA Jetson Orin™ NX 8GB, Super Mode, 128GB NVMe, 8 x PoE+, 2 x RS-232, 2 x USB 3.2, DC 9V~36V
ATC 3563-NX8C-16 (P/N: 10AT0356301X0)
Edge AI computer, NVIDIA Jetson Orin™ NX 16GB, Super Mode, 128GB NVMe, 8 x PoE+, 2 x RS-232, 2 x USB 3.2, DC 9V~36V
ATC 3563-NXA8CR (P/N: 10AT0356302X0)
Edge AI computer, NVIDIA Jetson Orin™ NX 8GB, Super Mode, 128GB NVMe, 8 x X-coded PoE+, 2 x RS-232, 2 x USB 3.2, DC 24V rail
ATC 3563-NXA8CR-16 (P/N: 10AT0356305X0)
Edge AI computer, NVIDIA Jetson Orin™ NX 16GB, Super Mode, 128GB NVMe, 8 x X-coded PoE+, 2 x RS-232, 2 x USB 3.2, DC 24V rail
