ATC3563: Edge AI Performance Designed for Safety and Intelligence in Vehicles

In modern construction, vehicles are evolving into intelligent machines that manage data, automate tasks, and make real-time decisions on the jobsite. Edge AI computers now serve as the core processing platform for cranes, excavators, and heavy-duty vehicles, handling visual analytics, equipment monitoring, and rapid operational responses that enhance safety and productivity. They also integrate with systems such as load monitoring and precision control to support higher accuracy in day-to-day tasks. Designed for these demanding construction applications, the new NEXCOM ATC3563 series delivers strong real-time AI performance and robust connectivity that can transform how mobile machinery operates.

Rugged Edge Computing Built for Heavy-Duty Tasks

Construction sites expose hardware to heat, vibration, dust, and continuous use. The NEXCOM ATC 3563 is engineered specifically for these conditions. Its compact fanless enclosure meets MIL STD 810H shock and vibration standards and operates from minus 25 to 60 degrees Celsius, making it suitable for harsh and unpredictable environments.

The ATC 3563 NX8C and NXA8CR models feature the NVIDIA Jetson Orin NX platform in Super Mode with up to 157 TOPS of AI inference performance for rapid visual recognition and real-time decision making. The ATC 3563 NA8C 8 and NAA8CR 8 variants with Jetson Orin Nano in Super Mode deliver up to 67 TOPS. This blend of rugged design and high-performance computing allows cranes and mobile equipment to run safety checks, detect nearby personnel, and process multi-camera inputs instantly across complex and busy worksites.

Powerful network vision with multiple PoE ports

Modern construction equipment relies heavily on multi-camera visibility to maintain safe and precise operation. The NEXCOM ATC 3563 supports eight GbE PoE Plus ports through RJ45 or M12 X-coded connectors, allowing cameras to be powered directly without external injectors. Operators can manage up to eight high-definition video streams to create full 360-degree visibility around cranes and vehicles. This wide-angle awareness reduces blind spots, improves precision lifting, and lowers the risk of collisions with structures, equipment, or workers.

With PCIe 4.0 x4 NVMe SSD storage, USB 3.2, and CAN bus connectivity, the ATC 3563 supports advanced analytics, including object detection, load monitoring, and movement prediction. These capabilities help operators make informed, real-time decisions that improve efficiency and jobsite safety.

Seamless power and connectivity for mobile equipment

The NEXCOM ATC 3563 accepts DC 9 to 36 volt input with ignition control and OCP and OVP protection, allowing smooth integration into vehicle power systems. Optional 5G NR, LTE, and Wi Fi 5 or Wi Fi 6 modules provide reliable communication for remote management, predictive maintenance, and system updates, even on moving platforms or remote construction sites.

This level of adaptability makes the ATC 3563 a strong fit for crane automation, fleet safety solutions, and intelligent construction management, where reliability, uptime, and safety cannot be compromised.

For further product information, please contact our sales team: here

Main Features

• NVIDIA Jetson Orin NX 8 GB or 16 GB, up to 157 TOPS in Super Mode (ATC 3563 NX8C or NXA8CR) or NVIDIA Jetson Orin Nano 8 GB, up to 67 TOPS in Super Mode (ATC 3563 NA8C 8 or NAA8CR 8)
• Rugged, compact, fanless enclosure
• 8 GbE PoE Plus ports for IP cameras and lidar
• HEVC H.265 hardware decoding, supports 11 streams of 1080p at 30 fps
• Operating temperature from minus 25 to 60 degrees Celsius
• PCIe 4.0 x4 NVMe SSD for high speed data capture
• Expansion options for GNSS, LTE, 5G NR, Wi Fi 5 and Wi Fi 6
• DC 9 to 36 V or 24 V rail with ignition control and OCP or OVP protection
• NEXCOM Acceleration Linux with JetPack 6.2
• Certified for MIL STD 810H, CE, FCC, UKCA, E mark, EN 50155, and EN 45545 2



Ordering Information

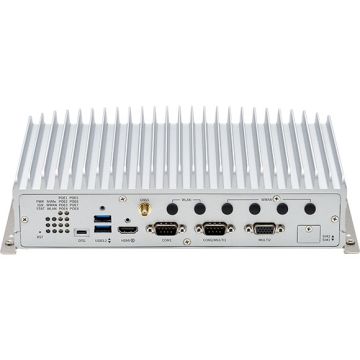

ATC3563-NX8C (P/N: 10AT0356300X0)
NEXCOM edge AI computer, NVIDIA Jetson Orin NX 8 GB, Super Mode, 128 GB NVMe, 8 PoE Plus, 2 RS 232, 2 USB 3.2, DC 9 to 36 V

ATC3563-NX8C-16 (P/N: 10AT0356301X0)
NEXCOM edge AI computer, NVIDIA Jetson Orin NX 16 GB, Super Mode, 128 GB NVMe, 8 PoE Plus, 2 RS 232, 2 USB 3.2, DC 9 to 36 V

ATC3563-NXA8CR (P/N: 10AT0356302X0)
NEXCOM edge AI computer, NVIDIA Jetson Orin NX 8 GB, Super Mode, 128 GB NVMe, 8 X coded PoE Plus, 2 RS 232, 2 USB 3.2, DC 24 V rail

ATC3563-NXA8CR-16 (P/N: 10AT0356305X0)
NEXCOM edge AI computer, NVIDIA Jetson Orin NX 16 GB, Super Mode, 128 GB NVMe, 8 X coded PoE Plus, 2 RS 232, 2 USB 3.2, DC 24 V rail

ATC3563-NA8C-8 (P/N: 10AT0356303X0)
NEXCOM edge AI computer, NVIDIA Jetson Orin Nano 8 GB, Super Mode, 128 GB NVMe, 8 PoE Plus, 2 RS 232, 2 USB 3.2, DC 9 to 36 V

ATC3563-NAA8CR-8 (P/N: 10AT0356304X0)
NEXCOM edge AI computer, NVIDIA Jetson Orin Nano 8 GB, Super Mode, 128 GB NVMe, 8 X coded PoE Plus, 2 RS 232, 2 USB 3.2, DC 24 V rail
