ATC3563-NA8C/NAA8CR NVIDIA Jetson Orin Nano Edge AI Computer
NVIDIA Jetson Orin Nano™ Solution Accelerated Edge AI Computer
Key Features:
- Built-in NVIDIA Jetson Orin Nano™ SoM, up to 67 INT8 Sparse TOPS AI performance in Super Mode
- Rugged, compact with a fanless design
- 8 x GbE PoE+ (120W in total) for IP CAM & LiDAR sensors
- HEVC/H.265 hardware decode, supports up to 11 x 1080p@30fps
- Wide range operating temperature of -25°C~60°C (fanless in Super mode)
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
- Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
- DC 9V~36V/24V rail with ignition control and OCP/OVP
- NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
- Military standard of MIL-STD-810H for anti-vibration/shock
- CE/FCC UKCA, E-mark, EN 50155 & EN 45545-2 certified
Description
Product Overview

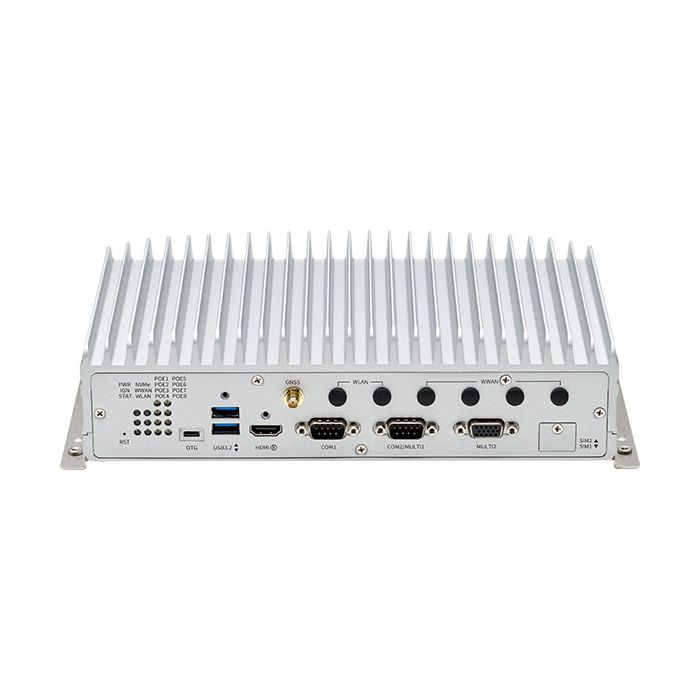

The NEXCOM ATC 3563-NA8C / NAA8CR is a rugged, fanless edge-AI telematics computer built around the NVIDIA Jetson Orin Nano platform. It delivers up to 67 INT8 Sparse TOPS AI inference performance in Super Mode, making it well-suited for intelligent transportation, rail, fleet video analytics, real-time video surveillance, ADAS, autonomous mobile robots, smart transit systems and other edge AI tasks. The system supports eight Gigabit Ethernet PoE+ ports, a wide-range DC power input with ignition control, and an IP-rated chassis, enabling deployment in vehicles, railcars, construction, or industrial mobile environments. Its design supports harsh conditions, high reliability and continuous operation under demanding workloads.
Key Features
AI & Edge Computing Performance
-
NVIDIA Jetson Orin Nano system-on-module offering up to 67 TOPS inference performance
-
Hardware-accelerated video decoding supporting multiple camera streams (HEVC/H.265)
-
NVMe SSD storage via PCIe 4.0 x4 slot for fast data logging and AI model handling
-
Suitable for real-time video analytics, object detection, sensor fusion, and multi-camera processing
Rugged, Mobile-Ready Design
-
Fanless and compact chassis for reliability and minimal maintenance
-
Operating temperature range from –25 °C to 60 °C in Super Mode, supporting harsh environmental conditions
-
MIL-STD-810H compliant for vibration and shock resistance — suitable for vehicle or rail applications
-
Sealed enclosure and robust mechanical build for durability in mobile or outdoor deployments
Power Input & Network + Sensor Integration
-
Wide DC input voltage range (9 V to 36 V or 24 V rail) with ignition control and overcurrent/overvoltage protection — compatible with vehicle and rail power systems
-
Eight 1 GbE PoE+ ports, delivering power and network over a single cable — ideal for IP cameras, LiDAR sensors or other powered devices
-
Rich I/O including USB 3.2, isolated CAN bus, serial interface (RS-232), DI/DO, console port, HDMI, OTG for display or control, and dual nano-SIM for cellular redundancy
-
Combinable with optional modules for GNSS, LTE/5G NR, Wi-Fi 5/6 for connectivity, telemetry and remote management
Certifications & Compliance for Transport Use
-
Designed for in-vehicle, rail and transport environments with compliant power, shock, vibration and environmental resistance
-
Supports railway-grade power and mounting standards for integration in rolling stock, fleet vehicles, mobile machinery, or transport infrastructure
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
ATC 3563-NA8C-8 (P/N: 10AT0356303X0)
Edge AI computer, NVIDIA Jetson Orin Nano™ 8GB, Super Mode, 128GB NVMe, 8 x PoE+, 2 x RS-232, 2 x USB 3.2, DC 9V~36V
ATC 3563-NAA8CR-8 (P/N: 10AT0356304X0)
Edge AI computer, NVIDIA Jetson Orin Nano™ 8GB, Super Mode, 128GB NVMe, 8 x X-coded PoE+, 2 x RS-232, 2 x USB 3.2, DC 24V rail
