Vehicle Mount & Railway Displays
Vehicle displays are designed to meet the harsh environment of vehicle and rail based applications. High brightness displays and either resistive of PCAP technology along with various video interfaces are available. The Ultraone models allow connection via a single cable carrying video, power, audio and USB which simplifies the installation in vehicles. Rail displays meet EN50155 certification and wide input voltage and operating temperature conditions. Tekdis supplies vehicle displays from Nexcom and rail display from Axiomtek. If you need assistance to find a vehicle display that best suits your requirements, get in touch with our team today.
-
P710 10.4" XGA TFT LCD Railway Touchscreen Monitor
10.4" XGA TFT LCD Railway Touchscreen Monitor (-25°C to +55°C)
-
P712 12.1" XGA TFT LCD Railway Touchscreen Monitor
12.1" XGA TFT LCD Railway Touchscreen Monitor (-25°C to +55°C) with 24 to 110 VDC power input
Key Features:
- EN 50155 and EN 45545-2 certified railway monitor
- 12.1" high brightness XGA TFT touchscreen LCD
- Wide viewing angle and a high brightness of 600 nits
- Supports VGA, DVI-D, and HDMI
- Light sensor for auto-dimming
- Typical 24 to 110 VDC wide power input
- -25°C to +55°C wide temperature range
- Supports 5 OSD keys on the front bezel
-
P718O 18.5” FHD Open Frame Railway Monitor
18.5” Full HD open frame railway monitor with 24 to 110 VDC power input for passenger information system
Key Features:
- EN 50155 compliance
- 18.5" Full HD TFT LCD
- Wide viewing angle and high brightness of 500 nits
- HDMI, DVI-D, and VGA video inputs
- Wide power input range of 24 to 110 VDC
- Supports VESA mount (100 x 100 mm)
- -25°C to +55°C wide operating temperature range
- Supports 5 OSD keys
-
TEK-101 - 10.1" WXGA Sunlight Readable
10.1" WXGA TFT, VGA + 3 composite, resistive or capacitive multi-touch options, 400/800nits brightness, Auto light sensor, All-in-one cable
-
VMD1001 – 7” WVGA, 400nits w/touch RGB input
7” WVGA TFT, Touch, Light sensor, Webcam, Card Reader, All-in-one cable
-
VMD2000 - 8" Vehicle Display with Touch Screen and LVDS Interface
8" SVGA Vehicle Mount Display with Touch Screen and LVDS Interface
-

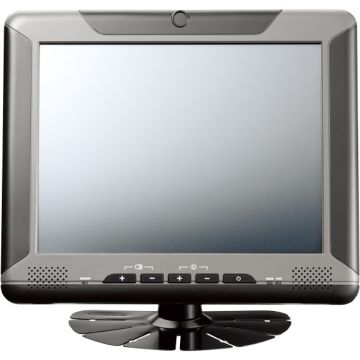

VMD2002 - 8" SVGA w/touch RGB input
8" SVGA TFT, Touch, Light sensor, Webcam, Card Reader, All-in-one cable
-
VMD2003 - 8" Vehicle Touch Display - single cable
8" SVGA Vehicle Mount Touch Display with Analog Camera and ultraONE+ Technology
-
VMD3002 10.4" Vehicle Touch Display
10.4" XGA Vehicle Mounted Display with Projected Capacitive Touch Screen, VGA and CVBS Interfaces
Key Features:
- 10.4" XGA TFT LCD panel
- Slim bezel and compact design
- Automatic/manual brightness control
- Wide range power input from 9~36VDC
- Projected capacitive touch screen with multi-touch
- Support four CVBS inputs to connect rear view camera
- High brightness display for outdoor applications
- Compliant with IP65
-
VMD3110 - 10.4" Vehicle Touch Display
10.4" XGA Vehicle Mounted Display with Projected Capacitive Touch Screen, ultraONE+ and CVBS Interfaces
-

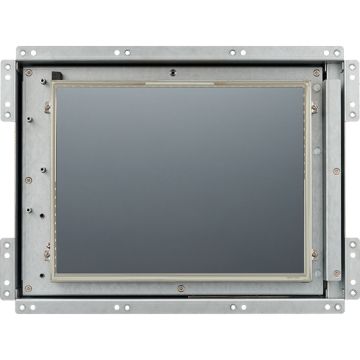

vROK 3030 10.4” Railway Open Frame Panel Computer
10.4” Railway Open Frame Panel Computer with Intel Atom x6414RE Processor

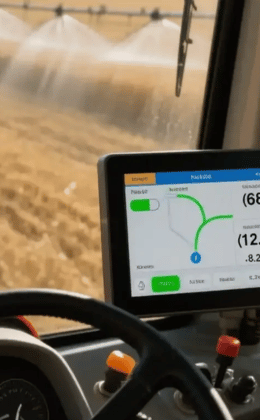

Vehicle Displays
Nexcom Vehicle Display have been designed specifically for the Automotive environment and pass rigorous tests for shock and vibration. Models are available from 7" to 12.1" size. Larger sizes are available on request.
All systems can fully configured & integrated to customer's specification including:
- High quality industrial grade display
- Choice of resistive or capacitive touchscreen
- On in all cable for easy vehicle install
- Integrated ambient light sensor
- Sunlight readable options on request
- Optional card reader and Webcam
To find out more about the solutions we offer, please contact our team directly.
