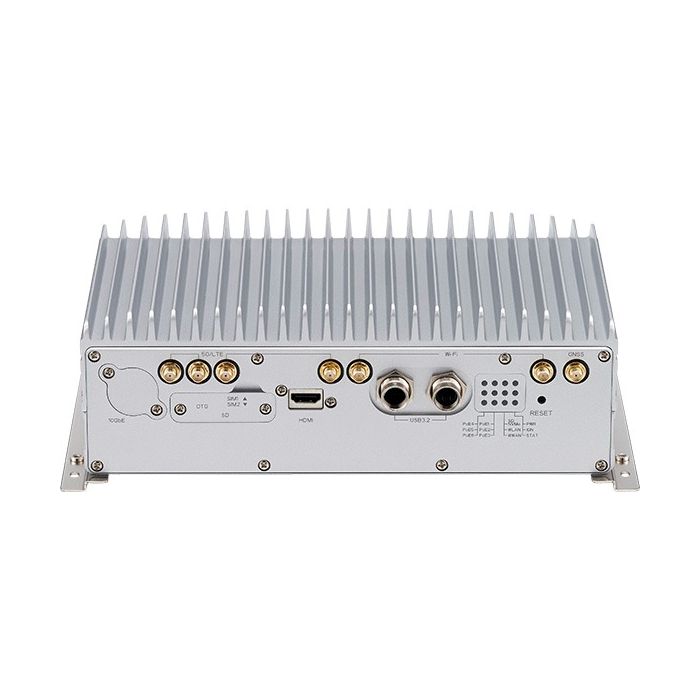

ATC3750-IP7-WI6CR NVIDIA Jetson AGX Orin Edge AI Computer
High Performance NVIDIA Jetson AGX Orin Edge AI Computer for Railway Applications
Key Features:
- Built-in NVIDIA® Jetson AGX Orin™ SOM, up to 200/275 INT8 Sparse TOPS AI performance
- Designed to be IP67 rated, rugged, and compact
- 6 x GbE PoE+ port for IP CAM/LiDAR sensors, optional 1 x 10GbE port
- HEVC/H.265 hardware decode, supports up to 7 x 4K30
- Wide range operating temperature of -25°C~70°C (OT3)
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
- Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
- DC 24V~110V with ignition control & OCP/OVP for Rail
- NEXCOM Acceleration Linux (NAL) integrated w/ JetPack 6.1
- Military standard of MIL-STD-810H for anti-vibration/shock
- CE/FCC, UKCA, EN 45545-2, EN 50155 (EN 50121-3-2, EN 61373,OT3) certified
Description
AI has become an essential component of automated vehicle technologies. With its built-in high-performance NVIDIA® Jetson AGX Orin™ SOM, the ATC 3750-IP7-WI6CR can deliver up to 200/275 TOPS workload on Artificial Intelligence (AI) processing and inference, supporting AI-aided transportation applications such as railway safety assurance, which can collaborate with existing ATP/ATO.
Thanks to NEXCOM's excellent thermal solutions, ATC 3750-IP7-WI6CR can work through its defined TDP (15W~60W) in harsh environments without a fan kit to achieve 200/275 TOPS workload performance.
The ATC 3750-IP7-WI6CR is an IP67-rated, rugged, compact-size rail AI-powered computer that features 24~110VDC with IGN control, 6 PoE+ and one optional 10GbE for accessing IP CAM/LiDAR sensors, and rich peripheral ports, USB 3.2, isolation CANBus, RS232, Console, DI/DO, OTG and HDMI. With the installation of 5G NR, Wi-Fi 5/6 modules, the ATC 3750-IP7-WI6CR can collaborate with CPS for AI model re-training, making it suitable for the deployment of sophisticated in railway/rolling stock applications. In harsh environments, the ATC 3750-IP7-WI6CR can operate at a wide temperature range of -25~70°C and meet the MIL-STD-810H military standard for anti-vibration and shock. For regulation, the ATC 3750-IP7- WI6CR is certified by CE/FCC Class A, UKCA and EN50155/EN45545-2.
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
ATC 3750-IP7-WI6CR (P/N: 10AT0375011X0)
NVIDIA® Jetson AGX Orin™ SOM, 32GB LPDDR5, 64GB eMMC, 6 x PoE+(X-coded), 2 x USB 3.2, 2 x RS232, OTG/Console, IP67, Rail, isolation 24~110Vdc
ATC 3750-IP7-WI6CR-64 (P/N: 10AT0375012X0)
NVIDIA® Jetson AGX Orin™ SOM, 64GB LPDDR5, 64GB eMMC, 6 x PoE+ (X-coded), 2 x USB 3.2, 2 x RS232, OTG/Console, IP67, Rail, isolation 24~110Vdc
