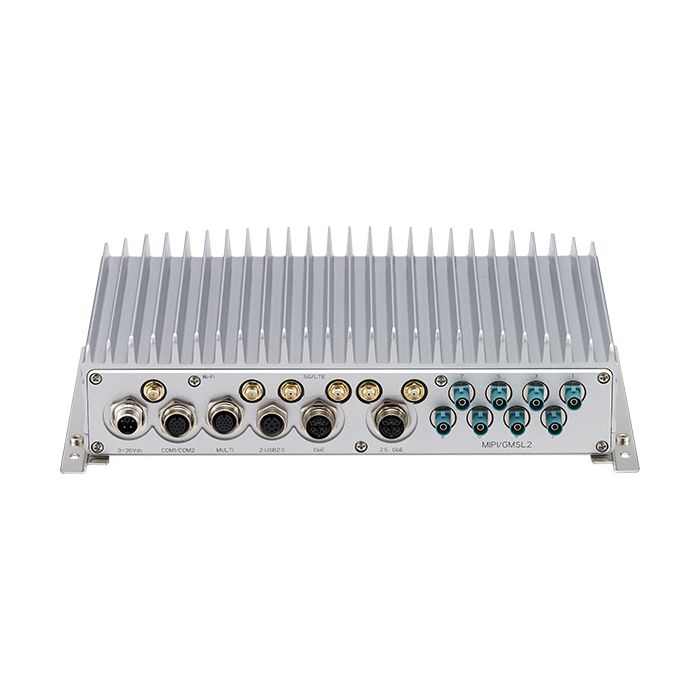

ATC3750-IP7-8M NVIDIA Jetson AGX Orin Edge AI Computer
NVIDIA Jetson AGX Orin Solution Performance Edge AI Computer for Rail
Key Features:
- Built-in NVIDIA Jetson AGX Orin SOM, up to 200/275 TOPS (INT8) performance
- Designed to be IP67-rated, rugged, and compact
- 8 MIPI/GMSL2 & 2.5GbE (X-coded) for MIPI CAM/IP CAM/LiDAR sensors
- HEVC/H.265 hardware DECODE, supporting up to 7 x 4K30
- Wide range operating temperature of -25°C~70°C
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
- Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
- 9~36VDC & 24V rail combined, ignition control & OCP/OVP
- NEXCOM Acceleration Linux (NAL) integrated w/ JetPack 5.1.1
- Military standard of MIL-STD-810H for anti-vibration/shock
- CE/FCC, UKCA, E-mark, EN50155 (EN55011, EN50121-3-2, EN61373, OT3) certified
Description
AI has become an increasingly important component of automated vehicle technologies. The ATC 3750-IP7-8M is an AI-powered computer that includes a high-performance NVIDIA® Jetson AGX™ Orin SOM, which can deliver up to 200/275 TOPS workload on Artificial Intelligence (AI) processing and inference. This makes the ATC 3750-IP7-8M suitable for a variety of applications such as ADAS in Transportation/Construction, ANPR, AMR, Machine Learning (ML), ITS, railway safety assurance, and factory automation.
Thanks to NEXCOM's excellent thermal solutions, the ATC 3750-IP7-8M can work in harsh environments without a fan kit to achieve 200/275 TOPS workload performance while staying within its defined TDP range of 15W~60W.
The ATC 3750-IP7-8M is a compact-sized, rugged, and IP67-rated in-vehicle/rail AI-powered computer. It features 9~36VDC/24VDC rail with IGN control, 8-ch MIPI/GMSL2 for accessing MIPI CAM/LiDAR sensors, and rich peripheral ports like GbE/2.5GbE, USB3.2, isolation CANBus, RS232, Console, DI/DO, OTG, and HDMI. With the installation of 5G NR, Wi-Fi 5/6 modules, the ATC 3750-IP7-8M can collaborate with CPS for AI model re-training, making it suitable for deployment in sophisticated applications such as ADAS/ANPR/AIaided ITS/Construction, etc.
The ATC 3750-IP7-8M can operate in harsh environments with a wide temperature range of -25~70°C and meets the MIL-STD-810H military standard for anti-vibration and shock. For regulation, the ATC 3750-IP7-8M is certified by CE/FCC Class A, UKCA, E-mark, and EN50155.
