ATC3562-IP7-NX4MF NVIDIA Jetson Orin NX Edge AI Computer
NVIDIA® Jetson Orin™ NX Solution Accelerated Edge AI Computer
Key Features:
- Built-in NVIDIA Jetson Orin NX 8/16GB SoM, up to 157 TOPS in Super Mode
- Rugged, fanless/fan kit design with a full IP67 rating
- 4-CH GMSL2 & 2 x GbE for camera & LiDAR sensors
- HEVC/H.265 hardware decode, supports up to 11 x 1080p@30Hz
- Wide range operating temperature of -25°C~65°C (w/ fan kit in Super Mode)
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
- Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
- DC 9V~36V & 24V rail combined, ignition control and OCP/OVP
- NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
- Military standard of MIL-STD-810H for anti-vibration/shock
- CE/FCC UKCA, E-mark, EN 50155 & EN 45545-2 certified
Description
Product Overview

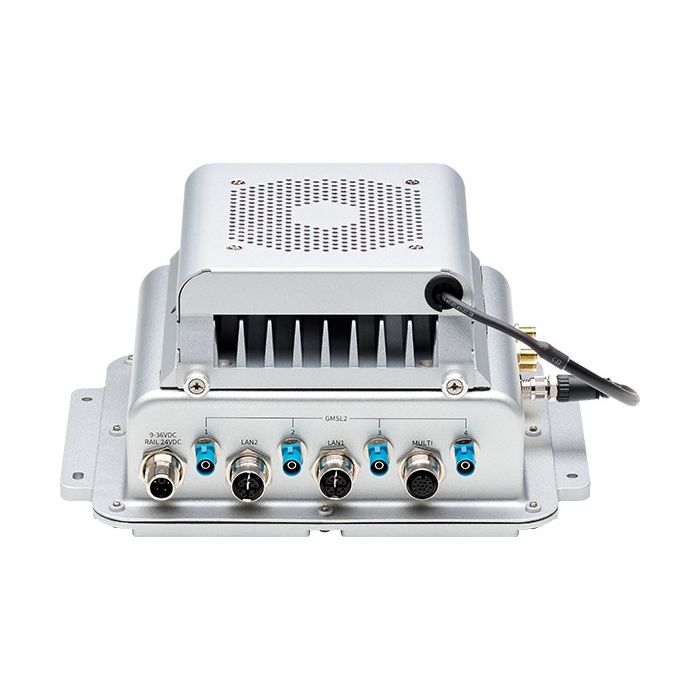

The NEXCOM ATC 3562 IP7 NX4MF is a rugged edge-AI telematics computer tailored for in-vehicle, rail, or industrial mobile use. It is powered by the NVIDIA Jetson Orin NX module and delivers up to 157 TOPS of AI inference performance (on the 16 GB version) or up to 117 TOPS on the 8 GB version. Designed with a fully sealed IP67 enclosure and vehicle-grade power input, it supports multi-camera, LiDAR, and sensor fusion workloads, making it ideal for advanced driver assistance systems, railway safety, video analytics, autonomous mobile robots, and real-time edge computing in demanding environments.
Key Features
High-Performance AI
-
NVIDIA Jetson Orin NX system-on-module delivers high AI performance for neural networks, object detection, video analytics and sensor fusion.
-
Supports HEVC/H.265 hardware decoding for multiple HD video streams — suitable for multi-camera setups and real-time video processing.
-
NVMe SSD storage via PCIe 4.0 x4 slot ensures fast data access, logging, and model loading — critical for AI workloads and data integrity under load.
Rugged Design & Environmental Readiness
-
Fully IP67-rated, fanless or fan-kit cooling design for protection against dust, water and harsh outdoor conditions.
-
Operating temperature range from –25 °C to 65 °C (with fan kit), suitable for demanding transport, rail, and outdoor environments.
-
Vibration and shock compliance under MIL-STD-810H standard — ensures reliable operation in vehicles or rail rolling stock.
Power and Connectivity
-
DC power input range 9 V to 36 V or 24 V rail, with ignition control and overcurrent/overvoltage protection — ideal for mobile deployments.
-
Four-channel GMSL2 interface plus two Gigabit Ethernet ports with PoE/PoE+ support for sensor, camera or LiDAR devices.
-
Provides power to IEEE 802.3af/at standard PoE devices and supports power management — simplifies integration of connected cameras and sensors.
-
Rich I/O: USB 3.2, isolated CAN bus, RS-232 serial port, console port, digital I/O (DI/DO), OTG and HDMI for local display or debugging.
Expansion & Connectivity Options
-
Expansion support for optional 5G NR, LTE, Wi-Fi 5/6 modules and GNSS for positioning and telematics connectivity.
-
Dual-SIM support for cellular redundancy, enabling reliable field connectivity for remote deployments.
Certifications & Compliance
-
Designed to meet transport and rail-specific requirements; compliant with EN 50155, EN 45545-2, CE/FCC, UKCA, E-mark standards.
-
Built to support long-term, real-world deployment in fleet vehicles, rail systems, field operations, and harsh industrial environments.
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
ATC 3562-IP7-NX4MF (P/N: 10AT0356202X0)
IP67 rating AI edge computer, NVIDIA® Jetson Orin™ NX 8GB, Super Mode, fan kit, 128GB NVMe, 4 x GMSL2, 2 x GbE, 1 x RS-232, 2 x USB 3.2, DC 9V~36V/24V rail
ATC 3562-IP7-NX4MF-16 (P/N: 10AT0356203X0)
IP67 rating AI edge computer, NVIDIA® Jetson Orin™ NX 16GB, Super Mode, fan kit, 128GB NVMe, 4 x GMSL2, 2 x GbE, 1 x RS-232, 2 x USB 3.2, DC 9V~36V/24V rail
