ATC3750-IP7-6C NVIDIA Jetson AGX Orin Edge AI Computer

In stock
SKU:
ATC3750-IP7-6C/6C-64
Brand: Nexcom

NVIDIA Jetson AGX Orin Solution for Performance Edge AI Computing

Key Features:

  • Built-in NVIDIA Jetson AGX Orin SOM, up to 200/275 TOPS (INT8) performance
  • Designed to be IP67-rated, rugged, and compact
  • 6-port GbE PoE+ for IP CAM/LiDAR sensors, optional 1-port 10GbE
  • HEVC/H.265 hardware DECODE, supporting up to 7 x 4K30
  • Wide range operating temperature of -25°C~70°C
  • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
  • Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
  • 9~36VDC & 24V rail combined, ignition control & OCP/OVP for In-vehicle/Rail
  • Military standard of MIL-STD-810H for anti-vibration/shock
  • CE/FCC, UKCA, E-mark, EN50155 (EN50121-3-2, EN61373, OT3) Certified

Enquire Now
Enquire about this product:

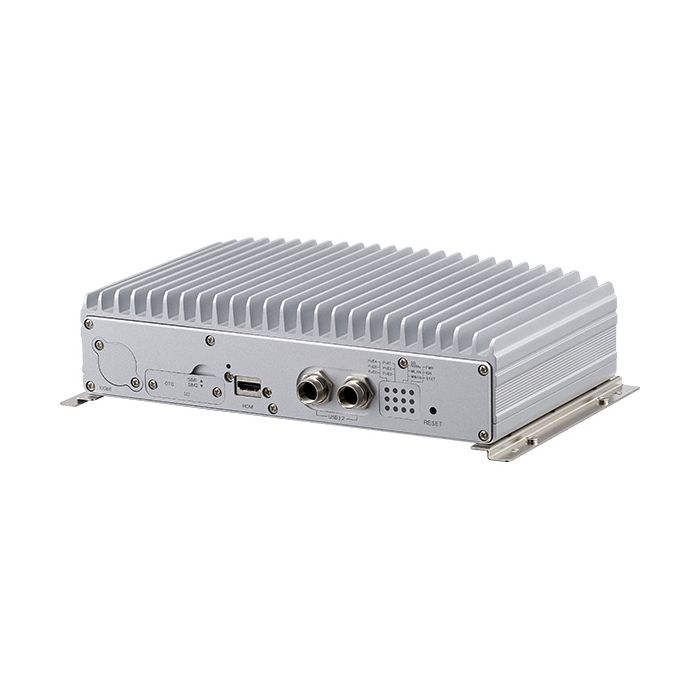

main product photo
We build to order

AI has become a crucial component of automated vehicle technologies. The ATC 3750-IP7-6C is a compact-sized, rugged, in-vehicle/rail AI-powered computer that features a high-performance NVIDIA® Jetson AGX™ Orin SOM. This computer can deliver up to 200/275 TOPS workload on Artificial Intelligence (AI) processing and inference, making it suitable for applications such as ADAS in Transportation/Construction, ANPR, AMR, Machine Learning (ML), ITS, railway safety assurance, and factory automation.

Thanks to NEXCOM's excellent thermal solutions, the ATC 3750-IP7-6C can operate through its defined TDP (15W~60W) in harsh environments without a fan kit, achieving 200/275 TOPS workload performance. The computer is IP67 rated and supports a wide temperature range of -25~70°C, meeting the MIL-STD-810H military standard for anti-vibration and shock.

The ATC 3750-IP7-6C features 9~36VDC/24VDC rail with IGN control, 6 PoE+ and one optional 10GbE for accessing IP CAM/LiDAR sensors, and rich peripheral ports, including USB 3.2, isolation CANBus, RS232, Console, DI/ DO, OTG, and HDMI. Additionally, with the installation of 5G NR, and Wi-Fi 5/6 modules, the ATC 3750-IP7-6C can collaborate with CPS for AI model re-training, making it suitable for deployment in sophisticated applications such as ADAS/ANPR/AI-aided ITS/Construction, etc.

For regulation purposes, the ATC 3750-IP7-6C is certified by CE/FCC Class A, UKCA, E-mark (E13), and EN50155.I-aided ITS/Construction, etc. In harsh environments, the ATC 3750-IP7-6C can operate at a wide temperature range of -25~70°C and meet the MIL-STD-810H military standard for anti-vibration and shock. For regulation, the ATC 3750-IP7-6C is certified by CE/FCC Class A, UKCA and, E-mark (E13) and EN50155.


This product is listed in Transport, Nexcom
Specifications

NVIDIA® Jetson AGX™ Orin SOM

  • 32GB 256-bit LPDDR5, 204.8 GB/s
    - 8 x cores | 2 Cortex-A78AE CPU clusters (4 cores/cluster), 2.2GHz
    - 1792 CUDA® cores, 56 Tensor cores, 108 Sparse TOPS, 939 MHz
    - 200 INT8 Sparse TOPS
    - 2 x NVDLA v2.0 engines: 1.4 GHz | 46 TOPS each (Sparse INT8)

  • 64 GB 256-bit LPDDR5, 204.8 GB/s
    - 12 x cores | 3 Cortex-A78AE CPU clusters (4 cores/cluster), 2.2GHz
    - 2048 CUDA® cores, 64 Tensor cores, 170 Sparse TOPS, 1.3GHz
    - 275 INT8 Sparse TOPS
    - 2 x NVDLA v2.0 engines: 1.6 GHz | 52.5 TOPS each (Sparse INT8)

  • Video Encode: 2 x 4K60 | 4 x 4K30 | 8 x 1080p60 (H.265)

  • Video Decode: 1 x 8K30 | 3 x 4K60 | 6 x 4K30 | 12 x 1080p60 (H.265)

  • OpenGL 4.6+, OpenGL ES 3.2, and Vulkan 1.2+, CUDA 10.2+

  • NVIDIA® JetPack 5.1.1

Storage

  • 64GB eMMC 5.1 flash storage, 200 MHz (HS400 or HS533)

  • 1 x Accessible SD card (SDXC-I/ UHS-I, SD3.0)

  • 1 x M.2 2280 Key M (PCIe4.0 x4), NVMe SSD

Expansion

  • 1 x Full size mPCIe socket (PCIe 4.0, USB 2.0)

  • 1 x M.2 3042/3052 Key B socket (USB 3.2/2.0), 2 x Nano SIM slots

  • 1 x M.2 3030 Key E socket (PCIe 4.0, USB 2.0) for Wi-Fi 5/6

Display

  • 1 x HDMI 2.0A/B, up to 3840 x 2160@60Hz, water-proof type

G-Sensor

  • 3D accelerometer and 3D gyroscope, ST LSM6DSLTR

PoE+

  • 6-port GbE, M12 X-coded connector
    - 9Kbyte Jumbo frame
    - IEEE 802.3af/at, total 80W
    - IEEE1588 supported
    - PSE ON/OFF & Watt monitoring
    - GIGA LAN SWITCH: KSZ9477STXI

USB

  • 2 x USB 3.2 Gen 2:
    - M12 X-coded connector
    - 5V@900mA each
    - Up to 10Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed)

  • 1 x OTG, micro-USB

Serial Port

  • 2 x RS232 (Tx, Rx, RTS, CTS)

  • 1 x Console (Tx, Rx)

  • RS232 working voltage, ±9V, baud rate up to 115.2kb/s

  • M17 A-coded connector

DI/DO (isolation)

  • 4-bit input
    - Source: 9~36VDC ([email protected]/[email protected])
    - External: 0~33VDC pull-high, high-level, 3.3 - 33 VDC; low-level, 0-2 VDC

  • 4-bit output
    - Source: 9~36VDC (nominal 35mA@24V)
    - External: 5~27VDC pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)

  • Source or external can be selected by software (default: source type)

CAN Bus

  • 2 2 x CAN FD, compatible with CAN2.0A/2.0B

  • IEC 61000-4-2 Electrostatic Discharge (ESD): ± 8KV/15KV (contact/air)

  • Up to 5Mb/s in data transmit, 2.5KV isolated

10GbE, M12 X-coded (optional)

  • Ethernet PHY: Marvell AQR113C-BO-I

  • 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX/10BASE-T

  • Compliant with IEEE 802.3az

  • 9Kbyte Jumbo frame

  • IEEE1588 supported

Watch Dog Timer

  • Yes, through MCU

Remote ATX PWR & Reset Trigger

  • Reserved, wafer-type

GNSS

  • u-blox NEO-M9N GNSS module for GPS/GLONASS/QZSS/Galileo/Beidou

  • Optional DR (Dead Reckoning) function, NEO-M9V

DC Power

  • 5V/2A, wafer type

Power Supply

  • Nominal voltage: 9~36V or 12Vdc non-isolation for rail

  • Cranking voltage: 6V~9V (less than 20 sec)

  • OCP & UVP (shut down once exceeding 37V)

  • Ignition on/off control & programmable on/off delay timer

  • Optional for remote power on/off control

I/O Ports, Front-Plate

  • 12 x LED Indicators

  • 2 x USB3.2, M12 X-coded

  • M12 X-coded for 10GbE (option)

  • 1 x water-proof HDMI

  • 2 x Nano SIMs, 1 x SD, 1 x OTG (a door to cover)

I/O Ports, Rear-Plate

  • 9~36Vdc/24Vdc non-isolate, K-coded

  • 6 x GbE PoE, X-coded

  • 1 x M17 A-coded (Multi-1): 2 x CANFD+4 x DI+4 x DO

  • 1 x M17 A-coded (Multi-2): 2 x RS232+ 1 x Console + remote PWR button/RESET + DR

  • 1x SMA for GNSS

  • 2X RP-SMA for Wi-Fi

  • 2x SMA for LTE/5G

Dimensions & Weight

  • 260.0mm x 172.8mm x 66.5mm (w/ mount bracket), weight: 3.5kg

Environment

  • Operating temperatures: -25°C~70°C (TDP 15W~60W, fanless, w/ 80W PoE)

  • Storage temperatures: -40°C~85°C

  • Relative humidity: 10%~95% (non-condensing)

Vibration & Shock

  • Vibration in operating:
    - MIL-STD-810H, 514.8C Procedure 6, Category 4
    - IEC 60068-2-64: 2.0g@5~500 Hz

  • Vibration in storage:
    - MIL-STD-810G, 514.6E Procedure 1, Category 24, 7.7g

  • Shock:
    - MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g
    - Crash hazard: Procedure V, ground equipment=75g

Certifications

  • CE approval, FCC Class A, UKCA, E13 Certified

Operating System

  • NEXCOM Aided Linux (NAL) w/ Jetpack 5.1.1 integrated

  • NEXCOM custom functions (GNSS, 5G/NR, 6-axis sensor, MCU control)

  • Ubuntu 20.04 (L4T 35.1, Linux Kernel 5.10)

External Cable (optional)

  • Multi-1 adapter cable, 15cm

  • Multi-2 adapter cable, 15cm

  • K-code power cable, 15cm

  • X-coded LAN adapter cable, 15cm

  • X-coded USB3.2 adapter cable, 15cm
