Small Form Factor PCs
Introducing the Small Form Factor PCs, also known as an SFF PCs. Designed with power and performance in mind, these compact computing systems are perfect for tight spaces. With high-performance graphic cards, robust cooling systems, and efficient processors, Tekdis UK offers Mini PCs with all the features and power of a larger desktop unit - but in a fraction of the size! Small Form Factor PC Systems are an ideal choice for home theater setups, gaming stations, digital signage applications, office workstations and industrial automation tasks. With sizes small enough to fit on most desktops, you can enjoy powerful computing options without sacrificing your room’s layout or décor. Get your Small Form Factor PC today and experience the same reliable performance that larger desktop units have to offer - without taking up too much space!
-
eBOX710-521-FL, 9th gen i series CPU, Intel C246Fanless Embedded System with LGA1151 Intel® Xeon®, 9th/8th Gen Intel® Core™ i7/i5/i3 & Intel® Celeron® Processor, Intel® C246, ECC Memory and 1 PCIe x4 Expansion Slot
eBOX565 - 8th gen i5/Celeron Fanless Compact8th gen i5/Celeron Fanless Compact, 142 x 106 x 73mm, 9~36VDC, 50°C

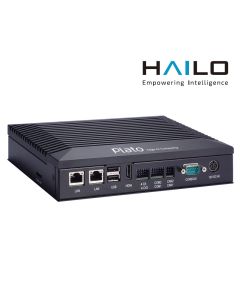

RSC100 ARM-based Fanless Edge AI PC w/ Hailo-8 Processor, HDMI, GbE LAN, COM, DIO, CANbusARM-based Fanless Edge AI Computer with Hailo-8 Processor, HDMI, GbE LAN, COM, DIO, CANbus

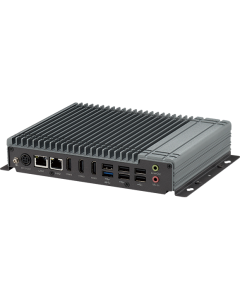

NDiS-B338 Fanless Embedded PC Celeron J6412Slim/fanless player with extended temperature durability, HDMI display, USB 3.0 ports, and a RS232/RS422/RS485 interface
Key Features:
- Intel Celeron J6412 processor
- Support 3 x HDMI 2.0 output
- Support 12V~24V DC input
- Compact and slim design (H: 38.8mm)
- 2 x DDR4 up to 32G
- 1 x M.2 2280 Key M for optional storage device
- 1 x M.2 3042/3052 Key B for optional LTE or 5G modules
- 1 x mini-PCIe for optional Wi-Fi and LTE
- Fanless design
NISE70 Celeron/Core Fanless SystemIntel Celeron 6305E Processor Dual Core Fanless System
Key Features:
- Onboard Intel Celeron 6305E Processor
- 4 x HDMI
- 3 x USB 3.0, 1 x USB 2.0
- 1 x RS232/422/485, 1 x RS232
- 3 x GbE LAN ports; support WoL, teaming and PXE
- Onboard TPM 2.0 chip
- 1 x M.2 socket for storage/4G LTE/5G modules
- 1 x mini-PCIe socket support optional mSATA/Wi-Fi/BT/4G LTE module
- Support operating temperature from-5 to 55 Celsius degree
- Support+12V to 24VDC input; support ATX power mode

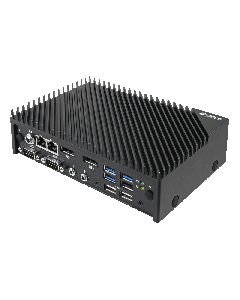

ACS10-TGU 11th Gen Intel Fanless Compact SystemCompact and easy to set up, highly expandable I/O interfaces and flexible storage design, and supports high-resolution graphics
Key Features:
- 11th Gen Intel Core i5/i3 Tiger Lake-UP3 Processor
- Intel Iris Xe/ UHD Graphics Engine
- 1-260-pin DDR4 3200MHz SO-DIMM, Supports Up to 32GB
- 2-Gigabit Ethernet, 1 x 2.5GbE, 1 x 1GbE
- 2-COM Port (RS-232/422/485 & RS-232)
- 2-Audio Jack (Line-Out & Mic-In)
- 2-Storage (M.2 Key-M NVMe & M.2 Key-B SATA)
- 2-Expansion Slot (M.2 Key-E, Key-B)
- 6-USB Port (3-USB 3.2 & 3-USB 2.0)
- CE, FCC Class A, UKCA

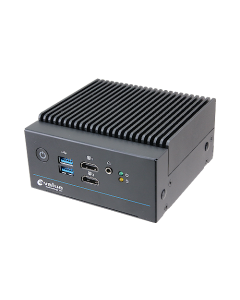

NUC-APL Fanless NUC System J3455/N3350Intel Apollo Lake Celeron Processor J3455/N3350 Up to 8GB DDR3
Key Features:
- Onboard Intel Celeron Processor J3455/N3350
- Single DRAM Socket, Max. Up to 8GB DDR3 1866MHz
- Rich I/O, 2 x COM, 2 x LAN, 4 x USB3.0, 1 x Audio, 2 x Antennal Mounting
- Triple Display, 2 x HDMI, 1 x DP (DVI-I/VGA Factory Option)
- Expansion Slot, M.2 Key-B, M.2 Key-E
- Fanless Operating from 0°C ~ 60°C
- DC Power Input +12V
- Compact Size, 115mm x 111mm x 58mm
- Supports VESA/Din-Rail Kit
- TPM 2.0 (Factory Option)

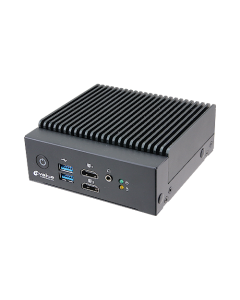

NUC-APL-SLIM Fanless NUC Slim System J3455/N3350Intel Apollo Lake J3455/N3350 Up to 8GB DDR3
Key Features:
- Onboard Intel Celeron Processor J3455/N3350
- Single DRAM Socket, Max. Up to 8GB DDR3 1866MHz
- Rich I/O, 1 x COM, 2 x HDMI, 2 x LAN, 4 x USB3.0, 1 x Audio, 2 x Antennal Mounting
- Expansion Slot, M.2 Key-B, M.2 Key-E
- Fanless Operating from 0°C ~ 50°C
- DC Power Input +12V
- Compact Size, 115mm x 111mm x 45mm
- Supports VESA/Din-Rail Kit
- TPM 2.0 (Factory Option)

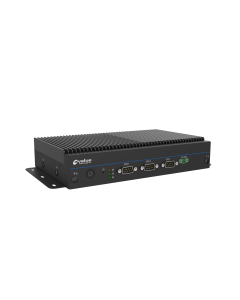

EMS-TGL Fanless Rugged Embedded System 11th Gen i7/i5/i311th Gen. Core i7/i5/i3 BGA Processor, Rich I/O, support 5G module, fanless operation temperature -40°C ~ 70°C
Key Features:
- On board 11th Gen. Intel Core i7/i5/i3 BGA Processor
- 2x 260-pin SODIMM socket Max. up to 64GB DDR4 3200MT/s
- Rich I/O, 4-USB3.1, 1-DP, 1-HDMI, 2-COM, 2-LAN, 1-8bit GPIO.
- Support 5G (Sub-6G) module, M.2 NVMe SSD Gen. III x 4, HDMI 2.0b (4K @ 60Hz), LAN 2.5G BaseTx GbE
- Fanless operation temperature from -40°C ~ 70°C (WT) / 0°C ~ 70°C (ST)
- CE, FCC Class B, IP50
- Wide range DC power input from +9~32V
- Support HW TPM 2.0
- Support vPro
AIE100-ONA Fanless Edge AI System with NVIDIA® Jetson Orin™ Nano SoMAxiomtek AIE100-ONA Fanless NVIDIA® Jetson Orin™ Nano SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB, Allxon Remote Management
Key Features:
- NVIDIA® Jetson Orin™ Nano, up to 1024-core NVIDIA Ampere GPU
- High AI computing performance for GPU-accelerated processing
- Ideal for edge AI smart city applications
- Supports one 15W GbE PoE for camera
- Wide operating temperature from -20°C to +50°C
- JetPack supported
- Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon

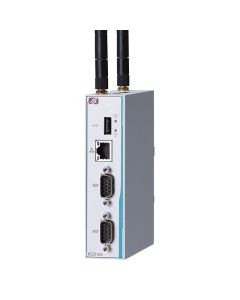

ICO100-839 DIN-Rail Fanless Embedded SystemDIN-rail Fanless Embedded System with Intel Celeron Processor N3350, 2 COM, LAN, 2 USB, and DIO
Key Features:
- Extreme cost-effective with fanless and cableless design
- Intel Celeron processor N3350, reliable F1 stepping version CPU
- 2 COM, 2 USB, and GbE LAN
- 8-bit programmable DIO for IoT gateway applications
- Wide operating temperature range from -20°C to +70°C
- 12 to 24 VDC wide range power input
- Supports SocketCAN
- AMS.AXView intelligent remote monitoring software for IIoT

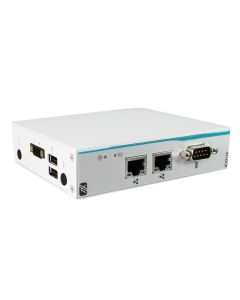

ICO120-83D DIN-Rail Fanless Embedded SystemRobust DIN-rail Fanless Embedded System with Intel Celeron Processor N3350, COM or CAN, 2 LAN, 2 USB and DIO
Key Features:
- Extreme cost-effective with fanless and cableless design
- Intel Celeron processor N3350, reliable F1 stepping version CPU
- 1 COM or CAN, 2 USB, 2 GbE LAN
- 8-bit programmable DIO for IoT gateway applications
- Wide operating temperature range from -20°C to +70°C
- 12 to 24 VDC wide range power input
- Supports SocketCAN
- AMS. AXView intelligent remote monitoring software for IIoT

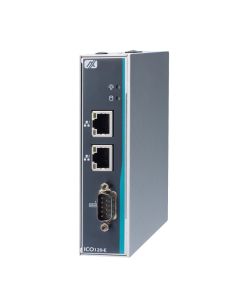

ICO120-E3350 DIN-rail Fanless Embedded System Celeron N3350DIN-rail Fanless Embedded System with Intel Celeron Processor N3350, COM/CAN/DIO, 2 LAN, 2 USB, and HDMI
Key Features:
- Extreme cost-effective with fanless and cableless design
- Intel Celeron processor N3350, reliable F1 stepping version CPU
- COM/CAN/DIO, 2 USB, and 2 GbE LAN
- Wide operating temperature range from -40°C to +70°C
- 9 to 36 VDC wide range power input (typical: 12-24 VDC)
- OVP, UVP, OCP, RPP power protection design
- eAPI for intelligent remote monitoring software integration

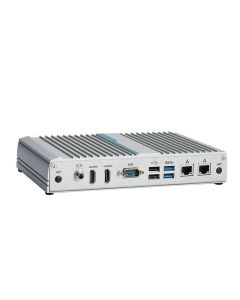

eBOX100-312-FL - Pentium N4200 Fanless Embedded PC, PXE remote bootFanless Embedded System with Intel Celeron N3350 & Pentium N4200, 2 HDMI, 2GbE LANs and 6 USB

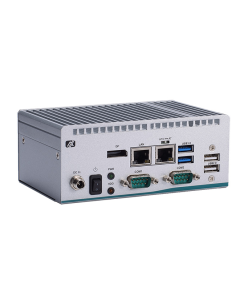

eBOX100-51R-FL - i5-7300U, Azure certifiedFanless Ultra Compact Embedded System with Intel® Core™ i5-7300U & Intel® Celeron® 3965U Processors, DisplayPort++, 2 COM, 4 USB and 2 GbE LANs
eBOX560-300-FL - Pentium N3710, 2 HDMI supporting 4k resolutionFanless Embedded System with Intel® Pentium® N3710 1.6 GHz, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM and PCIe Mini Card

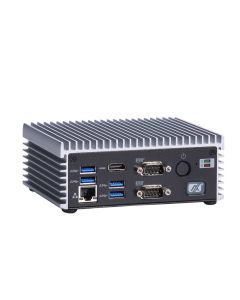

eBOX560-500-FL - i7-6600U, Ultra compact designFanless Embedded System with Intel® Core™ i7-6600U/i5-6300U/i3-6100U & Celeron® 3955U, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM and PCI Express Mini Card Slot

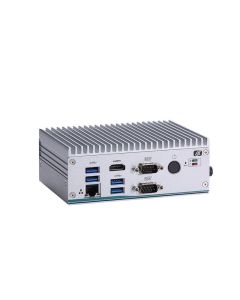

eBOX560-512-FL - i5-7300U, 2x HDMI, TPM 1.2Fanless Embedded System with Intel® Core™ i5-7300U & Celeron® 3965U, 2 HDMI, 2 GbE LANs, 4 USB 3.0 and PCI Express Mini Card Slot

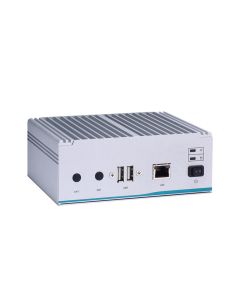

eBOX560-52R-FL - Fanless i5/Celeron Palm-Size PCFanless Embedded System with Intel® Core™ i5-8365UE/Celeron® 4305UE Processor, HDMI/DisplayPort, 2 GbE LAN, 2 COM, 4 USB

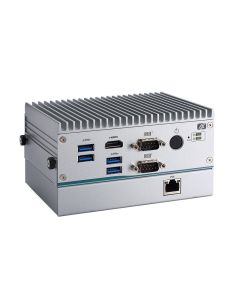

eBOX565-312-FL - Celeron N3350, 1-CH PoEFanless Embedded System with Intel® Celeron® Processor N3350, 2 HDMI, 4 USB 3.0, 2 COM, 1 GbE LAN and 1-CH PoE
eBOX565-500-FL - i5-6300U, supports 9.5K, WoL & PXEFanless Embedded System with Intel® Core™ i5-6300U/i3-6100U & Celeron® 3955U, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM and 9 to 36 VDC

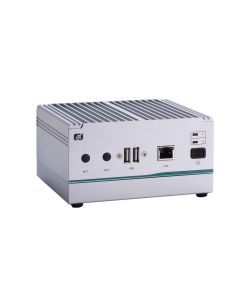

eBOX565-52R-FL Fanless Embedded System i5/CeleronFanless Embedded System with Intel Core i5-8365UE/Celeron 4305UE Processor, HDMI/DisplayPort++, 2 GbE LAN, 2 COM, 4 USB and 9-36VDC Power Input

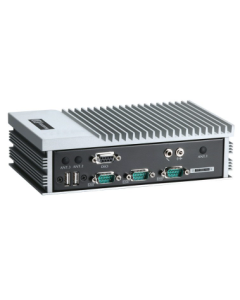

eBOX620-841-FL - Intel Atom E3845, 8-CH DI/DOFanless Embedded System with Intel® Atom™ Processor E3845 1.91 GHz, HDMI, VGA, 2 GbE LANs, 4 USB and 4 COM
eBOX625-312-FL - Pentium N4200, 2x mPCIe, 1 SIM slotFanless Embedded System with Intel® Celeron® N3350 2.4 GHz/ Pentium® N4200 2.5 GHz, HDMI, VGA, 2 GbE LANs, 6 USB and 3 COM

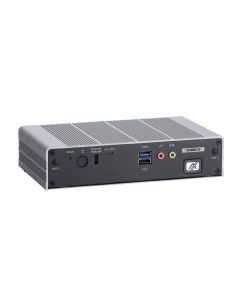

eBOX625-853-FL - Celeron N3160, Intel VT-xFanless Embedded System with Intel® Celeron® Processor N3160, VGA, HDMI, 4 COM, 2 GbE LANs, 4 USB, and 2 PCI Express Mini Card Slots
eBOX626-311-FL - Atom E3940 1.8GHz CPUFanless Embedded System with Intel® Atom® x5-E3940 1.8 GHz, HDMI, VGA, 2 GbE LAN, 6 USB and 3 COM

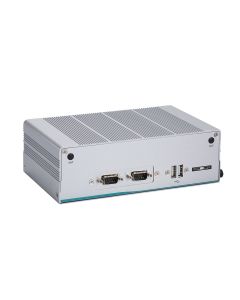

eBOX627-312-FL - Pentium N4200, 9~36vDC, wide op temp rangeEnd of LifeFanless Embedded System with Intel® Celeron® N3350 2.4 GHz/Pentium® N4200 2.5 GHz, HDMI, 2 GbE LANs, 6 USB, 4 COM and 9 to 36 VDC

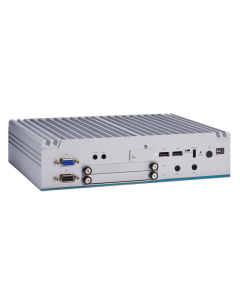

eBOX630-528-FL - 8th gen CPU, 2x SSD StorageFanless Embedded System with 8th Gen Intel® Core™ i7/i5/i3 & Celeron® ULT Processor, 2 HDMI, 1 VGA, 3 GbE LAN, 6 USB, Dual PCI Express Mini Card Slots and 9 to 36 VDC
eBOX630A Fanless Embedded System with 11th Gen CoreFanless Embedded System with 11th Gen Intel Core i7/i5/i3 or Celeron Processor, 2 HDMI, 1 DisplayPort, 3 LANs, 6 USB, 4 COM, and 9 to 48 VDC
Key Features:
- 11th gen Intel Core i7/i5/i3 or Celeron Quad-core ULT processor (Tiger Lake UP3)
- Dual-channel DDR4-3200 SO-DIMM for up to 64GB of memory
- Supports 3x 2.5 GbE, 6 USB, 4 COM
- -40°C to +60°C wide operating temperatures
- 9 to 48 VDC wide range DC power input
- Supports triple displays with 2 HDMI, and 1 DisplayPort++
- Intel Iris Xe integrated graphics (i7 & i5 SKUs)
- Trusted platform module (TPM 2.0 onboard)

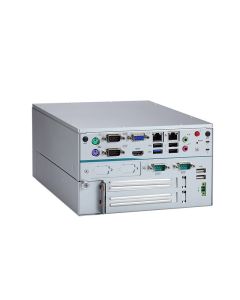

eBOX638-842-FL - Celeron J1900, 9 to 36 VDC InputFanless Embedded System with Intel® Celeron® Processor J1900, VGA, HDMI, 4 COM, 6 USB, Dual Expansion Slots and 9 to 36 VDC Input
eBOX640-500-FL - 7th gen i series LGA1151 CPUFanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ & Celeron® Processor, Intel® H110, HDMI, DisplayPort, VGA, 6 USB, 4 COM, PCI Express Mini Card Slot and 10 to 30 VDC

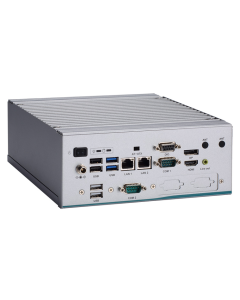

eBOX640-521-FL Intel H310 8th gen i-series-CPUFanless Embedded System with LGA1151 Socket 8th Gen Intel® Core™ & Celeron® Processor, Intel® H310, HDMI, DisplayPort, 6 USB, 2 COM and 8-CH DI/DO
eBOX670-891-FL - 7th gen i series LGA 1151 socket CPUFanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ & Celeron® Processor, Intel® Q170, 2 HDMI, DisplayPort, 4 GbE LANs, 6 USB, 2 PCI Express Mini Card Slots
eBOX671-517-FL - 7th gen i series LGA1151 CPUFanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, Intel® Q170, HDMI, DVI-D, VGA, 8-CH PoE, 6 USB and 24 VDC
eBOX671-521-FL Fanless Embedded SystemFanless Embedded System with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, 4-CH PoE and MXM 3.1 Type A

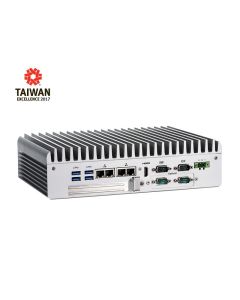

eBOX700-891-FL - 7th gen i series LGA1151 CPUFanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, Intel® H110, 2 HDMI, DisplayPort, 4 GbE LANs, 6 USB, PCIe x4/PCI Slot and 9 to 36 VDC

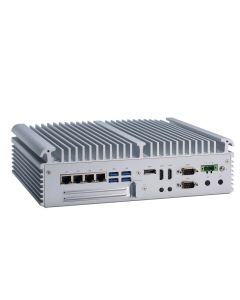

eBOX710A Fanless Embedded System 11th/10th Gen IntelFanless Embedded System with LGA1200 Socket 11th/10th Gen Intel Core i9/i7/i5/i3 or Celeron Processor, Intel H420E, HDMI, DisplayPort, 6 USB, 4 LAN, PCIe x4 slot, and 9 to 48 VDC
Key Features:
- 10th/11th gen Intel Core i9/i7/i5/i3 or Celeron processor up to 65W
- 4 GbE LAN and 4 COM ports
- Dual 2.5" SATA HDD drive bays
- 2 HDMI and 1 DisplayPort with dual view supported
- -40 °C to +70 °C wide operating temperatures
- Wide range power input from 9 to 48 VDC
- 1 PCIe x4 slot for I/O card
- Flexible I/O window slot for mPCIe modules

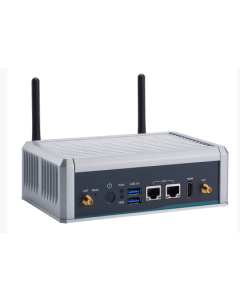

AIE500-901-FL - NVIDIA Jetson TX2, NVIDIA Pascal GPUFanless Edge AI System with NVIDIA® JETSON™ TX2 Series SoM, 1 HDMI 2.0, 2 GbE LAN and 2 USB
AIE100-903-FL - NVIDIA Jetson Nano CPUFanless Edge AI System with NVIDIA® JETSON™ Nano SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE and 2 USB

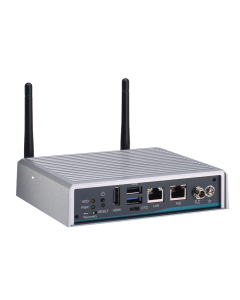

AIE100-903-FL-NX - NVIDIA Jetson Xavier NX SoMFanless Edge AI System with NVIDIA® JETSON™ Xavier NX SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE and 2 USB

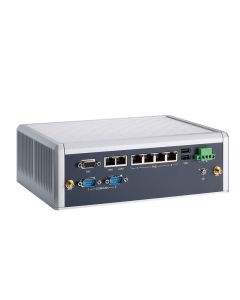

AIE900-902-FL - Fanless Edge AI System Jetson AGX Xavier™ 4 x POEFanless Edge AI System Jetson AGX Xavier™ 4 x POE

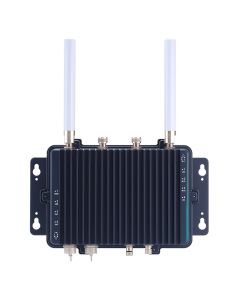

AIE800-904-FL Rugged IP67 Fanless AI SystemRugged IP67-rated Fanless Edge AI System with NVIDIA® Jetson Xavier™ NX, 1 HDMI, 1 GbE PoE, 1 USB and 100 to 240 VAC Power

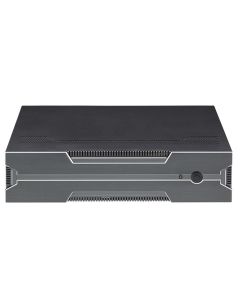

AIEdge-X300 Industrial AI Computing SystemIndustrial AI Computing System at the Edge Powered by Intel 8th/9th Gen. Intel Core CPU for Optional NVIDIA Graphics Card

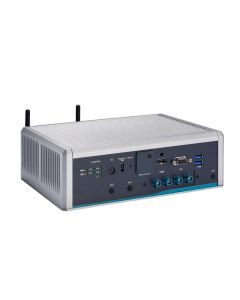

AIE900-XNX Fanless Edge AI System NVIDIA Jetson Xavier NX PoENVIDIA Jetson Xavier NX, 1 HDMI, 1 GbE LAN, 4 GbE PoE, 8-CH DI/DO, and 2 COM/CAN for 5G and AMR Applications
Key Features:
- NVIDIA Jetson Xavier NX with Volta GPU architecture with 384 NVIDIA CUDA cores
- Advanced edge AI platform for AMR, AGV, and computer vision
- Wide power input ranges from 9 to 36 VDC (ignition power control for option)
- Supports four GbE PoE for GigE camera and LiDAR connectivity
- Wide operating temperature range from -30°C to +60°C
- One M.2 Key B slot for 5G
- One 8-CH DI/DO and two DB9 for RS-232/422/485/CAN ports

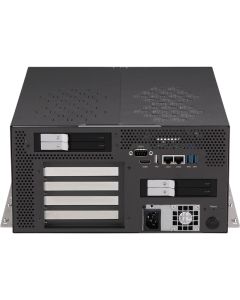

AIEdge-X500 Industrial AI Computer 8th/9th Gen - Optional NVIDIA GraphicsIndustrial AI Computer Powered by 8th/9th Gen Intel Core Processor, with Large Storage and Optional NVIDIA Graphics Card
