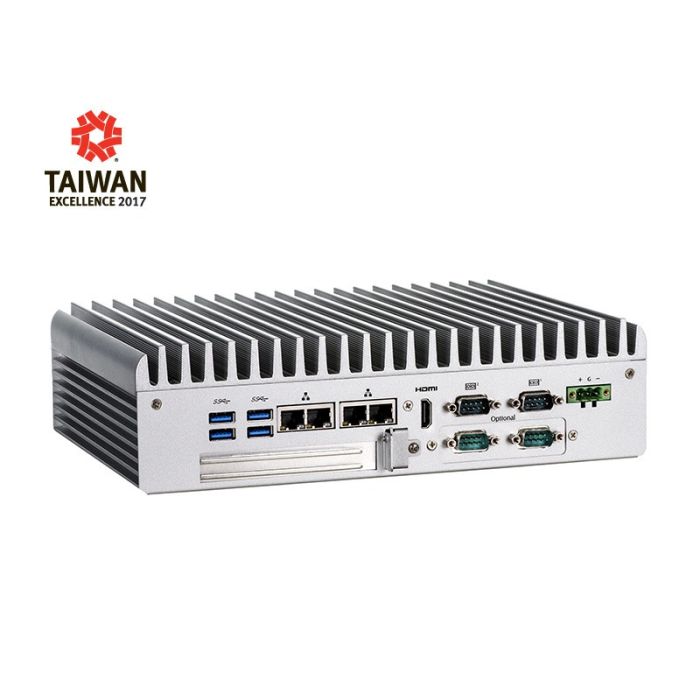

eBOX700-891-FL Fanless Embedded System 7th/6th Gen

In stock
Brand: Axiomtek

Fanless Embedded System with LGA1151 Socket 7th/6th Gen Intel Core i7/i5/i3 & Celeron Processor, Intel H110, 2 HDMI, DisplayPort, 4 GbE LANs, 6 USB, PCIe x4/PCI Slot and 9 to 36 VDC

Key Features:

  • Wide operating temperature range from -40°C to +50°C
  • 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors
  • PCIe x 4 or PCI slot supported
  • Supports 6 USB ports and 4 GbE LAN
  • 2 PCI Express Mini Card slots for WLAN/WWAN/mSATA modules
  • 1 internal USB Type A connector for the Dongle kit
  • AMS.AXView intelligent remote monitoring software for IIoT

Enquire Now
Enquire about this product:

The eBOX700-891-FL is an expansion-rich fanless embedded system powered by the 7th generation Intel® Core™ i7/i5/i3 and Celeron® processors (codename: Kaby Lake) with the Intel® H110 chipset. It supports dual DDR4-2133 SO-DIMM slots with up to 32GB system memory. This embedded box PC comes with a user-friendly mechanism design and offers great flexibility, reliability, and scalability, well suited for vision inspection (USB/PoE), motion control, security surveillance and industrial automation. The eBOX700-891-FL is designed with user friendliness in mind. Its heatsink top cover can simply be opened by unfastening the four screws for the access to the processor and DRAM. Moreover, its bottom cover adopts a convenient flip lid design along with easy-to-access brackets for securing the USB dongle and hard drive. Axiomtek has obtained patents, No. M511183 and No. M531115, for the special chassis design of the eBOX700-891-FL. Easy maintenance is one of the advantages we are offering to our customers and one of the main focuses of our product development. We will continue pursuing excellence and innovation in design and manufacturing.


This product is listed in Axiomtek, Embedded Computers

Standard Color



Aluminum extrusion and heavy-duty steel, IP40


LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35 W)

System Memory

6th gen: 2 x 260-pin SO-DIMM DDR4-1866/2133, up to 32GB

7th gen: 2 x 260-pin SO-DIMM DDR4-2133/2400, up to 32GB


Intel® H110



System I/O Outlet

2 x RS-232/422/485

2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b)

1 x DisplayPort

1 x Audio (Mic-in/Line-out)

4 x 10/100/1000 Mbps Ethernet (Intel® i210-IT, i219-LM)

4 x USB 3.0

2 x USB 2.0

4 x SMA-type antenna connector

1 x Phoenix type VDC power input connector

1 x ATX power switch

1 x Remote power switch

1 x ATX/AT quick switch

1 x Reset switch

1 x Flexible I/O window (default: 2 x DB9 half cut bracket)

Watchdog Timer

255 levels, 1 to 255 sec.


1 x 2.5” SATA HDD drive bay (max. up 15 mm height)

1 x mSATA (enabled in BIOS setting)

Expansion Interface

2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)

1 x SIM slot

1 x PCIe x4 slot or 1 x PCI slot

1 x Internal USB Type A for license dongle kit usage



System Indicator

1 x green LED for system power-on

1 x yellow LED for HDD active

4 x Programmable green LED

Power Input

9 to 36 VDC

Operating Temperature

-40°C to +50°C (-40°F to +122° F) (with W.T. SSD/DRAM)


10% to 90%, non-condensing

Vibration Endurance

3 Grms with SSD (5 to 500Hz, X, Y, Z directions)


280 mm (11.02") (W) x 190 mm (7.48") (D) x 76 mm (2.99") (H)


(net/gross) 3.8 kg (8.37 lb)/4.6 kg (10.14 lb)


CE, FCC Class A

EOS Support

Win 10 IoT, Linux, AXView 2.0
