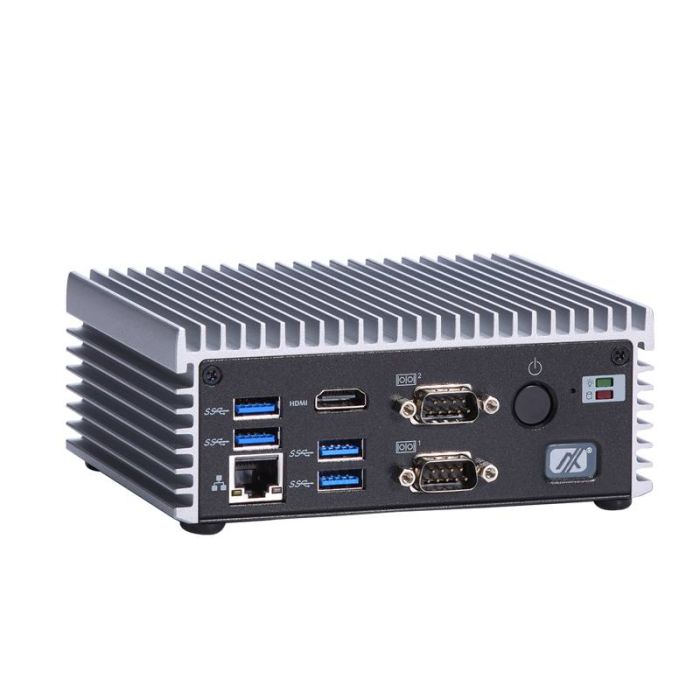

eBOX560-500-FL - i7-6600U, Ultra compact design
Fanless Embedded System with Intel® Core™ i7-6600U/i5-6300U/i3-6100U & Celeron® 3955U, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM and PCI Express Mini Card Slot
Fanless Embedded System with Intel® Core™ i7-6600U/i5-6300U/i3-6100U & Celeron® 3955U, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM and PCI Express Mini Card Slot
● Intel® Core™ i7-6600U 3.4 GHz/i5-6300U 3 GHz/i3-6100U 2.3 GHz & Celeron® 3955U 2.0 GHz (Skylake ULT SoC)
● 260-pin DDR4 SO-DIMM for up to 16GB of memory
● 12 VDC power input
● Supports 2 HDMI, 2 GbE LANs, 2 COM and 4 USB 3.0
● Supports Jumbo Frame (9.5K), WoL, PXE and Teaming
● Ultra-compact enclosure design
|
Standard Color |
Silver-black |
|
Construction |
Aluminum extrusion and heavy-duty steel, IP40 |
|
CPU |
Intel® Core™ i7-6600U 3.4 GHz i5-6300U 3 GHz i3-6100U 2.3 GHz Celeron® 3955U 2.0 GHz (Skylake ULT SoC) |
|
System Memory |
1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB |
|
Chipset |
SoC integrated |
|
BIOS |
AMI |
|
System I/O Outlet |
1 x RS-232/422/485 1 x RS-232 2 x HDMI 2 x 10/100/1000 Mbps Ethernet (Intel® i210-AT, i219-LM) 4 x USB 3.0 2 x SMA-type antenna connector 1 x AT/ATX quick switch 1 x ATX power switch 1 x Reset button 1 x Screw type VDC power input connector |
|
Watchdog Timer |
255 levels, 1 to 255 sec. |
|
Storage |
1 x 2.5” SATA HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting) |
|
Expansion Interface |
1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) |
|
TPM |
N/A |
|
System Indicator |
1 x green LED for system power-on 1 x orange LED for HDD active |
|
Power Input |
12 VDC |
|
Operating Temperature |
-10°C to +55°C (-14°F to +131°F) (with W.T. DRAM/SSD) |
|
Humidity |
10% to 95%, non-condensing |
|
Vibration Endurance |
3 Grms with SSD™ (5 to 500 Hz, X, Y, Z directions) |
|
Dimensions |
141.5 mm (5.57") (W) x 106 mm (4.17") (D) x 55 mm (2.17") (H) |
|
Weight |
(net/gross) 0.8 kg (1.76 lb)/1.67 kg (3.68 lb) |
|
Certifications |
CE |
|
EOS Support |
Win 10, WE8S, Linux |
