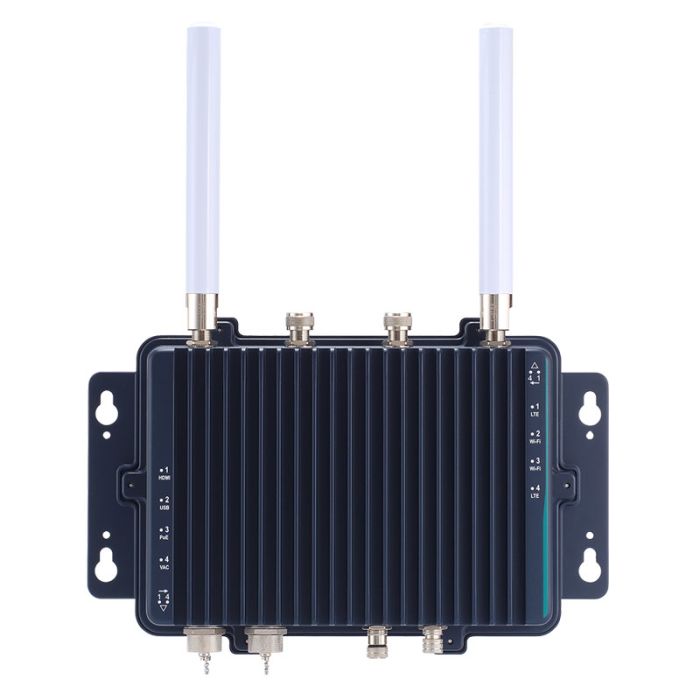

AIE800-904-FL Rugged IP67 Fanless AI System

In stock
Brand: Axiomtek

Rugged IP67-rated Fanless Edge AI System with NVIDIA® Jetson Xavier™ NX, 1 HDMI, 1 GbE PoE, 1 USB and 100 to 240 VAC Power

Enquire Now
Enquire about this product:

The Axiomtek AIE800-904-FL is a rugged AI system powered by an NVIDIA Xavier NX processor. This product incorporates a full IP67-rated extruded aluminium and heavy-duty steel case for dust intrusion protection and water resistance.


  • IP67-rated design, specifically for outdoor environments
  • NVIDIA Jetson Xavier NX with Volta GPU architecture with 384 NVIDIA CUDA cores
  • High AI computing performance for GPU accelerated processing
  • -30°C to +50°C operating temperature range
  • 100 to 240 VAC wide range power input with 10kV surge protection
  • 4 N-jack antenna openings with waterproof design
  • Features M12 lockable I/Os
  • 1 IEEE 802.3at GbE PoE (30W)

This product is listed in Industrial Automation, Mining, Transport, Axiomtek, Embedded Computers
CPU Board
  • NVIDIA® Jetson Xavier™ NX
  • 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
  • 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
  • SoC integrated
System Memory
  • 8GB 128-bit LPDDR4x onboard
  • N/A
  • 1 x C3 USB 2.0
  • 1 x M12 X-Code GbE PoE (IEEE 802.3at) (30W)
  • 1 x C3 HDMI with FHD supported
Digital I/O
  • N/A
  • N/A
  • Onboard 16GB eMMC (via Jetson Xavier™ NX)
  • 1 x M.2 Key B 2242 with PCIe 2.0 x2 NVMe SSD slot
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
  • 1 x M12 S-Code 3-pos AC in power input
  • 4 x N-jack antenna opening with waterproof design
  • Built-in Xavier NX
Power Supply
  • 100 to 240 VAC with 10kV SPD
Watchdog Timer
  • Built-in Xavier NX
  • Aluminum die-casting and heavy-duty steel, IP67
Operating Temperature
  • -30°C to +50°C (-22°F to +122°F)
Relative Humidity
  • 10% - 95% , non-condensing
  • 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)
  • 366.8 x 235 x 83.8 mm (14.44" x 9.25" x 3.3”)
Weight (net/gross)
  • 4.13 kg (9.11 lb)/5.5 kg (12.13 lb)
  • CE, FCC Class A
EOS Support
  • Linux Ubuntu 18.04
