AIE100-T2NX Fanless Edge AI System with NVIDIA Jetson TX2 NX

In stock
SKU:
AIE100-T2NX-1L1P
Brand: Axiomtek

Fanless Edge AI System with NVIDIA Jetson TX2 NX, HDMI, GbE LAN, GbE PoE, 2 USB, and Allxon Device Management Solutions


Enquire Now
Enquire about this product:

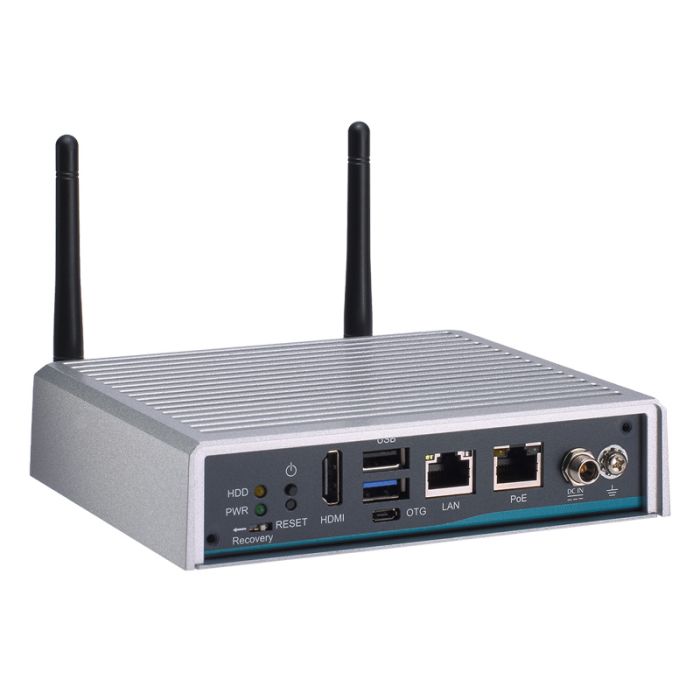

main product photo
We build to order

The AIE100-T2NX is a fanless edge AI system with PoE PSE support and HDMI input for added flexibility. The NVIDIA Jetson TX2 NX module, which integrates the dual-core NVIDIA Denver 2 64-bit CPU, quad-core Arm Cortex-A57 MPCore processor complex, and NVIDIA Pascal architecture GPU with 256 CUDA cores, powers the high-performance AIE100-T2NX. Smart manufacturing, smart agriculture, smart farming, smart city, and other intelligent edge AI applications benefit from the AIE100-T2NX.

Key Features:

  • NVIDIA Jetson TX2 NX with Pascal architecture GPU with 256 CUDA cores
  • High AI computing performance for GPU-accelerated processing
  • Ideal for edge AI smart city applications
  • Supports one 15W GbE PoE for camera
  • Wide operating temperature from -30°C to +60°C
  • Supports JetPack
  • Supports Allxon Device Management Solutions (Allxon DMS)

This product is listed in Industrial Automation, Gaming, Mining, Transport, Axiomtek, Embedded Computers
Specifications
CPU Board
  • NVIDIA Jetson TX2 NX
CPU
  • Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core Arm Cortex-A57 MPCore processor
GPU
  • 256-core NVIDIA Pascal™ GPU
Chipset
  • SoC integrated
AI Accelerator
  • N/A
System Memory
  • 4GB 128-bit LPDDR4 51.2GB/s
COM
  • N/A
USB
  • 1 x USB 3.1 Gen1, 1 x USB 2.0
  • 1 x Micro USB
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Via Jetson™ TX2 NX)
  • 1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)
Display
  • 1 x HDMI 2.0 with 4K2K supported
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • Onboard 16GB eMMC (via Jetson TX2 NX)
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
  • 1 x Micro SD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 1 x Recovery switch
  • 1 x Reset button
  • 1 x Power button
  • 1 x 12 VDC power input connector
  • 2 x SMA-type antenna connector
Power Supply
  • 12 VDC screw type
Watchdog Timer
  • Built-in TX2 NX
Construction
  • Aluminium extrusion and heavy-duty steel, IP40
Operating Temperature
  • -30°C to +60°C (-22°F to +140°F)
Relative Humidity
  • 10% - 95%, non-condensing
Vibration
  • 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)
  • 148.6 mm (5.85") (W) x 129.8 mm (5.11") (D) x
  • 34.6 mm (1.36") (H)
Weight (net/gross)
  • 1 kg (2.20lb)/1.6 kg (3.52lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Linux Ubuntu 18.04
Mounting
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit
