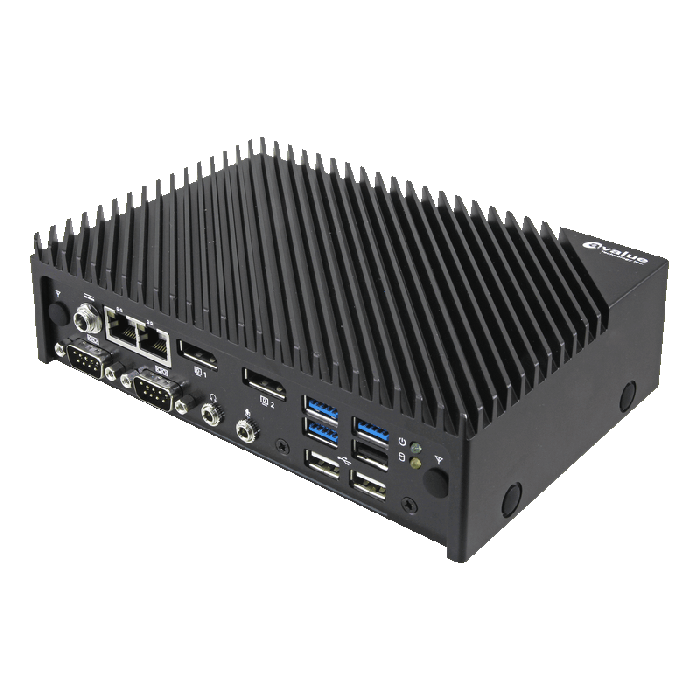

ACS10-TGU 11th Gen Intel Fanless Compact System
View larger image
ACS10-TGU 11th Gen Intel Fanless Compact System
Compact and easy to set up, highly expandable I/O interfaces and flexible storage design, and supports high-resolution graphics
Key Features:
11th Gen Intel Core i5/i3 Tiger Lake-UP3 Processor Intel Iris Xe/ UHD Graphics Engine 1-260-pin DDR4 3200MHz SO-DIMM, Supports Up to 32GB 2-Gigabit Ethernet, 1 x 2.5GbE, 1 x 1GbE 2-COM Port (RS-232/422/485 & RS-232) 2-Audio Jack (Line-Out & Mic-In) 2-Storage (M.2 Key-M NVMe & M.2 Key-B SATA) 2-Expansion Slot (M.2 Key-E, Key-B) 6-USB Port (3-USB 3.2 & 3-USB 2.0) CE, FCC Class A, UKCA
Description
The ACS10-TGU is compact and easy to set up, and have highly expandable I/O interfaces and flexible storage design, and supports high-resolution graphics. Furthermore, their stable high-speed connectivity makes them ideal for IoT applications that require real-time feedback and analysis.
Key Features:
Intel Iris Xe/ UHD Graphics Engine
1-260-pin DDR4 3200MHz SO-DIMM, Supports Up to 32GB
2-Gigabit Ethernet, 1 x 2.5GbE, 1 x 1GbE
2-COM Port (RS-232/422/485 & RS-232)
2-Audio Jack (Line-Out & Mic-In)
2-Storage (M.2 Key-M NVMe & M.2 Key-B SATA)
2-Expansion Slot (M.2 Key-E, Key-B)
6-USB Port (3-USB 3.2 & 3-USB 2.0)
CE, FCC Class A, UKCA
More Information
Brand
Avalue Technology Inc
Specifications
System Information
Processor Intel® Core™ i5-1135G7 (TDP 15W) (Default)
System Memory Single 260-Pin SO-DIMM Socket, Max. Up to 32GB DDR4 3200MHz
BIOS Information AMI uEFI BIOS, 256Mbit SPI Flash ROM
Watchdog Timer H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step
H/W Status Monitor CPU temperature monitoring and voltage monitoring
TPM dTPM 2.0
SBC ECM-TGUC
-Expansion-
M.2 1 x M.2 Key-E 2230 (PCIe, USB 2.0)
-Storage-
M.2 1 x M.2 Key-B 2242 (SATA3)
-Front I/O-
Power Button 1 x Power Button w/LED
-Rear I/O-
USB Port 3 x USB 3.2 Gen.2
COM Port 1 x RS-232/422/485 (Default RS-232)
DP 2 x DP++
Audio 1 x Line-Out
RJ-45 2 x RJ-45
LED Indicator 1 x Power On/Off
Antenna 2 x Antenna Mounting with Dust Protection Cover
-Right I/O-
Antenna 2 x Antenna Mounting with Dust Protection Cover
-Left I/O-
Antenna 2 x Antenna Mounting with Dust Protection Cover
-Display-
Graphic Chipset Intel® Iris® Xe Graphics (i7-1165G7/ i5-1135G7)
Resolution DP++ 1.4: 4096x2304@60Hz
-Audio-
Audio Codec RealTek ALC888S-VD2-GR
-Ethernet-
LAN Chipset Intel® Ethernet Connection I219-LM (1G)
Specification 10/100/1000 Gigabit (I219-LM)
-Power Requirement-
DC Input 12Vdc
DC Input Connector Lockable DC Jack
ACPI Single power ATX Support S0, S3, S4, S5 ACPI 5.0 Compliant
Power Mode AT/ATX (ATX is default setting)
Adapter AC to DC Adapter 60W
-Software Support-
OS Information Win11 64bits, Win10, Linux
-Certification-
Certification Information CE, FCC Class A, UKCA
-In-Box Accessory-
Accessory 1 x AC to DC Adapter, 1 x Wall Mount, 4 x Rubber Foots, 1 x Screw Kit
Mechanical & Environmental
Operating Temperature With wide-temp storage: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s airflow
Storage Temperature -40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H) 188mm x 120mm x 48mm
Weight 835g
Vibration Test with SSD: 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test IEC 60068-2-27, Half Sine, 11ms
Drop Test ISTA 2A, IEC-60068-2-32 Test: Ed, 1 Corner, 3 Edges, 6 Faces
Mounting Kit Wall Mount Kit
Construction Aluminum + Metal
Ordering Information
Ordering Information ACS10-TGU-A1-1R, ACS10-TGU w/ i3-1115G4
