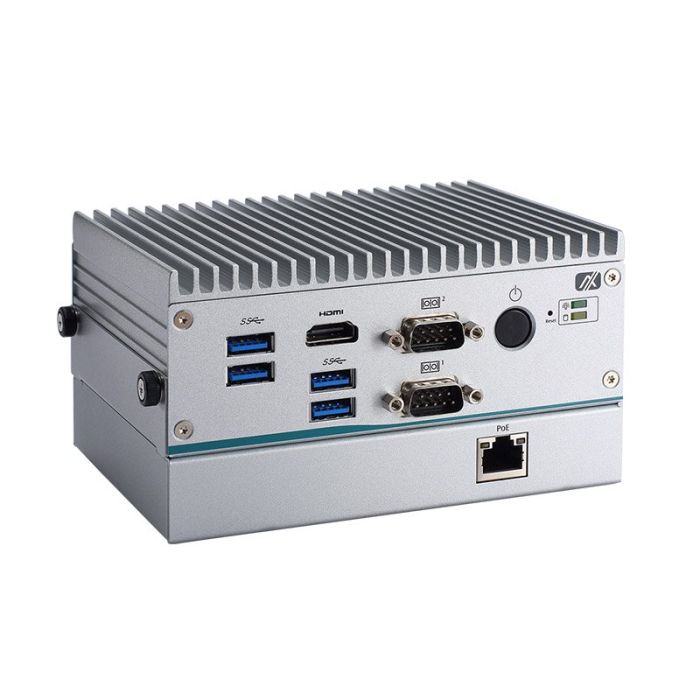

eBOX565-312-FL Celeron N3350, 1-CH PoE

In stock
SKU:
eBOX565-312-FL
Brand: Axiomtek

Fanless Embedded System with Intel® Celeron® Processor N3350, 2 HDMI, 4 USB 3.0, 2 COM, 1 GbE LAN and 1-CH PoE


Enquire Now
Enquire about this product:

Fanless Embedded System with Intel® Celeron® Processor N3350, 2 HDMI, 4 USB 3.0, 2 COM, 1 GbE LAN and 1-CH PoE

● Intel® Celeron® processor N3350

● 204-pin DDR3L-1867 SO-DIMM for up to 8GB of memory

● Supports 1-CH PoE, IEEE802.3af

● Supports 2 HDMI, 2 COM and 4 USB 3.0

● One swappable 2.5" SATA HDD drive bay

● AXView 2.0 intelligent remote monitoring software for IIoT

● Ultra-compact enclosure design

● Trusted Platform Module 1.2 (TPM) 1.2


This product is listed in Mining, Axiomtek, Industrial Computing, Embedded Computers

Standard Color

Silver

Construction

Aluminum extrusion and heavy-duty steel, IP40

CPU

Intel® Celeron® processor N3350

System Memory

1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB

Chipset

SoC integrated

BIOS

AMI

System I/O Outlet

2 x RS-232/422/485 2 x HDMI

1 x 10/100/1000 Mbps Ethernet (Intel® i211-AT)

1 x Gigabit PoE (IEEE 802.3af) port (Intel® i210-AT, 15.4W)

4 x USB 3.0 2 x SMA-type antenna connector

1 x AT/ATX quick switch

1 x ATX power switch

1 x Reset button

1 x 12 VDC screw type power input connector

Watchdog Timer

255 levels, 1 to 255 sec.

Storage

1 x 2.5” SATA HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting)

Expansion Interface

1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)

TPM

TPM 1.2

System Indicator

1 x green LED for system power-on

1 x yellow LED for HDD active

Power Supply Input

AC 100 to 240V, AC 60W adapter with lock Output: DC 12V @ 5A

Operating Temperature

-20°C to +55°C (-4°F to +131°F) (with W.T. DRAM/SSD)

Humidity

10% to 95%, non-condensing

Vibration Endurance

3 Grms with SSD™ (5 to 500Hz, X, Y, Z directions)

Dimensions

141.6 mm (5.57") (W) x 106 mm (4.17") (D) x 78.85 mm (3.10") (H)

Weight

(net/gross) 1.074 kg (1.76lb)/1.67 kg (3.68lb)

Certifications

CE, FCC Class A

EOS Support

Win 10 IoT, Linux, AXView 2.0
