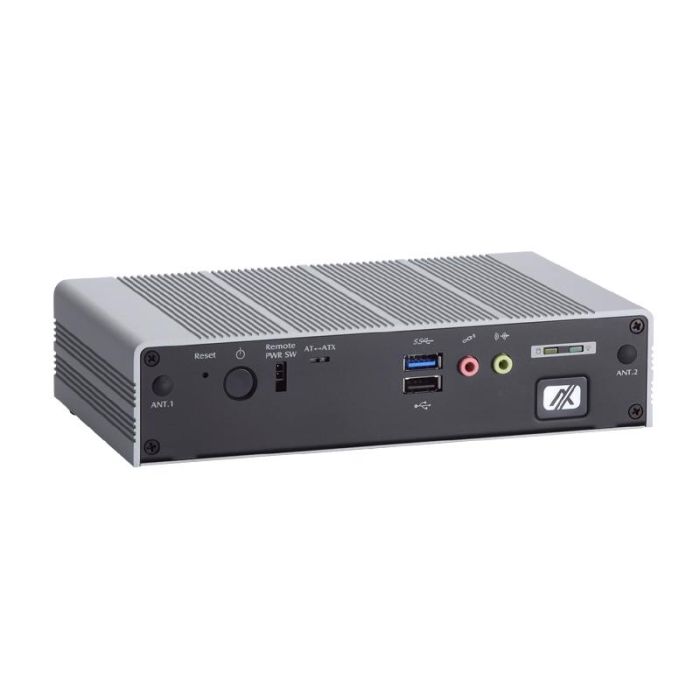

eBOX625-853-FL - Celeron N3160, Intel VT-x

In stock
Brand: Axiomtek

Fanless Embedded System with Intel® Celeron® Processor N3160, VGA, HDMI, 4 COM, 2 GbE LANs, 4 USB, and 2 PCI Express Mini Card Slots

Enquire Now
Enquire about this product

The eBOX625-853-FL is a wide temperature (-20°C to +60°C) industrial fanless embedded PC which supports Intel Celeron N3160 quad core CPU. It allows a maximum 8GB DDR3L SO-DIMM memory, HDMI and VGA displays with up to 4k resolution (HDMI), three RS-232 and one RS-232/422/485 ports, three USB3.0 and one USB2.0 ports, two Gigabit Ethernet LAN ports, two PCIe Mini slots

● Intel® Celeron® Processor N3160 2.24 GHz (Braswell)

● HDMI and VGA with dual view supported

● Supports 4 COM and 4 USB

● 2 GbE LANs support WoL, Teaming and PXE

● 2 PCI Express Mini Card slots for WLAN/WWAN/mSATA modules

● -20°C to +60°C operating temperature range

● Intel® Virtualization Technology (Intel® VT-x)

This product is listed in Axiomtek, Industrial Computing, Embedded Computers

Standard Color



Aluminum extrusion and heavy-duty steel, IP40


Intel® Celeron® processor N3160 2.24 GHz (2M Cache, up to 2.24 GHz)

System Memory

1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB


SoC integrated



System I/O Outlet

2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT)

1 x RS-232/422/485

3 x RS-232

3 x USB 3.0

1 x USB 2.0

1 x Audio (Mic-in/Line-out)

1 x HDMI (4K supported)

1 x VGA

1 x Screw type VDC power input connector

1 x ATX power switch

1 x Remote power switch

1 x Reset switch

1 x AT/ATX quick switch

3 x Antenna opening 8-CH programmable DIO (optional)

Watchdog Timer

255 levels, 1 to 255 sec.


1 x 2.5” HDD drive bay (max. up 15 mm height)

1 x mSATA (enabled in BIOS setting)

Expansion Interface

1 x Full-size PCI Express Mini Card slot (PCI Express + USB signal)

1 x Full-size PCI Express Mini Card slot (PCI Express + SATA signal) 1 x SIM slot



System Indicator

1 x green LED for system power-on

1 x yellow LED for HDD active

Power Supply

Input: AC 90-264V, AC 36 W adapter with lock Output: DC 12V@3A

Operating Temperature

-20°C to +60°C (-4°F to +140°F) (with W.T. SSD/DRAM)


10% to 95%, non-condensing

Vibration Endurance

3 Grms with SSD (5 to 500Hz, X, Y, Z directions)


200 mm (7.87”) (W) x 120 mm (4.72”) (D) x 46 mm (1.81”) (H)


(net/gross) 1.2 kg (2.65 lb)/1.9 kg (4.19 lb)



EOS support

WES7, WE8S, Win 10 IoT, Linux
