AIE100-903-FL-NX - NVIDIA Jetson Xavier NX SoM

In stock
SKU:
AIE100-903-FL-NX
Brand: Axiomtek

Fanless Edge AI System with NVIDIA® JETSON™ Xavier NX SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE and 2 USB


Downloads:

pdf
Data sheet
Enquire Now
Enquire about this product

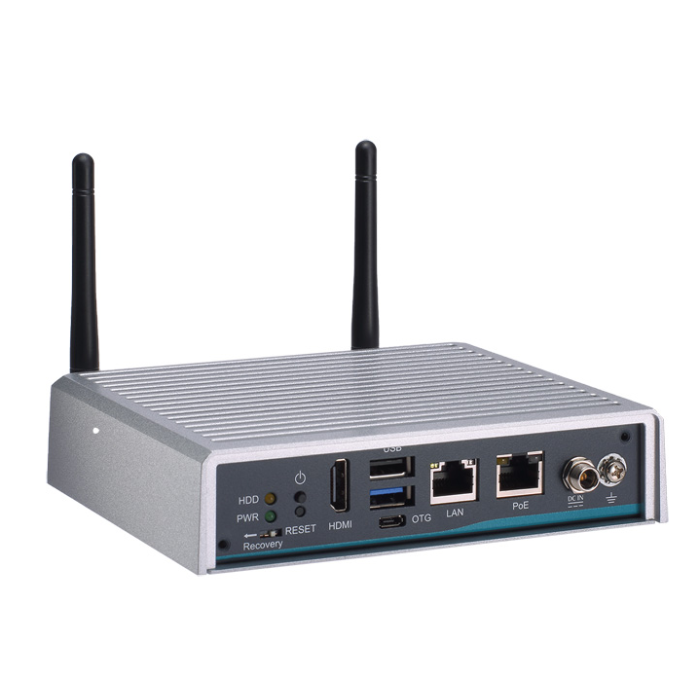

main product photo
We build to order

The Axiomtek AIE100-903-FL-NX  is an NVIDIA® Jetson™ Xavier NX based system with 6-core NVIDIA® Carmel ARM® v8.2 64-bit processor and 384-core NVIDIA® Volta™ GPU architecture with 48 Tensor cores. The rugged design means an ultra-compact edge computing device can operate in harsh environments with wide temperatures from -30°C to +50°C and can withstand vibration up to 3 Grms. In addition, has optional waterproof IP42-rated cover kit for enhanced protection in semi-outdoor environments. The AIE100-903-FL-NX is ideal for smart city, smart manufacturing, ADAS, smart retail, and other intelligent edge AI applications.

Supports one 15W GbE PoE for IP camera.




This product is listed in Industrial Automation, Mining, Transport, Axiomtek, Industrial Computing, Embedded Computers
Specifications
CPU
  • CPU Board: NVIDIA® Jetson™ Xavier NX
  • CPU: 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
GPU
  • 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
Chipset
  • SoC integrated
System Memory
  • 1 x 8GB 128-bit LPDDR4x onboard
COM
  • N/A
USB
  • 1 x USB 3.1 Gen2
  • 1 x USB 2.0
  • 1 x Micro USB
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Via JETSON™ Xavier NX)
  • 1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)
Display
  • 1 x HDMI 2.0 with 4K2K supported
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
  • 1 x Micro SD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 1 x Recovery switch
  • 1 x Reset button
  • 1 x Power button
  • 1 x 12 VDC power input connector
  • 2 x SMA-type antenna connector
Power Supply
  • 12 VDC screw type
Watchdog Timer
  • Built-in Xavier NX
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -30°C to +50°C (-22°F to +122°F)
Relative Humidity
  • 10% - 95%, non-condensing
Vibration
  • 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)
  • 147.4 x 129.8 x 34.6 mm (5.8" x 5.11" x 1.36")
Weight (net/gross)
  • TBC
Certifications
  • CE, FCC Class A
EOS Support
  • Linux Ubuntu 18.04
Mounting
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit
