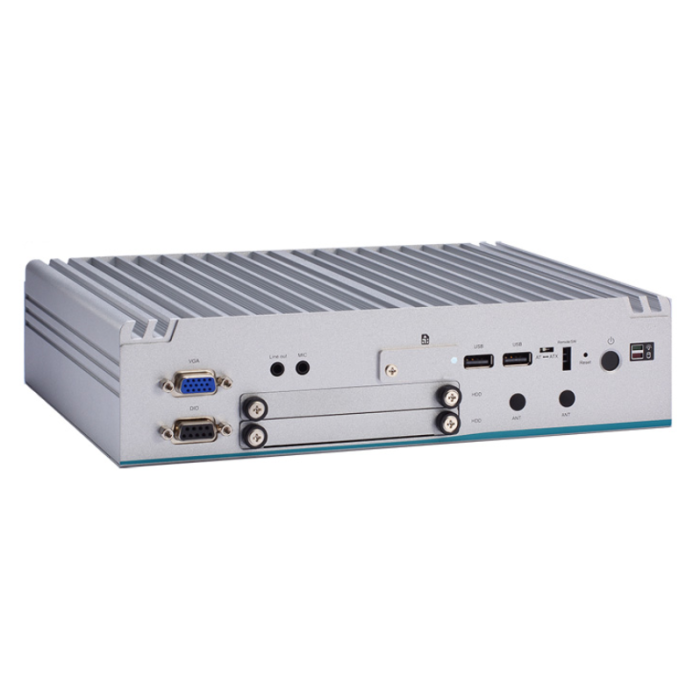

eBOX630-528-FL Fanless Embedded System
eBOX630-528-FL Fanless Embedded System
Fanless Embedded System with 8th Gen Intel® Core™ i7/i5/i3 & Celeron® ULT Processor, 2 HDMI, 1 VGA, 3 GbE LAN, 6 USB, Dual PCI Express Mini Card Slots and 9 to 36 VDC
Description
8th gen Intel® Core™ i7/i5/i3 & Celeron® ULT processor (Whiskey Lake-U)
Dual-channel DDR4 2400 SO-DIMM for up to 32GB of memory
Supports 2 HDMI, VGA, 3 GbE LAN, 4 COM and 6 USB
Trusted platform module (TPM 2.0 onboard)
-40°C to +70°C operating temperature range
9 to 36 VDC wide range DC power input
AMS.AXView intelligent remote monitoring software supported
More Information
|
Brand |
Axiomtek |
|
Specifications |
| CPU |
- Intel® Core™ i7-8665UE/i5-8365UE/i3-8145UE & Celeron® 4305UE (TDP up to 15W)
|
| Chipset |
|
| System Memory |
- 2 x 260-pin DDR4-2400 SO-DIMM, up to 32GB
|
| BIOS |
|
| COM |
- 2 x RS-232/422/485
- 2 x RS-232
|
| USB |
- 2 x USB 3.2 Gen2
- 2 x USB 3.2 Gen1
- 2 x USB 2.0
|
| Ethernet/PoE |
- 3 x 10/100/100 Mbps Ethernet (Intel® i219LM, Intel® i211AT)
|
| Display |
- 2 x HDMI (lockable)
- 1 x VGA
|
| Digital I/O |
- 8-CH TTL DIO via DB9 female
|
| Audio |
- 1 x Audio (Mic-in/Line-out)
|
| Storage |
- 2 x Hot swappable 2.5” HDD drive bay (max. up 9.5 mm height)
- 1 x mSATA (enabled in BIOS setting)
|
| Expansion |
- 2 x Full-size PCI Express Mini Card
- Slot A (USB + PCIe signal)
- Slot B (USB + PCIe + SATA signal)
|
| Others |
- TPM 2.0
- 1 x Phoenix type VDC power input connector
- 1 x ATX power switch
- 1 x AT/ATX quick switch
- 1 x Remote power switch
- 1 x Reset switch
- 1 x Front-access SIM slot
- 4 x SMA-type antenna opening
|
| Power Supply |
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP40
|
| Operating Temperature |
- -40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow
- -40°C to +65°C (-40°F to +149°F) with 0.5 m/s air flow (with W.T. DRAM & SSD,CPU TDP 15W)
|
| Relative Humidity |
- 10% - 95%, non-condensing
|
| Vibration |
- IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
|
| Shock |
- IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
|
Dimensions
(W x D x H) |
- 250 mm (9.84”) (W) x 170 mm (6.69”) (D) x 60 mm (2.36”) (H)
|
| Weight (net/gross) |
- 1.38 kg (3.04 lb)/2.08 kg (4.59 lb)
|
| Certifications |
|
| EOS Support |
|
| Software Support |
|
| Mounting |
- Wall mount kit
- DIN-rail kit
|
|
