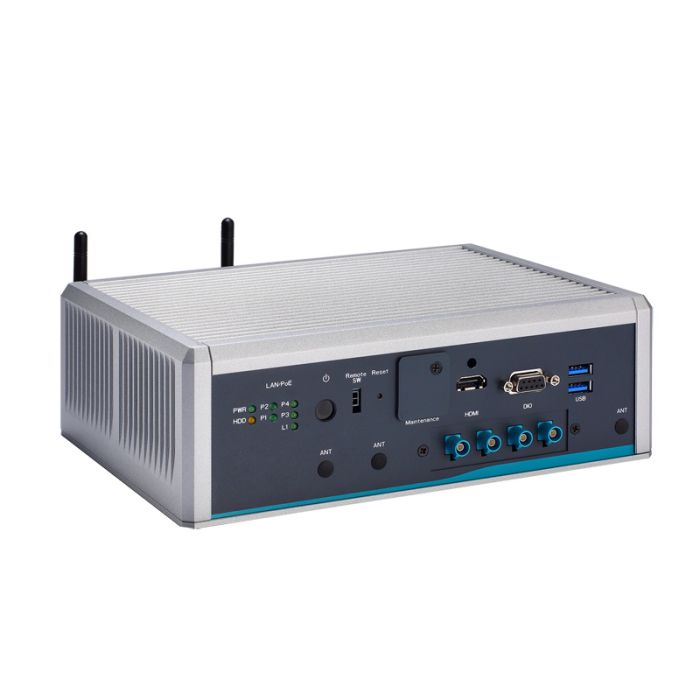

AIE900-XNX Fanless Edge AI System NVIDIA Jetson Xavier NX PoE

The AIE900-XNX has a powerful and effective 384-core NVIDIA Volta architecture GPU and 6-core NVIDIA Carmel ARM v8.2 (64-bit) processor that together provide up to 21 TOPS accelerated computing performance for running contemporary AI workloads. The advanced edge AI computing platform has one M.2 Key B slot for the 5G module to address the emerging demands for faster throughput, lower latency, and a higher density of connections. Additionally, it has one SIM slot for Wi-Fi, LTE, Bluetooth, and GPS, as well as one full-size PCIe Mini Card slot. Given the high-temperature operation and different voltage input requirements for use in sedans, buses, and trucks, it has an extended operating temperature range of -30°C to +60°C and 9 to 36 VDC power input with an optional ignition power control.

Key Features:

• NVIDIA Jetson Xavier NX with Volta GPU architecture with 384 NVIDIA CUDA cores
• Advanced edge AI platform for AMR, AGV, and computer vision
• Wide power input ranges from 9 to 36 VDC (ignition power control for option)
• Supports four GbE PoE for GigE camera and LiDAR connectivity
• Wide operating temperature range from -30°C to +60°C
• One M.2 Key B slot for 5G
• One 8-CH DI/DO and two DB9 for RS-232/422/485/CAN ports
