AIEdge-X500 Industrial AI Computer 8th/9th Gen - Optional NVIDIA Graphics

In stock
SKU:
AIEdge-X500
Brand: Nexcom

Industrial AI Computer Powered by 8th/9th Gen Intel Core Processor, with Large Storage and Optional NVIDIA Graphics Card


Enquire Now
Enquire about this product:

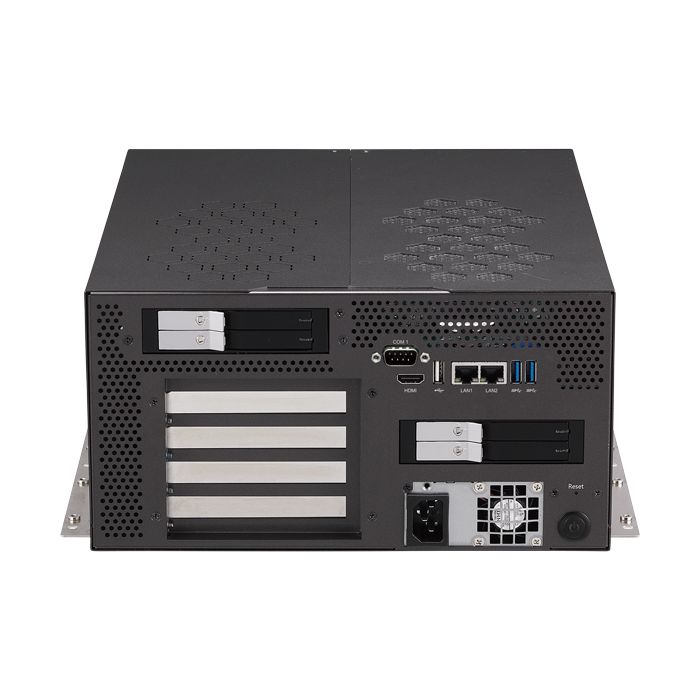

main product photo
We build to order

The AIEdge-X500 GPU-enhanced edge PC is powered by an 8th/9th Generation Intel Core processor and can handle strong multimedia content. Its dependable platform is also perfect for video capture, as it features a full-height, full-length PCIe x16 expansion slot that can accommodate frame grabbers and powerful graphics cards like the NVIDIA RTX 3090. There is also one PCI slot and one PCIe x4 slot for add-on cards. The AIEdge-X500 expandable computer is suitable for AI machine/deep learning, image optimisation, machine vision, and other AI applications, as well as providing stunning visuals for image presentations and meeting the needs of heavy imaging workloads.

Key Features

  • LGA1151 socket for 8th/9th Gen Intel® CoreTM processor (35W/65W/95W*)
    * If 95W CPU is desired, please select P/N: 10W20X50001X0
  • 4 x 2.5 inch HDD/SSD slot, supports RAID 0/1/5/10
  • Expandable PCIe x16/PCIe x4/PCI slots, perfect for graphics cards
  • Suitable for all kinds of AI applications
  • 1 x Intel I219-LM GbE PHY and 1 x Intel® I211 Gigabit Ethernet Controller
  • Supports Intel AMT

This product is listed in Industrial Automation, Mining, Nexcom, Embedded Computers
Specifications
CPU Support 8th Coffee Lake
- Socket Type: FCLGA115
- CPU: i3-8100T
- Cache: 6M
- Cores: 4
- Threads: 4
- Base Frequency: 3.1GHz
- TDP: 35W8th Coffee Lake
- Socket Type: FCLGA1151
- CPU: i5-8500T
- Smart Cache: 9M
- Cores: 6
- Threads: 6
- Base Frequency: 2.1GHz
- TDP: 35W8th Coffee Lake
- Socket Type: FCLGA1151
- CPU: i7-8700T
- Smart Cache: 12M
- Cores: 6
- Threads: 12
- Base Frequency: 2.4GHz
- TDP: 35W9th Coffee Lake Refresh
- Socket Type: FCLGA1151
- CPU: i3-9100TE
- Smart Cache: 6M
- Cores: 4
- Threads: 4
- Base Frequency: 2.2GHz
- TDP: 35W9th Coffee Lake Refresh
- Socket Type: FCLGA1151
- CPU: i5-9500TE
- Smart Cache: 9M
- Cores: 6
- Threads: 6
- Base Frequency: 2.2GHz
- TDP: 35W9th Coffee Lake Refresh
- Socket Type: FCLGA1151
- CPU: i7-9700TE
- Smart Cache: 12M
- Cores: 8
- Threads: 8
- Base Frequency: 1.8GHz
- TDP: 35W8th Coffee Lake
- Socket Type: FCLGA1151
- CPU: i3-8300
- Smart Cache: 8M
- Cores: 4
- Threads: 4
- Base Frequency: 3.7GHz
- TDP: 65W8th Coffee Lake
- Socket Type: FCLGA1151
- CPU: i5-8500
- Smart Cache: 9M
- Cores: 6
- Threads: 6
- Base Frequency: 3.0GHz
- TDP: 65W8th Coffee Lake
- Socket Type: FCLGA1151
- CPU: i7-8700
- Smart Cache: 12M
- Cores: 6
- Threads: 12
- Base Frequency: 3.2GHz
- TDP: 65W9th Coffee Lake Refresh
- Socket Type: FCLGA1151
- CPU: i3-9300
- Smart Cache: 8M, Cores: 4
- Threads: 4
- Base Frequency: 3.7GHz
- TDP: 65W9th Coffee Lake Refresh
- Socket Type: FCLGA1151
- CPU: i5-9500
- Smart Cache: 9M, Cores: 6
- Threads: 6
- Base Frequency: 3.0GHz
- TDP: 65W9th Coffee Lake Refresh
- Socket Type: FCLGA1151
- CPU: i7-9700
- Smart Cache: 9M, Cores: 8
- Threads: 8
- Base Frequency: 3.0GHz
- TDP: 65W8th Coffee Lake
- Socket Type: FCLGA115
- CPU: i7-9700K
- Cache: 12M
- Cores: 8
- Threads: 8
- Base Frequency: 3.6GHz
- TDP: 95W8th Coffee Lake
- Socket Type: FCLGA115
- CPU: i9-9900K
- Cache: 16M
- Cores: 8
- Threads: 16
- Base Frequency: 3.6GHz
- TDP: 95W
Chipset Intel® PCH Q370
Graphics Intel® HD Graphics 630 series
Main Memory 2 x 260-pin SO-DIMM sockets, supports DDR4 2400/2666 non-ECC, unbuffered memory up to 64G (single socket max. 32GB)
I/O Interface – Internal 3 x COM, supports RS2322 x USB 3.1 via box header6 x USB 2.0 via JST connector8-Channel GPIO
I/O Interface – Front 1 x Power button with LED1 x Reset button1 x HDMI 2.02 x USB 3.01 x USB 2.02 x RJ45 with LEDs for Gigabit LAN (Intel® I219-LM GbE PHY and Intel® I211 Gigabit Ethernet controller)1 x COM4, supports RS232/422/485
Graphics & Display Intel® UHD Graphics 630 (internal)Optional NVIDIA graphics card display via PCIe x16 (up to RTX 3090)
Graphics Card Dimensions Supports up to 327 x 140 x 55.6 mm card dimensions (350W GPU)
Storage 4 x SATA 2.5” HDD/SSD with RAID 0/1/5/10M.2 2280 Key M (SATA/PCIe)
Expansion 1 x PCIe x16 slot1 x PCIe x4 slot1 x PCI slot
Power Supply 1 x internal 800W ATX power supplyInput: 100VAC to 240VACOutput: +12VDCSupports AT/ATX via jumper setting (default: ATX)
Environment Operating temperature: 0°C to 45°C (active cooling design)Storage temperature: -20°C to 80°CHumidity: 10 to 90% (non-condensing)Shock protection: 50G peak acceleration, 11ms according to IEC60068-2-27Vibration protection: Random: 2Grms @ 5~500 Hz, IEC60068-2-64 (with SSD) Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6 (with SSD)
Certifications CE ApprovalFCC Class ALVD
Dimensions 360mm x 290mm x 150mm (L x W x H)
Operating System Support Win10/Linux
