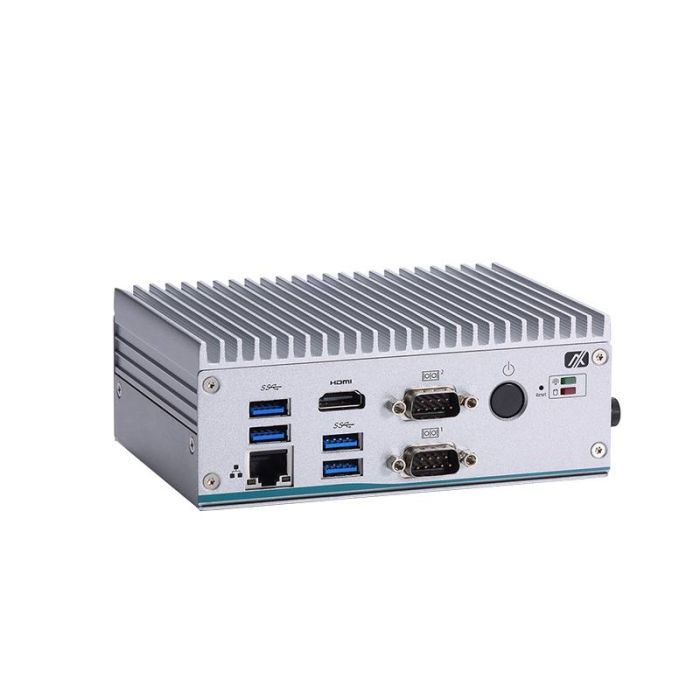

eBOX560-512-FL - i5-7300U, 2x HDMI, TPM 1.2

In stock
Brand: Axiomtek

Fanless Embedded System with Intel® Core™ i5-7300U & Celeron® 3965U, 2 HDMI, 2 GbE LANs, 4 USB 3.0 and PCI Express Mini Card Slot

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

The eBOX560-512-FL is powered by the Intel® Core™ i5-7300U/i3-7100U or Celeron® 3965U CPU. The fanless embedded box PC supports one 260-pin DDR4-2133 SO-DIMM socket with up to 16 GB system memory. Two HDMI ports with up to 4K resolution are supported for dual independent display applications, 2 GbE LANs, 4 USB 3.0 and PCI Express Mini Card Slot

● Intel® Core™ i5-7300U 3.5 GHz & Celeron® 3965U 2.2 GHz

● Supports 2 COM, 2 GbE LAN and 4 USB 3.0

● One swappable 2.5" HDD drive bay

● 2 HDMI with dual-view supported

● AXView 2.0 intelligent remote monitoring software for IIoT

● Ultra-compact enclosure design

● Trusted Platform Module 1.2 (TPM) 1.2

Embedded Computers

Standard Color



Aluminum extrusion and heavy-duty steel, IP40


Intel® Core™ i5-7300U 3.5 GHz

Celeron® 3965U 2.2 GHz

System Memory

1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB


SoC integrated



System I/O Outlet

2 x RS-232/422/485

2 x HDMI

2 x 10/100/1000 Mbps Ethernet (Intel® i210-AT, i219-LM)

4 x USB 3.0

2 x SMA-type antenna connector

1 x AT/ATX quick switch

1 x ATX power switch

1 x Reset button

1 x Screw type VDC power input connector

Watchdog Timer

255 levels, 1 to 255 sec.


1 x 2.5” SATA HDD drive bay (max. up 9.5 mm height)

1 x mSATA (enabled in BIOS setting)

Expansion Interface

1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)


TPM 1.2

System Indicator

1 x green LED for system power-on

1 x yellow LED for HDD active

Power Input

12 VDC

Operating Temperature

-10°C to +50°C (+14°F to +122°F) (with W.T. DRAM/SSD)


10% to 90%, non-condensing

Vibration Endurance

3 Grms with SSD (5 to 500 Hz, X, Y, Z directions)


141.6 mm (5.57") (W) x 106 mm (4.17") (D) x 54.85 mm (2.15") (H)


(net/gross) 0.8 kg (1.76 lb)/1.67 kg (3.68 lb)


CE, FCC Class A

EOS Support

Win 10 IoT, Linux, AXView 2.0
