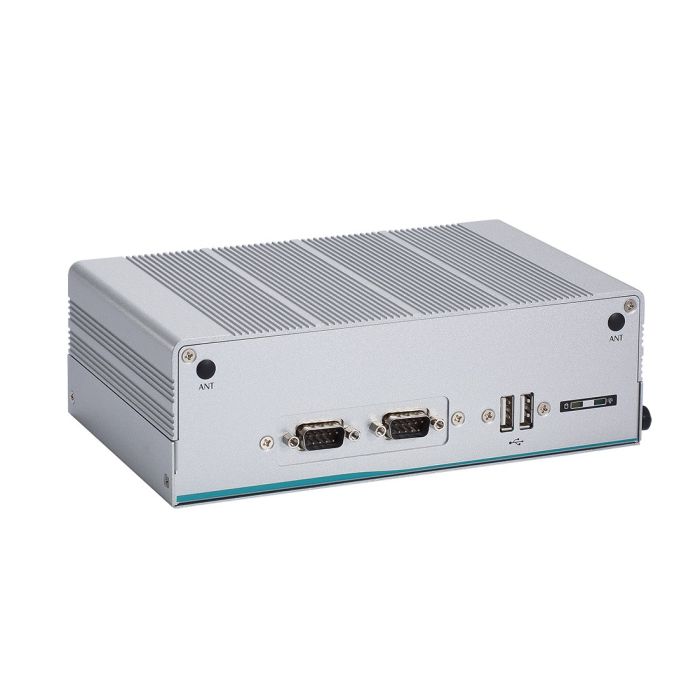

eBOX627-312-FL Pentium N4200 9~36vDC

Standard Color

Silver

Construction

Aluminum extrusion and heavy-duty steel, IP40

CPU

IntelR CeleronR Processor N3350 2.4 GHz Intel® Pentium® Processor N4200, 2.5 GHz

System Memory

1 x 204-pin DDR3L-1866 SO-DIMM, up to 8GB

Chipset

SoC integrated

BIOS

AMI

System I/O Outlet

2 x RS-232/422/485

2 x RS-232

1 x HDMI (lockable)

2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT)

2 x USB 2.0

4 x USB 3.0

4 x SMA-type antenna connector

1 x Phoenix type VDC power input connector

1 x AT/ATX switch

1 x ATX power switch

1 x Flexible I/O Window (default : 2 x DB9 half cut bracket)

Watchdog Timer

65536 levels, 1 to 65535 sec.

Storage

1 x 2.5” HDD/SSD bay (max. up 9.5 mm height)

1 x mSATA (enabled in BIOS setting)

Expansion Interface

2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)

1 x SIM slot

TPM

TPM 1.2

System Indicator

1 x green LED for system power-on

1 x yellow LED for HDD/SSD active

Power Input

9 to 36 VDC

Operating Temperature

Turbo Mode -20°C to +65°C (-4°F to +149°F) (with W.T. SSD/DRAM for 9 to 36 VDC) (default) Non-turbo Mode -20°C to +70°C (-4°F to +158°F) (with W.T. SSD/DRAM for 12 or 24 VDC)

Humidity

10% to 95%, non-condensing

Shock

IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)

Dimensions

200 mm (7.87”) (W) x 120 mm (4.72”) (D) x 65 mm (2.55”) (H)

Weight

(net/gross) 1.38 kg (3.04 lb)/2.08 kg (4.59 lb)

Certifications

CE, FCC Class A

EOS support

Win 10 IoT, Linux, AXView 2.0
