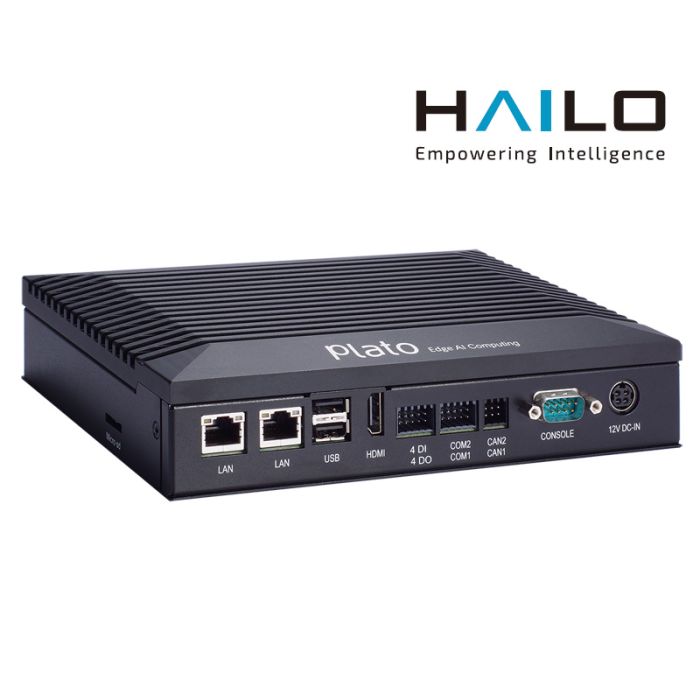

RSC100 ARM-based Fanless Edge AI PC w/ Hailo-8 Processor, HDMI, GbE LAN, COM, DIO, CANbus
In stock
SKU:
RSC100
Brand: Axiomtek
ARM-based Fanless Edge AI Computer with Hailo-8 Processor, HDMI, GbE LAN, COM, DIO, CANbus
Downloads:
Enquire Now
Enquire about this product
To maximise performance, density, and throughput for critical workloads, the RSC100 (Plato) comes with flexible and capable storage, including a 16GB eMMC onboard, an M.2 Key M 2280 SATA SSD slot with PCIe x4 NVMe interface, and a Micro SD slot. The RSC100 (Plato) has dual GbE ports, allowing IP cameras and LiDAR to connect with more bandwidth for video analytics. For additional expansion, the edge computing appliance has two full-size PCIe Mini Card slots, a SIM slot, and an M.2 Key B 3052 slot. Various peripheral modules, such as Wi-Fi/Bluetooth, 5G/4G/LTE, and additional storage, can be installed in these slots to expand functionality.
Key Features
- Hailo-8TM AI processor, up to 26 TOPS
- Advanced AI performance, ideal for smart city applications
- Dual GbE for GigE camera and LiDAR connectivity
- Dual COM/Dual CANbus/8-CH DI/DO
- Supports Wi-Fi/Bluetooth/5G/LTE wireless connection
- Wide operating temperature from -20°C to +70°C
- Supports Linux operating system
| CPU Board |
|
| CPU |
|
| GPU |
|
| Chipset |
|
| AI Accelerator |
|
| System Memory |
|
| COM |
|
| USB |
|
| Ethernet |
|
| Display |
|
| Digital I/O |
|
| Audio |
|
| Storage |
|
| Expansion |
|
| Others |
|
| Power Supply |
|
| Watchdog Timer |
|
| Construction |
|
| Operating Temperature |
|
| Relative Humidity |
|
| Vibration |
|
| Dimensions (W x D x H) |
|
| Weight (net/gross) |
|
| Certifications |
|
| EOS Support |
|
| Mounting |
|
