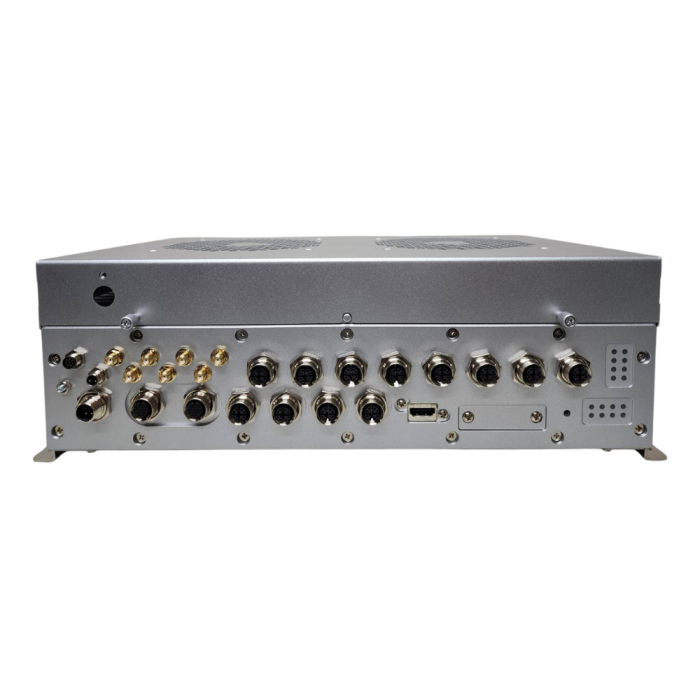

ATC3760-IP7-T48C/-T58CF NVIDIA Jetson Thor Rail Edge AI Computer

Product Overview

The NEXCOM ATC3760-IP7-T48C/-T58CF is a high-end NVIDIA Jetson AGX Thor™ Edge AI computer developed for rail, transport and advanced mobile vision applications requiring extensive PoE camera connectivity. Available with Jetson T4000 or T5000 processing, the system delivers up to 1200 or 2070 FP4 sparse TFLOPS for demanding AI workloads such as onboard video analytics, perception systems, passenger safety, inspection and autonomous mobility.

Designed for large sensor networks, the ATC3760-IP7-T48C/-T58CF includes 8 x 2.5GbE PoE+ M12 X-coded ports with a 120W PoE budget, alongside 1 x 2.5GbE and 1 x 10GbE Ethernet. This makes it particularly suited to multi-camera rail AI, LiDAR-connected perception and high-bandwidth data acquisition. A rugged IP67-rated platform, rail power input and extensive isolated I/O allow it to operate reliably in demanding transport environments.

Key Features

NVIDIA Jetson Thor AI Performance

• NVIDIA Jetson AGX Thor™ SoM platform

• T4000 model delivering up to 1200 FP4 sparse TFLOPS

• T5000 model delivering up to 2070 FP4 sparse TFLOPS

• 64GB 256-bit LPDDR5X on ATC3760-IP7-T48C

• 128GB 256-bit LPDDR5X on ATC3760-IP7-T58CF

• Built for advanced video analytics, multi-sensor AI, autonomous transport and rail safety systems

High-Capacity PoE Camera Connectivity

• 8 x 2.5GbE PoE+ M12 X-coded ports

• Up to 120W total PoE output

• Designed for IP cameras, LiDAR sensors and multi-camera AI perception

• Additional 1 x 2.5GbE M12 X-coded Ethernet port

• Additional 1 x 10GbE M12 X-coded Ethernet port

High-Speed Storage and Expansion

• 1 x 1TB M.2 2280 Key M NVMe SSD via PCIe 5.0 x4

• 1 x M.2 Key B 3042/3050/3052 slot for LTE/5G with dual SIM

• 1 x M.2 Key E slot for Wi-Fi and Bluetooth

• 1 x mini PCIe slot for further communication or I/O expansion

Industrial I/O and Positioning

• 1 x HDMI output

• 2 x USB 3.2 ports plus OTG

• GNSS with 1PPS using u-blox M9N, with optional M9V, F9P or F9R support

• 2 x isolated RS-232/422/485 serial interfaces

• 1 x console port

• 2 x isolated CAN FD SIC on ATC3760-IP7-T48C

• 4 x isolated CAN FD SIC on ATC3760-IP7-T58CF

• 4 x isolated DI and 4 x isolated DO

Rail-Ready Rugged Design

• IP67-rated enclosure

• Fanless operation for ATC3760-IP7-T48C

• Redundant fan kit for ATC3760-IP7-T58CF

• Rackmount 2U compatible

• Operating temperature range of -25°C to 60°C

• Designed for rolling stock, rail AI, transport surveillance and rugged machine vision systems

Power and Certifications

• 9~36VDC power input with ignition control

• 24VDC rail power support

• Ubuntu Linux x64 22.04 with JetPack 7.0

• CE, FCC, E-Mark, EN50155, EN45545-2 and MIL-STD-810H compliance



Dimensions/Drawings

Coming soon...
