ATC3760-IP7-T4/-T5 NVIDIA Jetson Thor Rail Edge AI Computer

Product Overview

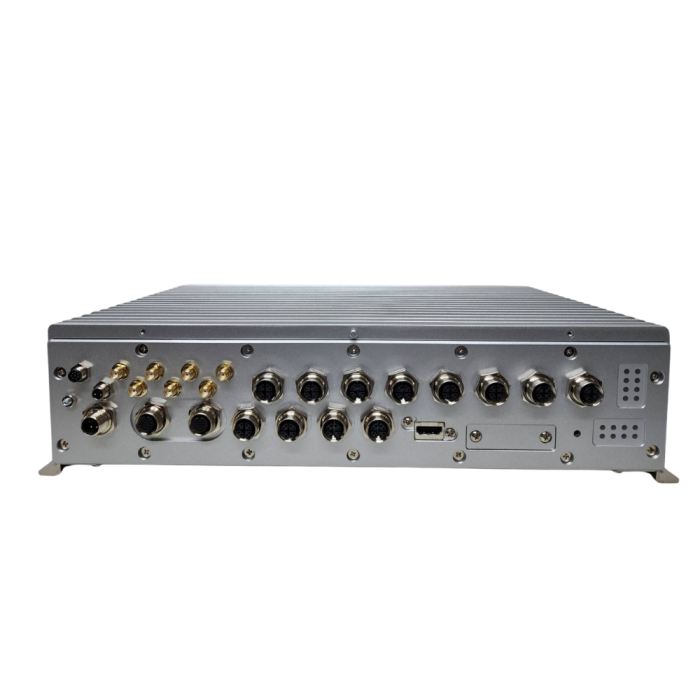

The NEXCOM ATC3760-IP7-T4/-T5 is a high-performance, rail-certified Edge AI computer built around the NVIDIA Jetson AGX Thor™ platform. Designed for demanding rolling stock, intelligent transport and mobile AI deployments, it supports either the Jetson T4000 or T5000 module, delivering up to 1200 or 2070 FP4 sparse TFLOPS for advanced real-time inference workloads.

Its rugged IP67-rated, fanless enclosure is suited to harsh operating environments, while a wide selection of high-speed networking and industrial I/O supports complex sensor-rich applications. With 2 x 10GbE, 1 x 2.5GbE, GNSS with 1PPS, isolated serial and CAN FD interfaces, plus LTE/5G and Wi-Fi expansion, the ATC3760-IP7-T4/-T5 is well suited to AI rail systems, multi-camera analytics, onboard perception, advanced telematics and transportation safety applications.

Key Features

NVIDIA Jetson Thor AI Performance

• NVIDIA Jetson AGX Thor™ SoM platform

• T4000 model delivering up to 1200 FP4 sparse TFLOPS

• T5000 model delivering up to 2070 FP4 sparse TFLOPS

• 64GB 256-bit LPDDR5X on ATC3760-IP7-T4

• 128GB 256-bit LPDDR5X on ATC3760-IP7-T5

• Designed for high-throughput Edge AI, autonomous systems and real-time sensor fusion

High-Speed Storage and Expansion

• 1 x 1TB M.2 2280 Key M NVMe SSD via PCIe 5.0 x4

• 1 x M.2 Key B 3042/3050/3052 slot for LTE/5G with dual SIM

• 1 x M.2 Key E slot for Wi-Fi and Bluetooth

• 1 x mini PCIe slot for additional expansion

Industrial Ethernet and Connectivity

• 1 x 2.5GbE M12 X-coded Ethernet port

• 2 x 10GbE M12 X-coded Ethernet ports

• 1 x HDMI output

• 2 x USB 3.2 ports plus OTG

• GNSS with 1PPS using u-blox M9N, with optional M9V, F9P or F9R support

Rugged Rail-Ready Design

• Full IP67-rated enclosure

• Fanless cooling architecture

• Rackmount 2U compatibility

• Operating temperature range of -25°C to 60°C

• Built for rolling stock, wayside rail, intelligent transport and harsh mobile environments

Industrial I/O and Vehicle Integration

• 2 x isolated RS-232/422/485 serial interfaces

• 1 x console port

• 2 x isolated CAN FD SIC on ATC3760-IP7-T4

• 4 x isolated CAN FD SIC on ATC3760-IP7-T5

• 4 x isolated digital inputs

• 4 x isolated digital outputs

Power and Certifications

• 9~36VDC power input with ignition control

• 24VDC rail power support

• Ubuntu Linux x64 22.04 with JetPack 7.0

• CE, FCC, E-Mark, EN50155, EN45545-2 and MIL-STD-810H compliance



Dimensions/Drawings

Coming soon...
