ATC3560-IP7-NXAI4CR NVIDIA Jetson Orin NX Edge AI Computer
NVIDIA Jetson Orin™ NX Solution Accelerated Edge AI Computer
Key Features:
- NVIDIA Jetson Orin NX SoM, up to 100 INT8 Sparse TOPS AI performance
- 4 x GbE PoE+ port for IP CAM/LiDAR sensors
- HEVC/H.265 hardware codec, 18 x 1080p30 compute power (decoded)
- Rugged, fanless design with a full IP67 rating
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity, 128GB SSD in default
- NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
- Expansible for LTE/5G NR & Wi-Fi 5/6
- 24V rail DC-in with ignition control & OCP/OVP
- CE/FCC, UKCA, and EN 50155 certified
Description
Product Overview

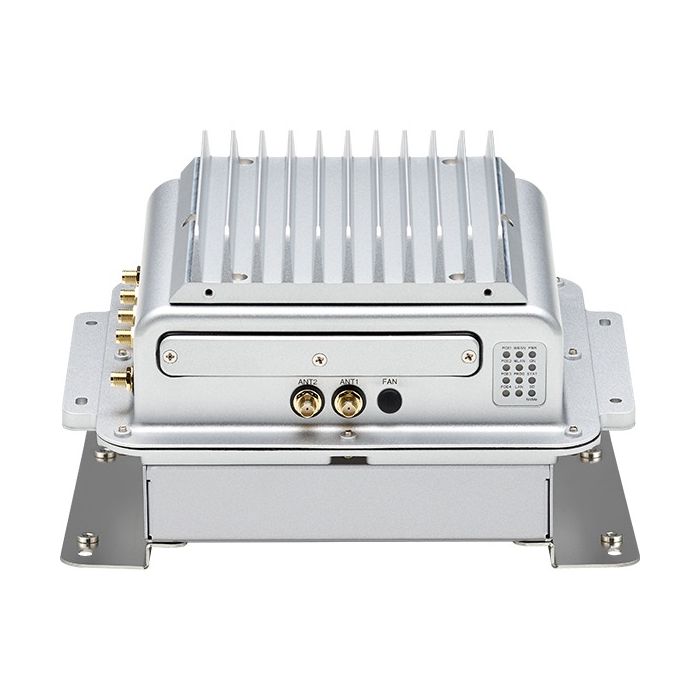

The NEXCOM ATC3560-IP7-NXAI4CR is a rugged edge AI telematics computer designed for harsh mobile, rail and industrial environments requiring secure connectivity and real-time sensor processing. Powered by the NVIDIA Jetson Orin NX platform, it delivers strong AI inference performance for applications such as multi-camera video analytics, ADAS support, autonomous mobile systems, intelligent transport monitoring and sensor fusion. Its sealed IP67-rated enclosure, vehicle-grade power design and M12 connector interfaces make it well-suited for demanding outdoor deployments where vibration, moisture and environmental exposure are common.
Key Features
High Performance AI
-
NVIDIA Jetson Orin NX system on module for real-time AI inference and edge analytics
-
Supports object detection, tracking, multi-camera processing and sensor fusion workloads
-
Hardware-accelerated video decoding for efficient handling of high-resolution streams
-
NVMe storage support for fast data access, logging and AI model loading
Rugged and Reliable Design
-
Fully sealed IP67 enclosure for protection against dust, water and outdoor exposure
-
Fanless thermal design for long-term stability and reduced maintenance
-
Wide operating temperature support for transport and industrial environments
-
Built to withstand vibration and shock conditions in rolling stock and vehicle deployments
Power and Connectivity
-
Wide DC input range with ignition control and protective circuits for vehicle electrical systems
-
M12 X-coded Ethernet and PoE connectivity designed for rugged transport installations
-
Provides power to IEEE 802.3af/at standard PoE devices and supports power management
-
Rich I?O, including USB, isolated CAN bus, serial communication, digital inputs and outputs, OTG and HDMI
Wireless Expansion
-
Support for optional LTE, 5G NR and Wi Fi modules for continuous field connectivity
-
Dual SIM design for network redundancy and improved uptime
-
GNSS positioning support for fleet tracking, routing and location-based services
Certifications and Compliance
-
Designed for intelligent transportation, rail and industrial edge deployments
-
Suitable for environments requiring sealed enclosure protection and transport-grade reliability
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
ATC 3560-IP7-NXAI4CR (P/N: 10AT0356005X0)
IP67 rating AI edge computer, NVIDIA Jetson Orin™ NX 8GB, 128GB NVMe, 4 x PoE+, 1 x GbE, 2 x RS-232, 2 x USB 3.2, DC 24V w/ power isolation, rail
ATC 3560-IP7-NXAI4CR-16 (P/N: 10AT0356006X0)
IP67 rating AI edge computer, NVIDIA Jetson Orin™ NX 16GB, 128GB NVMe, 4 x PoE+, 1 x GbE, 2 x RS-232, 2 x USB 3.2, DC 24V w/ power isolation, rail
