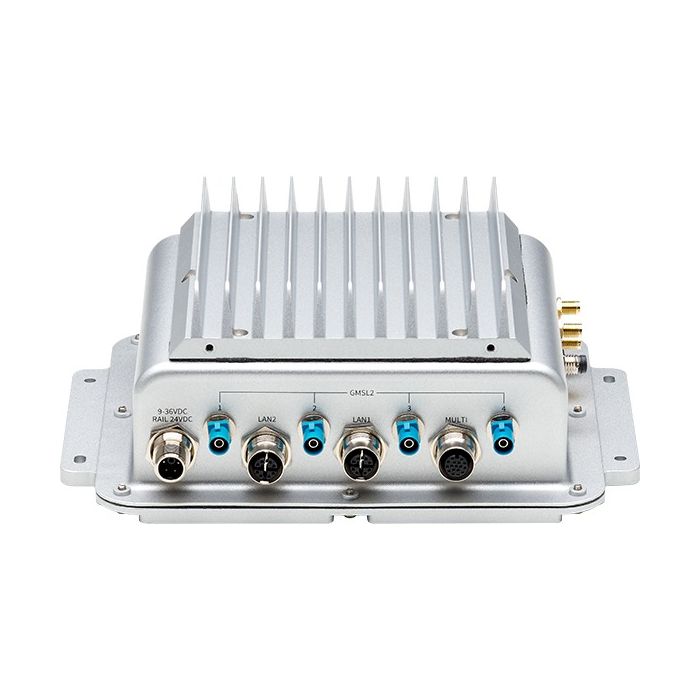

ATC3562-IP7-NA4M NVIDIA Jetson Orin Nano Edge AI Computer
NVIDIA® Jetson Orin Nano™ Solution Accelerated Edge AI Computer
Key Features:
- Built-in NVIDIA® Jetson Orin Nano™ 8GB SoM, up to 67 TOPS AI performance in Super Mode
- Rugged, fanless design with IP67 rating
- 4-CH GMSL2 & 2 x GbE for camera & LiDAR sensors
- HEVC/H.265 hardware decode, supports up to 11 x 1080p@30Hz
- Wide range operating temperature of -25°C~65°C
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
- Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
- DC 9V~36V & 24V rail combined, ignition control and OCP/OVP
- NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
- Military standard of MIL-STD-810H for anti-vibration/shock
- CE/FCC UKCA, E-mark, EN 50155 & EN 45545-2 certified
Description
Product Overview
The NEXCOM ATC 3562 IP7 NA4M is an IP67-rated edge AI telematics computer designed for vehicle, rail and outdoor industrial environments. Powered by the NVIDIA Jetson Orin NX platform, it delivers strong AI inference capability for applications such as multi-camera video analytics, ADAS support, object detection, sensor fusion and real-time telematics. The unit features multiple PoE network ports, wide temperature capability, a sealed enclosure and a wide range DC power input, making it suitable for harsh and mobile deployments. With flexible wireless expansion, GNSS positioning and a rich I/O set, it is designed for demanding edge computing tasks in transportation and intelligent mobility systems.
Key Features
High Performance AI
-
NVIDIA Jetson Orin NX system on module for real-time AI processing
-
High inference capability for object detection, multi-camera analytics and machine vision
-
Hardware-accelerated video decoding for efficient processing of multiple HD streams
-
NVMe storage support for fast data access and AI model handling
Rugged and Reliable Design
-
Fully sealed IP67 enclosure for dust and water protection
-
Fanless thermal design for long-term reliability
-
Wide operating temperature range suitable for outdoor or mobile conditions
-
Shock and vibration-resistant construction for rail and vehicle environments
Power and Connectivity
-
Wide DC input range with ignition control for transport installations
-
Four Gigabit Ethernet ports with PoE output
-
Provides power to 802.3af/at standard PoE devices and supports power management
-
USB, HDMI, serial interfaces, CAN bus and digital I/O for system integration
Wireless Expansion
-
Support for optional 5G, LTE and Wi Fi modules
-
Dual SIM capability for network redundancy
-
GNSS positioning options, including dead reckoning or high-accuracy positioning
Certifications and Compliance
-
Designed to meet environmental, electrical and safety requirements for vehicle and industrial use
-
Suitable for fleet, public transport, mobile video recording, roadside units and intelligent transport systems
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
ATC 3562-IP7-NA4M-8 (P/N: 10AT0356201X0)
IP67 rating AI edge computer, NVIDIA® Jetson Orin Nano™ 8GB, Super Mode, 128GB NVMe, 4 x GMSL2, 2 x GbE, 1 x RS-232, 2 x USB 3.2, DC 9V~36V/24V rail
