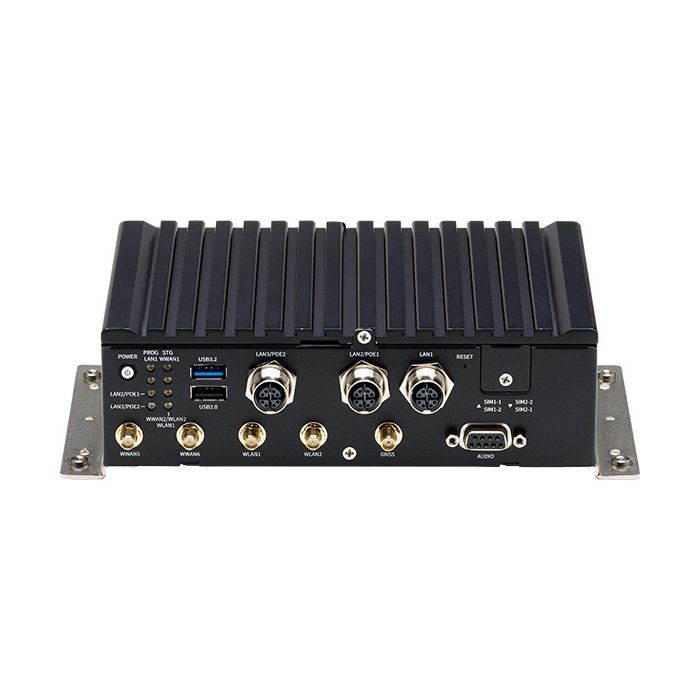

nROK1040 Fanless Rail Computer with Atom x7213RE
Intel Atom® x7213RE Processor Fanless Rolling Stock Computer
Key Features:
- Compact and fanless design
- 1 x Built-in CAN FD
- u-blox NEO-M9N onboard
- 4 x SIM card for WWAN modules
- Smart power management with ignition on/off delay via software, low voltage protection
- 2 x PoE 802.3af/at, up to total 30W (nROK 1040-AC2)
- Certified by CE, FCC, and EN 50155 Class OT4
Description
Product Overview
The NEXCOM nROK 1040-A and nROK 1040-AC2 are compact fanless railway and in-vehicle computers designed for rolling stock, transport systems and mobile edge applications. Powered by the Intel Atom x7213RE processor, they deliver efficient performance with enhanced graphics and multimedia capability. With integrated GNSS, wireless connectivity and vehicle interfaces, the system supports applications such as infotainment, wireless gateway, mobile surveillance and edge processing. Its rugged, compact design allows for easy installation in space-constrained environments while maintaining reliable operation in demanding conditions.
Key Features
Efficient and Reliable Platform
-
Intel Atom x7213RE processor with enhanced graphics and multimedia support
-
Designed for stable operation in transport and mobile environments
-
Suitable for infotainment, video processing and edge applications
-
Optimised for continuous operation in rolling stock systems
Advanced Connectivity and Wireless Support
-
Supports WiFi 5, WiFi 6 and WiFi 6E for high-speed wireless networking
-
WWAN support, including LTE and 5G NR, for wide area connectivity
-
Four nano SIM slots with external access for easy management
-
Enables reliable communication across multiple network providers
GNSS and Vehicle Integration
-
Integrated GNSS receiver supporting GPS, QZSS, GLONASS, Galileo and BeiDou
-
Onboard CAN FD interface for vehicle diagnostics and driver behaviour monitoring
-
Designed for integration with transport systems and vehicle networks
-
Supports real-time positioning and fleet management applications
PoE and Power Output (AC2 Model)
-
Dual IEEE 802.3af/at PoE ports for powering connected devices
-
Suitable for IP cameras, wireless access points and edge sensors
-
Provides additional DC 12 V output for external displays
-
Simplifies system integration and cabling in vehicle deployments
Rugged Compact Design
-
Fanless enclosure for silent operation and reduced maintenance
-
Compact form factor for easy installation in constrained spaces
-
Designed to withstand vibration and harsh transport environments
-
Suitable for rolling stock and mobile industrial applications
Flexible Application Support
The nROK 1040-A and AC2 are suitable for:
-
Railway and rolling stock systems
-
Wireless gateway and onboard networking
-
Infotainment and passenger information systems
-
Mobile video surveillance and recording
-
Edge computing in transport and industrial environments
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
nROK 1040-A (P/N: 10A00104000X0)
Intel Atom® x7213RE processor, 8GB DDR5 SO-DIMM, u-blox M9N GPS onboard, 1 x VGA, 1 x HDMI®, 3 x LAN, 2 x Full RS-232/422/485, 2 x RS-232 (Tx/Rx), 1 x CAN FD, 4 x DI, 4 x DO, 1 x USB 3.2, 1 x USB 2.0, 1 x Mic in, 1 x Line out
nROK 1040-AC2 (P/N: 10A00104001X0)
Intel Atom® x7213RE processor, 8GB DDR5 SO-DIMM, u-blox M9N GPS onboard, 1 x VGA, 1 x HDMI®, 1 x LAN, 2 x PoE, 2 x Full RS-232/422/485, 2 x RS-232 (Tx/Rx), 1 x CAN FD, 4 x DI, 4 x DO, 1 x USB 3.2, 1 x USB 2.0, 1 x Mic in, 1 x Line out
