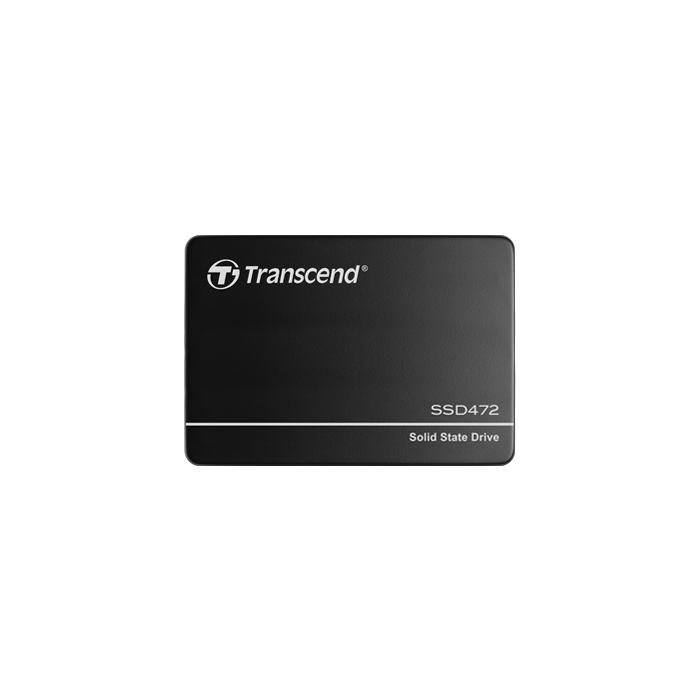

SSD472K & SSD472K-I 2.5" SATA SSDs
128GB/256GB/512GB/1TB/2TB/4TB 2.5" SATA & PATA SSDs
Key Features:
- Compliant with RoHS 2.0 standards
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
Description
Transcend's SSD472K features the SATA III 6Gb/s interface and 112-layer 3D NAND technology. Its built-in DRAM cache allows faster data access, while anti-sulfur resistors guarantee its reliability in harsh conditions. The SSD472K is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles and an extended operating temperature ranging from -20℃~75℃.
Transcend also offers the SSD472K-I with wide temperature (-40℃ ~ 85℃) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
Firmware Features
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode (optional)
Hardware Features
- Compliant with RoHS 2.0 standards
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
Download
More Information
| Brand | Transcend | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information
| 128GB | TS128GSSD472K-VS1 | 128GB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, extended temp.-20~75°C |
| 256GB | TS256GSSD472K-VS1 | 256GB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, extended temp.-20~75°C |
| 512GB | TS512GSSD472K-VS1 | 512GB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, extended temp.-20~75°C |
| 1TB | TS1TSSD472K-VS1 | 1TB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, extended temp.-20~75°C |
| 2TB | TS2TSSD472K-VS1 | 2TB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, extended temp.-20~75°C |
| 4TB | TS4TSSD472K-VS1 | 4TB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, extended temp.-20~75°C |
| 128GB | TS128GSSD472KI-VS1 | 128GB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, Wide Temp. -40~85°C |
| 256GB | TS256GSSD472KI-VS1 | 256GB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, Wide Temp.-40~85°C |
| 512GB | TS512GSSD472KI-VS1 | 512GB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, Wide Temp.-40~85°C |
| 1TB | TS1TSSD472KI-VS1 | 1TB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, Wide Temp.-40~85°C |
| 2TB | TS2TSSD472KI-VS1 | 2TB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, Wide Temp.-40~85°C |
| 4TB | TS4TSSD472KI-VS1 | 4TB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, Wide temp.-40~85°C |
