55BDL2050A 2000 Series/A-Line 55” UHD Android Display

Product Overview

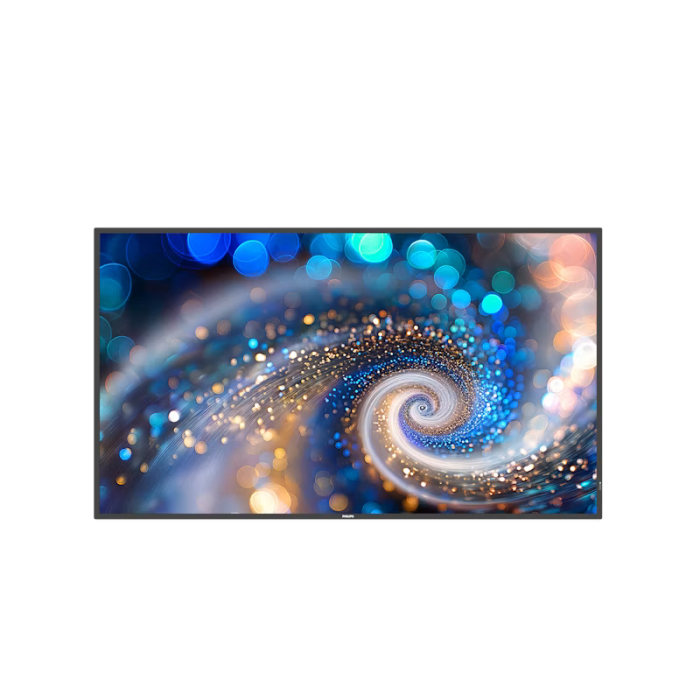

The Philips 55BDL2050A/00 Signage 2000 Series A-Line is a 55 inch UHD professional display designed for straightforward commercial signage applications. Built for 16/7 operation, it provides 3840 × 2160 resolution, 400 cd/m² brightness and Android 14 system on chip performance in a clean professional display platform. With HDMI, USB-C, USB playback, RJ45 control and portrait or landscape installation support, the 55BDL2050A/00 is well suited to retail signage, hospitality displays, corporate communications and public information screens.

Key Features

55 Inch 4K UHD Display

• 54.6 inch ADS panel

• 3840 × 2160 resolution at 60 Hz

• 400 cd/m² brightness

• 1200:1 typical contrast ratio

• 500,000:1 dynamic contrast ratio

• 178° horizontal and vertical viewing angles

• 1.07 billion display colours

• 1% haze

Android 14 System on Chip

• Integrated Android 14 operating system

• Quad core Cortex A73 CPU

• ARM Mali G52 MC1 graphics

• 3 GB RAM and 16 GB internal storage

• Supports simple signage playback without a separate media player

16/7 Commercial Operation

• Designed for daily commercial signage use

• Suitable for landscape and portrait placement

• 30,000 hour MTBF

• Operating temperature from 5°C to 40°C

• Storage temperature from -20°C to 60°C

• ECO mode for energy saving operation

Connectivity and Control

• HDMI 2.0 video input

• USB-C input with 4.5 W power delivery

• USB 3.0 connection for media playback

• RJ45 network control

• IR 3.5 mm jack and IR loopthrough

• 3.5 mm line out

USB Media Playback

• Supports video playback including MPEG, H.264, H.263, H.265, AVI, MP4, VP8, VP9, MPEG4 and WEBM

• Supports image playback including JPEG, BMP and PNG

• Supports audio playback including AAC, HEAAC and MPEG

• Suitable for simple local signage content delivery

Professional Signage Features

• Tiled Matrix support up to 3 × 3

• Lockable and hidden keyboard control

• Lockable remote control signal

• Optional WiFi and Bluetooth module

• Optional Philips ScreenShare licence support

• CE, CB and RoHS regulatory approvals

Applications and Use Cases

The 55BDL2050A/00 is suitable for:

• Retail digital signage

• Hospitality and reception displays

• Corporate communication screens

• Public information displays

• Education and campus signage

• Menu boards and promotional displays

• Simple networked signage installations



Dimensions/Drawings
