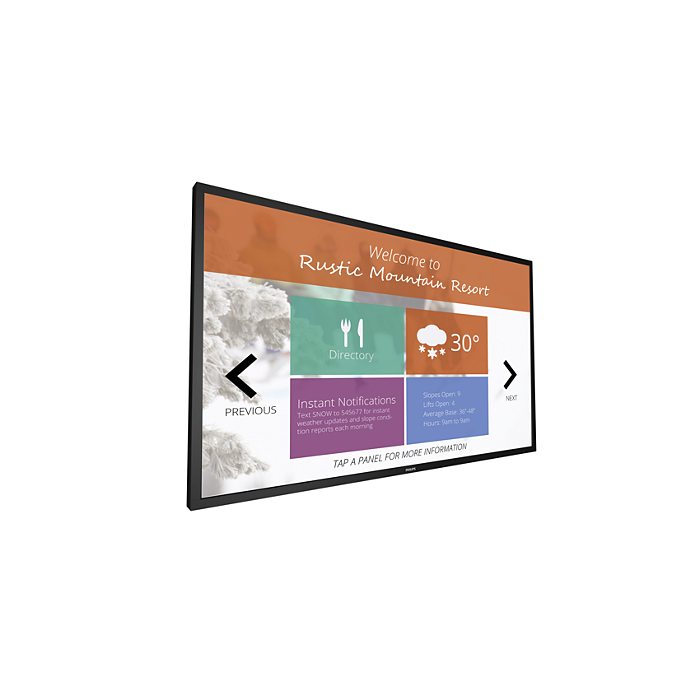

55BDL4051T 55" Full HD Touch Android Display

Connectivity

Video input

• DisplayPort (1.2)
• HDMI (x2)
• VGA (via DVI)
• DVI-I (digital + analogue) 1x

Video output

• DisplayPort
• DVI-I
• VGA (via DVI-I)

Audio input

3.5 mm jack

Audio output

3.5mm jack

External control

• RJ45
• IR (in/out) 3.5 mm jack
• RS232C (in/out) 2.5 mm jack

Other connections

• micro SD
• micro USB
• mPCIe
• USB, type A
• USB, type B

Supported Display Resolution

Computer formats

• 640 x 480, 60, 67, 72, 75Hz
• 800 x 600, 56, 60, 72, 75Hz
• 1024 x 768, 60Hz
• 1280 x 768, 60Hz
• 1280 x 800, 60Hz
• 1280 x 1024, 60Hz
• 1360 x 768, 60Hz
• 1366 x 768, 60Hz
• 1440 x 900, 60Hz
• 1600 x 1200, 60Hz
• 1920 x 1080, 60Hz
• 1920 x 1200, 60Hz
• 720 x 400, 70Hz
• 800 x 600, 60, 72, 75Hz

Video formats

• 480i, 60Hz
• 480p, 60Hz
• 576p, 50Hz
• 576i, 50Hz
• 720p, 50, 60Hz
• 1080i, 50, 60Hz
• 1080p, 50, 60Hz
• 1080i, 25, 30Hz
• 480i, 30, 60Hz
• 576i, 25, 50Hz

Convenience

Placement

• Landscape
• Portrait

Signal Loop Through

IR Loopthrough

Network controllable

• RS232
• RJ45
• One Wire (HDMI-CEC)
• HDMI (One Wire)

Picture performance

Advanced color control

Picture in picture

PIP

Screen saving functions

Pixel Shift, Low Brightness

Keyboard control

• Hidden
• Lockable

Remote control signal

Lockable

Energy saving functions

Smart Power

Other convenience

Carrying handles

Memory

16GB eMMC

Dimensions

Set Width

1271.0  mm

Set Height

741.8  mm

Set Depth

91.4  mm

Set Width (inch)

50.04  inch

Set Height (inch)

29.20  inch

Set Depth (inch)

3.60  inch

Product weight

31  kg

Product weight (lb)

68.34  lb

VESA Mount

400 x 400 mm, M6

Bezel width

29.2 mm

Sound

Built-in speakers

2 x 10W

Operating conditions

Temperature range (operation)

0 - 40degC (Landscape)/0 - 35degC (Portrait)  °C

Relative humidity

20 ~ 80(operation),5~95%(storage)  %

MTBF

50,000  hour(s)

Altitude

0 ~ 3000 m

Temperature range (storage)

-20~60  °C

Power

Mains power

100 ~ 240 VAC, 50/60Hz

Standby power consumption

<0.5W

Consumption (Typical)

76  W

Power Saving Features

Smart Power

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• Remote Control
• Batteries for remote control
• Quick start guide
• User manual on CD-ROM

Stand

Universal Stand (Large size)(Optional)

Included Accessories

Logo guide

Miscellaneous

On-Screen Display Languages

• Arabic
• English
• French
• German
• Italian
• Japanese
• Polish
• Spanish
• Turkish
• Russian
• Simplified Chinese
• Traditional Chinese
• Danish
• Dutch
• Finnish
• Norwegian
• Portuguese
• Swedish

Regulatory approvals

• BSMI
• CB
• CE
• EAC
• EnergyStar 7.0
• FCC, Class B
• PSB
• PSE
• UL/cUL
• VCCI

Warranty

3 year warranty
