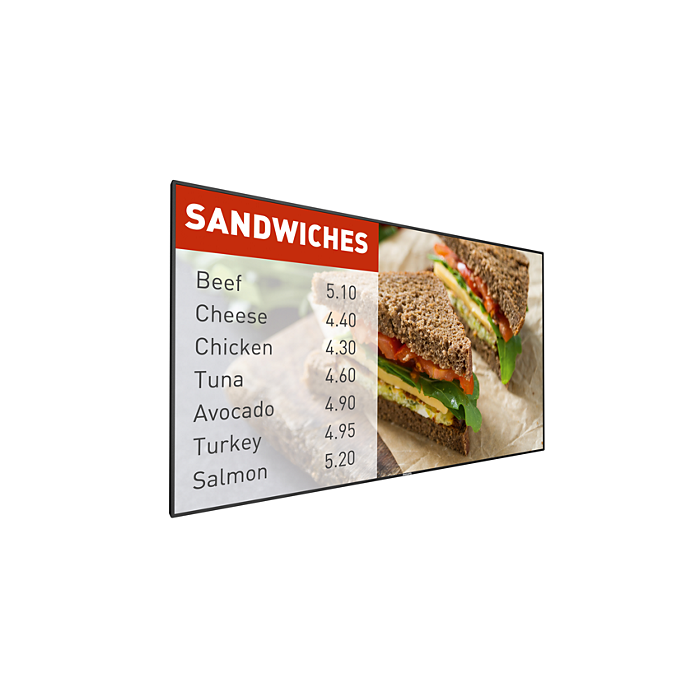

55BDL5057P 55" 24/7 Android Display

End of Life
SKU: 55BDL5057P
Signage Size
55"

P-Line Display 55" Powered by Android, 700cd/m2

Datasheet

Description

55" Powered by Android, 700cd/m2



  •     55"
  •     Powered by Android
  •     700cd/m2

Download

Datasheet

More Information

Brand Philips
Specifications
  • Diagonal screen size (inch)
    54.64  inch
    Diagonal screen size (metric)
    138.8  cm
    Panel resolution
    1920x1080p
    Optimum resolution
    1920 x 1080 @ 60Hz
    Brightness
    450  cd/m²
    Contrast ratio (typical)
    1300:1
    Dynamic contrast ratio
    500,000:1
    Aspect ratio
    16:9
    Response time (typical)
    8  ms
    Pixel pitch
    0.63 x 0.63 mm
    Display colors
    16.7 million
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Operating system
    Android 5.1.1

  • Connectivity

    Video input
    • Display Port1.2x1
    • DVI-I x 1
    • HDMI 1.4x2
    • USB 2.0 (Type A) x2
    • USB 2.0 (Type B )x1
    Video output
    • DisplayPort1.2x1
    • DVI-I x1
    Audio input
    3.5 mm jack
    Audio output
    3.5mm jack
    Other connections
    • micro SD x1
    • Micro USB(type B)x1
    • OPS
    External control
    • RJ45
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack

  • Supported Display Resolution

    Computer formats
    • 1920 x 1080, 60Hz
    • 1360 x 768, 60Hz
    • 1280 x 800, 60Hz
    • 1280 x 768, 60Hz
    • 1024 x 768, 60, 75Hz
    • 1280 x 1024, 60Hz
    • 1600 x 1200, 60Hz
    • 640 x 480, 60, 72, 75Hz
    • 720 x 400, 70Hz
    • 800 x 600, 60, 75Hz
    Video formats
    • 1080p, 50, 60Hz
    • 720p, 50, 60Hz
    • 576p, 50Hz
    • 480p, 60Hz
    • 1080i, 25, 30Hz
    • 480I, 30Hz
    • 576i, 25Hz

  • Dimensions

    Set Width
    1228.6  mm
    Set Height
    699.4  mm
    Set Depth
    71.1  mm
    Set Width (inch)
    48.4  inch
    Set Height (inch)
    27.6  inch
    Set Depth (inch)
    2.80  inch
    Bezel width
    9.5 mm (T/L/R) 15.6mm (B)
    Product weight (lb)
    55.6  lb
    Product weight
    25.2  kg
    VESA Mount
    400 x 400 mm, M6

  • Convenience

    Placement
    • Landscape
    • Portrait
    Tiled Matrix
    Up to 15 x 15
    Keyboard control
    • Hidden
    • Lockable
    Signal Loop Through
    • DVI
    • VGA
    • RS232
    • IR Loopthrough
    • DisplayPort
    Network controllable
    • RJ45
    • RS232
    • HDMI (One Wire)
    Energy saving functions
    Smart Power
    Screen saving functions
    Pixel Shift, Low Bright
    Ease of installation
    • AC Out
    • Carrying Handles
    Other convenience
    G sensor

  • Power

    Standby power consumption
    <0.5 W
    Mains power
    100 ~ 240 VAC, 50 ~ 60 Hz
    Consumption (Typical)
    76  W
    comsumption(Max)
    245 W

  • Operating conditions

    Temperature range (operation)
    0 ~ 40  °C
    Temperature range (storage)
    -20 ~ 60  °C
    Relative humidity
    20 ~ 80  %
    Altitude
    0 ~ 3000 m
    MTBF
    60,000  hour(s)

  • Sound

    Built-in speakers
    2 x 10W RMS

  • Accessories

    Included accessories
    • Remote Control
    • Batteries for remote control
    • Quick start guide
    • RS232 cable
    • AC Power Cord
    Stand
    BM04642/00(optional)
    Included Accessories
    • Edge Alignment Kit (1 )-2pcs
    • Edge Alignment Kit (2)-1pcs
    • Logo guide
    • Philips logo
    • RS232 daisy-chain cable
    • Thumbscrew (8pcs)

  • Multimedia Applications

    USB Playback Audio
    • AAC
    • M4A
    • MP3
    • WMA
    • MP1
    • MP2
    USB Playback Picture
    • BMP
    • GIF
    • JPEG
    • JPG
    • PNG
    USB Playback Video
    • MKV
    • MP4
    • MPG
    • TS
    • VOB
    • 3GP
    • AVI
    • DAT
    • FLV
    • MOV
    • WEBM

  • Miscellaneous

    On-Screen Display Languages
    • English
    • French
    • German
    • Spanish
    • Polish
    • Turkish
    • Russian
    • Italian
    • Simplified Chinese
    • Traditional Chinese
    • Arabic
    • Japanese
    • Danish
    • Dutch
    • Finnish
    • Norwegian
    • Portuguese
    • Swedish
    Regulatory approvals
    • EnergyStar 7.0
    • CE
    • FCC, Class B
    • UL/cUL
    • CCC
    • BSMI
    • CB
    • VCCI
    • CECP
    • EAC
    • EMF
    • PSB
    Warranty
    3 year warranty
