AC4990SXF Multi-Constellation Full-Band Precision GNSS Antenna
GPS L1, L2, L5 | QZSS L6 | GALILEO E1, E5a, E5b, E6 | BEIDOU B1, B2a, B2b, B3 | GLONASS G1, G2, G3 | NavIC L5 + L-Band
Key Features:
- Very low noise preamp (2.5 dB typ.)
- Low axial ratio (< 1.0 dB typ.)
- Tight phase centre variation (≤ 2 mm)
- High-gain LNA (30 dB typ.)
- Low current (17 mA typ.)
- ESD circuit protection (15 kV)
- Invariant performance from 2.5 to 16 VDC
Description
Product Overview

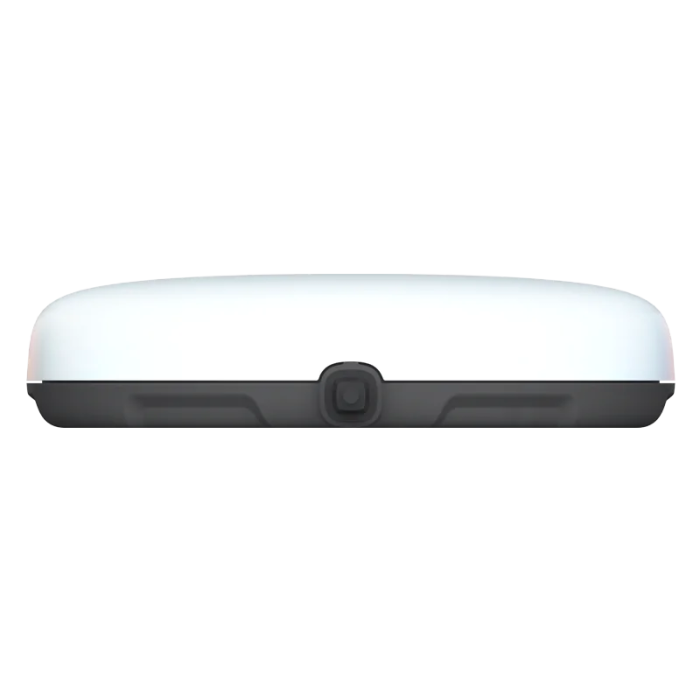

The Calian AC4990SXF is a low profile surface mount full band GNSS antenna designed for high accuracy positioning in vehicles, autonomous systems, robotics, precision agriculture and industrial equipment. Built on Accutenna 4 technology, it supports multi constellation GNSS reception across full band signals, helping deliver stable positioning performance for RTK, PPP and correction based systems. Unlike the pole mounted AC4990PXF, the AC4990SXF is designed for surface installation using 4 x M3 screws, magnetic mounting or adhesive tape, making it better suited to vehicle roofs, machine housings and equipment enclosures.
Key Features
Full Band Multi Constellation GNSS Support
-
Supports GPS, QZSS, GLONASS, Galileo, BeiDou and NavIC constellations
-
Compatible with L1, L2, L5, L6 and full band GNSS signals
-
Supports regional SBAS correction services
-
Compatible with L-band correction services for high accuracy positioning
Accutenna 4 Technology
-
Advanced stacked quad feed antenna architecture
-
Designed for strong multipath rejection and signal quality
-
Stable phase centre performance for precision positioning applications
-
Suitable for RTK and PPP systems requiring repeatable accuracy
Surface Mount Installation
-
Low profile housing designed for surface mounted applications
-
Mounting options include 4 x M3 screws, a magnet or adhesive tape
-
Suitable for vehicles, autonomous platforms, machinery and enclosures
-
Ideal where a compact fixed antenna is preferred over a survey pole mount
Extended Filtering Technology
-
XF filtering helps reduce interference from LTE and nearby RF sources
-
Supports clean GNSS signal reception in congested RF environments
-
Helps protect receiver performance near communication equipment
-
Designed for reliable operation in mobile and industrial deployments
High Accuracy Positioning Performance
-
Designed for centimetre level positioning applications
-
Strong signal tracking across multiple GNSS frequency bands
-
Suitable for precision navigation, timing and correction based systems
-
Supports consistent performance in field and mobile installations
Rugged Deployment Ready Construction
-
Durable enclosure designed for demanding outdoor environments
-
Suitable for long term installation on vehicles and equipment
-
Built for transport, agriculture and autonomous system applications
-
Designed to deliver reliable GNSS reception in real world deployments
Dimensions/Drawings
Download
More Information
| Brand | Calian Group | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
SKU: 33-AC4990SXF-xx-yyyy
Where xx = connector type; yyyy = cable length in mm
