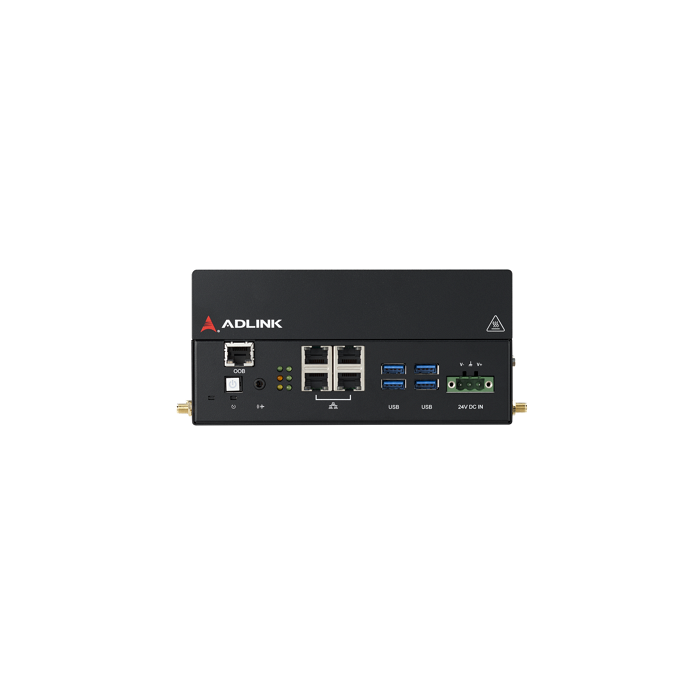

DLAP-411-Orin Jetson AGX Orin Edge AI Platform
Compact Jetson AGX Orin platform with high-density camera I/O for industrial AI and AMR applications.
Key Features:
- NVIDIA Jetson AGX Orin 32GB or 64GB
- Up to 275 TOPS AI performance
- 4 optional PoE GbE camera ports
- 4x USB 3.2 Gen2 Type-A
- Optional out-of-band management
Description
Product Overview
Compact Jetson AGX Orin platform with high-density camera I/O for industrial AI and AMR applications. Built around an NVIDIA Jetson module, the DLAP-411-Orin brings accelerated AI inference to the edge while retaining the industrial connectivity required for cameras, sensors and control equipment.
Its purpose-built hardware supports dependable deployment close to the data source, helping reduce latency and network traffic in computer vision, robotics and intelligent automation projects.
Key Features
- NVIDIA Jetson AGX Orin 32GB or 64GB
- Up to 275 TOPS AI performance
- 4 optional PoE GbE camera ports
- 4x USB 3.2 Gen2 Type-A
- Optional out-of-band management
- Compact fanless construction
Applications
- Industrial AI inference
- Autonomous mobile robots
- Multi-camera vision systems
- Remote-managed edge computing
Download
More Information
| Brand | ADLINK | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
| Manufacturer Part Number | Description |
|---|---|
| 93-45108-1010 | DLAP-411-Orin 32GB |
| 93-45108-0010 | DLAP-411-Orin 32GB with PoE PSE |
| 93-45108-2010 | DLAP-411-Orin 32GB with OOB |
| 93-45108-3010 | DLAP-411-Orin 64GB |
| 93-45108-4010 | DLAP-411-Orin 64GB with PoE PSE |
| 93-45108-2210 | DLAP-411-Orin 64GB with OOB |
| 93-45108-2110 | DLAP-411-Orin 64GB with 10GbE |
