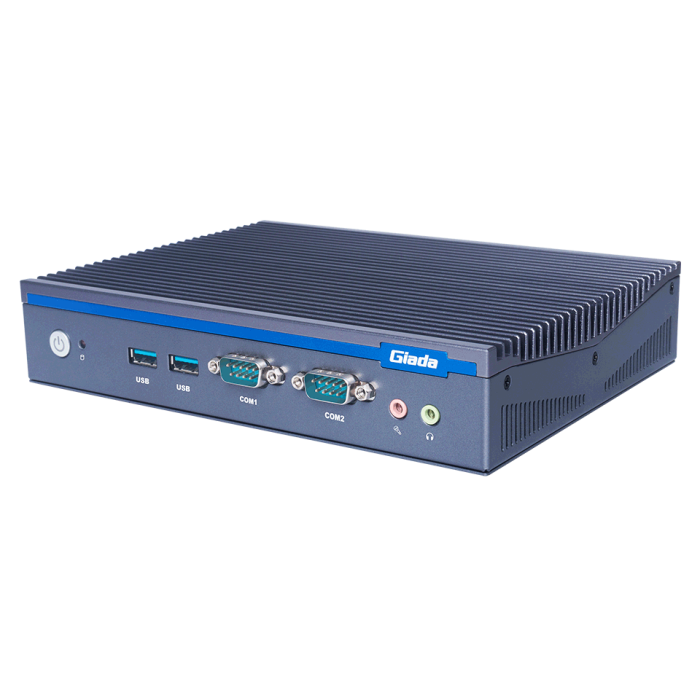

Shop AE613 Wide Temp Fanless Media Player

SKU: AF613-13x5U40N0G-GIA

Semi-industrial computer with Intel 13th Gen., Supports vPro Technology

Key Features:

Intel Raptor Lake-U Core processors
1 x DP (7680 x 4320 @60 Hz)
2 x HDMI (4096 x 2304 @60 Hz)
Support Intel® vPro® technology
Fanless design
Wide temperature and voltage
VESA mountable

Datasheet

Description

Intel® 13th Gen. Raptor Lake Processors High Computing Performance

Giada AE613, powered by Intel® Raptor Lake™ Core i3-1315U/i5-1335U processors, introduces a new era of performance and efficiency. The semi-industrial computer features a TDP of 15W, which provides superior processing power while minimizing energy consumption.

Semi-industrial PC

Giada AE613 is a semi-industrial PC supporting wide temperature (-20℃ ~60℃) and voltage (12 V~24 V) range. With 4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0 and two COM ports, this device is ready for anything.

3 Display Outputs
Supporting 8K

Giada AE613 has 3 display outputs, with a DP and two HDMI ports. Powered by Intel® UHD Graphics (Core i3)/Intel® Iris® Xe Graphics (Core i5), Giada AE613 can support 8K resolution (7680 x 4320 @60 Hz), delivering stunning visuals and an immersive multimedia experience.

Intel® vPro Technology

Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection.

Fanless Design

With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device run noise-free and dustproof. It enables this Giada® device applicable in mission-critical applications.

I/O port introduction

Download

Datasheet

User Manual

More Information

Brand

Giada Technology Inc.

Specifications

CPU	CPU	Intel® Core™ i3-1315U processor Intel® Core™ i5-1335U processor
	Efficient Frequency	3.30 GHz/3.40 GHz
	Performance Frequency	4.50 GHz/4.60 GHz
	Chipset	SoC
	Processing Units	6 Cores /10 Cores
	Configurable TDP-up	15 W /15 W
Memory	Size	Up to 64 GB
Memory	Type	2 x SO-DIMM DDR4-3200 MHz
Storage	Socket 1	1 x M-Key M.2 (2280) for PCIe SSD
Display	GPU	Intel® UHD Graphics (Core™ Core i3) Intel® IRIS® Xe Graphics (Core™ Core i5)
	Graphic Engine	DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
	Display Interface	1 x DP (Max.7680 x 4320 @60 Hz) 2 x HDMI (Max.4096 x 2304 @60 Hz)
Network	Network Controller	1 x Intel i219-LM Gigabit Ethernet 1 x Intel i210-IT Gigabit Ethernet
	Ethernet Interface	2 x RJ45
	Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
	Mobile Network	1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot
I/O interface	USB	4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
	Serial Port	1 x RS232, 1 x RS232/422/485
	Audio	1 x MIC-IN, 1 x AUDIO-OUT
	Button	1 x Power on, 1 x CLR-CMOS
	Antenna	2 x Connector for Wi-Fi/BT 2 x Connector for 3G/4G (Reserved)
System	TPM	Optional: TPM2.0
	Watchdog Timer	Yes
	Auto Power On	Yes
	RTC	Set up independently every day, a week as a cycle
	Remo on	NA
	Power Requirement	DC-IN, 12 ~ 24V, 65W
	Dimensions	200 mm x 150 mm x 40 mm (7.87” x 5.90” x 1.57”)
	Construction	Metal, Grey
	Operating System	Windows 11 (64bit) /Linux Ubuntu (64bit)
	Operating Temperature	-20°C ~60°C (-4°F~140°F) @0.7m/s Air Flow
	Humidity	10% ~ 90% @45°C (non-condensing)
	Storage Temperature	-40°~80°C (-40°F~176°F) not include the package
	Certifications	CE, FCC Class B, UKCA
