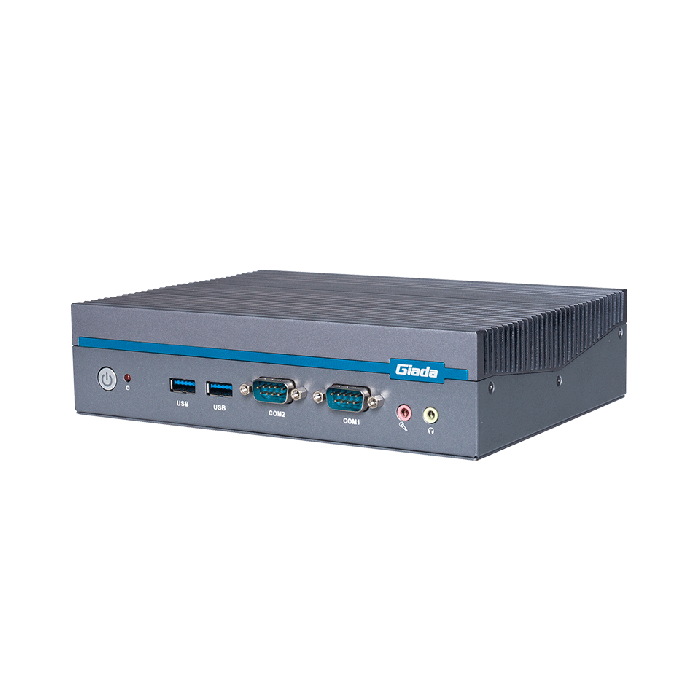

AE614 Semi-Industrial Fanless Digital Signage Player with Intel Core

Product Overview

The Giada AE614 is a compact fanless industrial computer designed for digital signage, kiosks, industrial automation and multi-display applications. Powered by Intel Core 3 100U or Core 5 120U processors, it combines up to 10 cores, DDR4 memory, PCIe 4.0 NVMe storage and three display outputs in a durable metal enclosure. Wide-temperature operation, dual Gigabit Ethernet, serial connectivity and optional wireless expansion support reliable 24/7 deployment in demanding commercial and industrial environments.

Key Features

Intel Raptor Lake-U Refresh Platform

• Intel Core 3 processor 100U option

• Intel Core 5 processor 120U option

• Up to 10 cores and 12 threads

• Energy-efficient 15 W processor platform

• Suitable for multitasking and responsive industrial applications

Fanless Industrial Design

• Passive thermal cooling without internal fans

• Reduced noise and maintenance requirements

• Durable grey metal enclosure

• Designed for reliable 24/7 operation

• Suitable for dusty and noise-sensitive installations

DDR4 Memory and NVMe Storage

• 2 x DDR4-3200 SO-DIMM sockets

• Supports up to 96 GB system memory

• 1 x M.2 2280 M Key socket

• PCIe 4.0 x4 support for NVMe SSD storage

• Suitable for high-capacity applications and local media storage

Triple Display Support

• 1 x DisplayPort output supporting up to 7680 × 4320 at 60 Hz

• 2 x HDMI outputs supporting up to 4096 × 2304 at 60 Hz

• Supports three simultaneous display outputs

• Intel integrated graphics

• Suitable for digital signage, control rooms and multi-screen visualisation

Networking and Wireless Expansion

• 2 x Gigabit Ethernet RJ45 ports

• Intel I219-LM and Intel I210-IT network controllers

• M.2 2230 E Key slot for WiFi and Bluetooth

• Supports selected WiFi 5, WiFi 6 and WiFi 6E modules

• M.2 3042 B Key slot and SIM slot for optional 3G or 4G connectivity

Industrial I/O Connectivity

• 4 x USB 3.2 Gen 2 ports with 10 Gbps transfer rates

• 2 x USB 2.0 ports

• 1 x RS-232 serial port

• 1 x RS-232/422/485 configurable serial port

• Microphone input and audio output connections

System Management and Security

• Optional TPM 2.0 support

• Hardware watchdog timer

• Automatic power-on support

• Programmable RTC power scheduling

• Power and clear CMOS controls

Wide-Temperature Operation

• 12 V to 24 VDC power input

• 90 W power requirement

• Operating temperature from -20°C to 60°C with airflow

• Storage temperature from -40°C to 80°C

• CE, FCC Class B and UKCA certifications

Applications and Use Cases

The AE614 is suitable for:

• Digital signage and menu boards

• Multi-screen information displays

• Self-service kiosks

• Industrial automation systems

• Control room visualisation

• Transportation information systems

• Retail and hospitality installations

• Connected industrial equipment

Dimensions/Drawings
