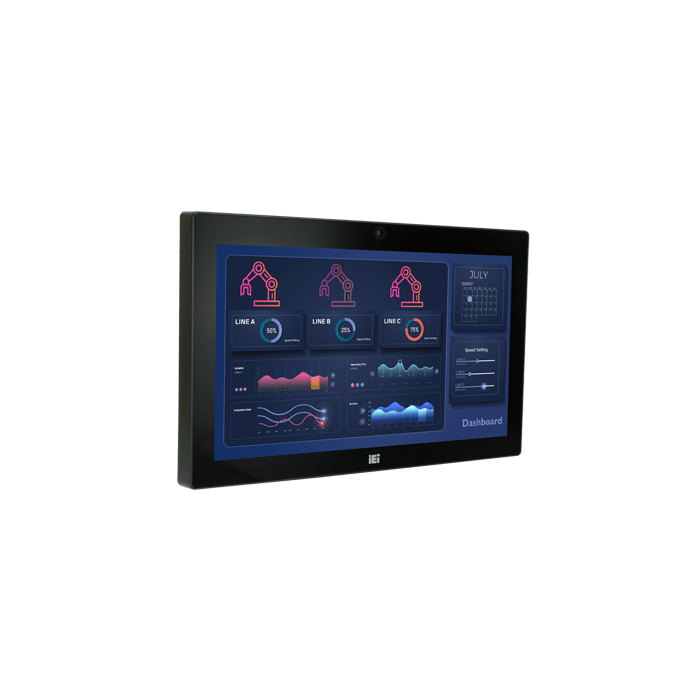

AFL3-W15C-ULT5 15.6" i5 8th Gen Panel PC
IEI Integration Corp.
AFL3-W15C-ULT5 15.6" i5 8th Gen Panel PC
15.6" 1366x768 300cd i5 8th Gen CPU
Description
● W15.6” light industrial interactive panel PC
● 8th Generation Intel® Core™ i5 on-board Whiskey Lake-U processor
● Selectable AT/ATX power mode
● Built-in speakers
● Support PoE PD IEEE803.2 af/at/bt (optional)
● IP64 compliant front panel
● Touch screen with anti-UV / anti-glare coating
● Support Auto Flow Control over RS-485
More Information
|
Brand |
IEI Integration Corp. |
|
Specifications |
| Communication |
| Bluetooth |
Bluetooth V4.1 |
| Wireless |
IEEE 802.11a/b/g/n/ac |
| Environment |
| Humidity |
10% ~ 95% (non-condensing) |
| Operating Temperature |
-20ºC ~ 50ºC (-4ºF ~ 122ºF) |
| Storage Temperature |
-20°C ~ 60°C (-4ºF ~ 140ºF) |
| I/O Interface |
| Audio |
AMP 3W + 3W (internal speaker) |
| Audio Codec |
ALC888S |
| Ethernet |
LAN1 & LAN2: Intel® I211; LAN3: Intel® I219 |
| RAM |
Two 260-pin 2400MHz dual-channel DDR4 SO-DIMMs supporting up to 32 GB |
| LCD |
| Backlight MTBF |
50000 (LED backlight) |
| Brightness (cd/m2) |
300 |
| Contrast Ratio |
500:1 |
| LCD Color |
16.7M |
| Resolution |
1366 X 768 (16:9) |
| Size |
15.6” |
| Viewing Angle (H-V) |
170º / 160º |
| Power |
| Power Requirement |
12V, 8A |
| System |
| Cooling method / System Fan |
Fanless |
| CPU |
Intel® Core™ i5-8365UE 1.6 GHz (up to 4.1GHz, Quad-core, 6MB cache, TDP=15W) |
| Storage |
1 x M.2 M-key 2242/60/80 PCIe 3.0 x4 (PCIe/SATA Signal)
1 x 2.5” SATA 3Gb/s HDD bay |
| Touch |
| Touch Controller |
EXC3160 |
| Touch Screen |
PCAP with USB interface (anti-UV/AG coating) |
| Weight |
| Weight |
4.5kg/6.5kg |
| I/O Interface |
| I/O Interface |
1 x AT/ATX Switch |
| 1 x Clear CMOS |
| 1 x HDMI |
| 3 x LAN(GbE) |
| 1 x Power In |
| 1 x Power Switch |
| 1 x Reset Button |
| 1 x RS-232 |
| 1 x RS-422/485(RS-232/422/485) |
| 4 x USB 3.2 Gen2 |
|
