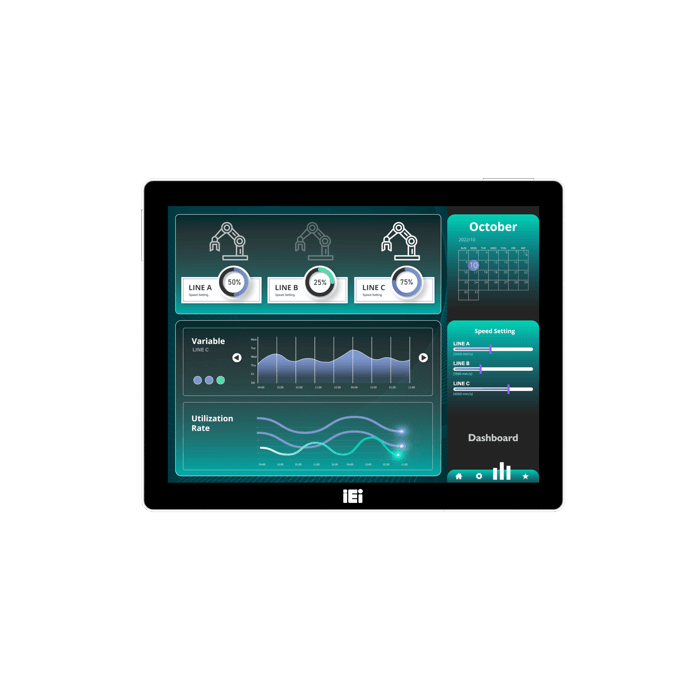

AFL4-121-ADLP 12.1” Light Industrial Fanless Panel PC 12th Gen
View larger image
AFL4-121-ADLP 12.1” Light Industrial Fanless Panel PC 12th Gen
SKU:
AFL4-121-ADLP-ix/8G-R10
12.1” Fanless Panel PC with Intel Alder Lake-P Core Processor
Key Features:
Intel Alder Lake-P Platform
New narrow bezel design
Anti-glare and Anti-UV PCAP
Support Gloved and Wet Hand Operation
Support WiFi 6E and Bluetooth 5.2
Description
The AFL4-ADLP is a fanless and stylish panel PC from IEI's AFOLUX series, which offers affordable luxury solutions for light industrial markets. It runs on a 12th Gen Intel® Core™ processor and 8GB LPDDR4x soldered memory, providing excellent performance and reliability. It features an optimized PCAP touchscreen, a rich I/O port selection, and the latest wireless communication technology – Wi-Fi 6E and Bluetooth 5.2- making it ideal for high-speed connectivity and large embedded RAM applications. The AFL4-ADLP is suitable for various fields such as factory automation, retail, digital signage, transportation, and surveillance.
More Information
Brand
IEI Integration Corp.
Specifications
System
CPU
12th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P)
On-board Memory
Dual channel On board LPDDR4x 8G
Communication
Wireless
IEEE 802.11ax 2T2R module (Wi-Fi 6E)
with BT v5.0 (M.2 2230 A-key)
I/O Interface
Ethernet
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225-LM 2.5GbE controller (Intel AMT)
Audio
AMP 1.2W (internal speaker)
Expansion
1 x M.2 M key 2242 (PCIE Gen4 x 4)
1 x M.2 M key 2280 (PCIE Gen4 x 4)
Audio Codec
Realtek ALC888S
Power
Input
12V DC
Environment
Operating Temperature
-10°C ~ 50°C
Safety & EMC
CE/EMC, FCC, RED (Class A)
Humidity
10% to 95% (non-condensing)
Storage Temperature
-20°C ~ 60°C
IP Level
Front panel IP65
Physical Characteristics
Color
Silver+Black
Mounting
Wall, Rack, Stand, ARM, VESA100
Construction Front Panel
Aluminum die casting+SECC
LCD
Size
12.1”
Resolution
1024 x 768 (4:3)
Brightness (cd/m2)
500(cd/m²)
Contrast Ratio
1200:1
Viewing Angle (H-V)
170°/170°
Backlight MTBF
50000 hours
Touch
Touch Screen
Multi-point projected capacitive type
(anti-UV / anti-glare coating,support gloves)
Surface hardness: ≥7H
Touch Controller
EETI EXC 81 Series
I/O Interface
I/O Interface
2 x RS-232 (by DB9)
2 x RS-232/422/485 (by DB9)
1 x DC Input Jack
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
2 x USB 3.2 Gen1x1
1 x USB2.0
1 x HDMI™ (up to 3840*2160 @30Hz)
2 x LAN (Intel® I225V 2.5GbE controller)
2 x USB 3.2 Gen2
OS Support
OS Support
Windows 10 IoT
Linux
