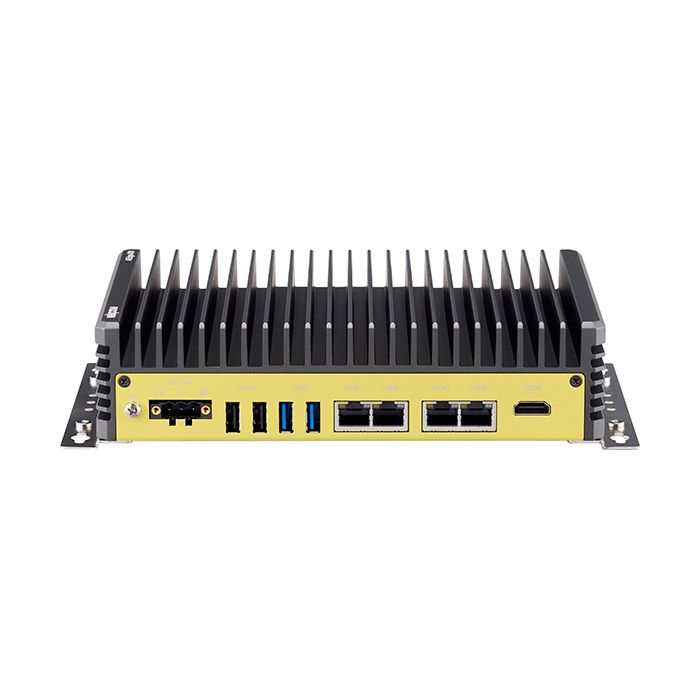

AIEdge-X80 Fanless Edge AI Computer NVIDIA Jetson Orin NX

SKU: AIEdge-X80-NX8/16

Edge AI Computer NVIDIA Jetson Orin NX 8/16GB

Key Features:

  • NVIDIA® Jetson Orin™ NX 16GB (100 TOPs)
  • NVIDIA® Jetson Orin™ NX 8GB (70 TOPs)
  • 1024-core NVIDIA® Ampere GPU with 32 Tensor Cores
  • 4 x Intel® GbE LAN port
  • 1 x M.2 2280 Key M for Storage,
  • 1 x M.2 3042/3052 Key B for 5G / LTE
  • 1 x full-size Mini PCIe for WiFi / BT
  • 1 x HDMI, 2 x COM port, 4 x USB, 1 x USB OTG
  • Extended Operating Temperature -20 ~ 60 °C
  • DC in 24V with 3 pin Phoenix terminal block
Datasheet

Description

Powered by the NVIDIA® Jetson Orin™ NX system-on-module (SoM), the fanless AIEdge-X®80 edge AI computer is designed to handle multiple AI application pipelines with its NVIDIA® Ampere architecture GPU, optimized for deep learning and vision accelerators. Delivering up to 100 TOPS of AI inference performance, the AIEdge-X®80 provides up to 3X the power of the Jetson AGX Xavier™ and up to 5X the performance of the Jetson Xavier™ NX. With a range of connectivity options—including 1 HDMI, 2 COM ports, 2 USB 3.2, and 2 USB 2.0 ports—the AIEdge-X®80 is ideal for image AI processing in applications such as object detection, sorting systems, security management, parcel tracking, and traffic enforcement.



Download

Datasheet

More Information

Brand Nexcom
Specifications

SOM module

  • 8-core NVIDIA® Arm CPU (2MB L2 + 4MB L3), 16GB SoM

  • 6-core NVIDIA® Arm CPU (1.5MB L2 + 4MB L3), 8GB SoM

GPU

  • 1024-core NVIDIA® Ampere GPU with 32 Tensor Cores

AI Accelerator

  • NVIDIA® Jetson Orin™ NX 16GB (100 TOPS)

  • NVIDIA® Jetson Orin™ NX 8GB (70 TOPS)

System Memory

  • Onboard 128-bit LPDDR5, 16GB

  • Onboard 128-bit LPDDR5, 8GB

Expansion

  • 1 x Full-size Mini PCIe slot, supports Wi-Fi / BT Module

  • 1 x M.2 3042/3052 Key B, supports 5G / LTE Module

I/O Interface – Rear

  • 1 x 3 pin Phoenix terminal block

  • 2 x USB 2.0, Type-A

  • 2 x USB 3.2 Gen 1x1, Type-A

  • 4 x GbE RJ45 port (3 x Intel® i210-IT, 1 x from SoM)

  • 1 x HDMI 1.4, up to 4096 x 2160@60Hz

  • 1 x USB OTG

I/O Interface – Front

  • 1 x Power button

  • 1 x HDD LED

  • 1 x COM 1, supports RS232/422/485

  • 1 x COM 2, supports RS232 (only TX/RX)

  • 3 x Antenna hole

Storage

  • 1 x M.2 2280 Key M SSD (PCIe Gen 3 x 4)

Power Supply

  • +24V DC in

Environment

  • Operating temperature:
    - Ambient with airflow: -20°C to 60°C
    - Storage temperature: -20°C to 80°C

  • Relative humidity: 10%~95% (non-condensing)

  • Vibration protection:
    - Random: 2Grms @ 5 ~ 500Hz, IE60068-2-64
    - Sinusoidal: 2G @ 5 ~ 500Hz, IEC60068-2-6

Mechanical & Dimension

  • System Unit
    - Dimension: 240mm (W) x 154mm (D) x 54mm (H) (w/ wall mount)
    - Net Weight: 2.03 kg/Unit

  • Package Carton
    - Gross Weight: 2.42kg 1 unit/per carton
    - Carton dimension: 320mm (W) x 245mm (D) x 127mm (H)

Operating System Support

  • NVIDIA® Jetpack™ 5.1.2

Certifications

  • CE (EMC EN55032 + EN55024)

  • FCC Class A (EMI Part 15)



Ordering Information

AIEdge-X80-NX16
AI Edge computing with NVIDIA Jetson OrinTM NX 16GB

AIEdge-X80-NX8
AI Edge computing with NVIDIA Jetson OrinTM NX 8GB
