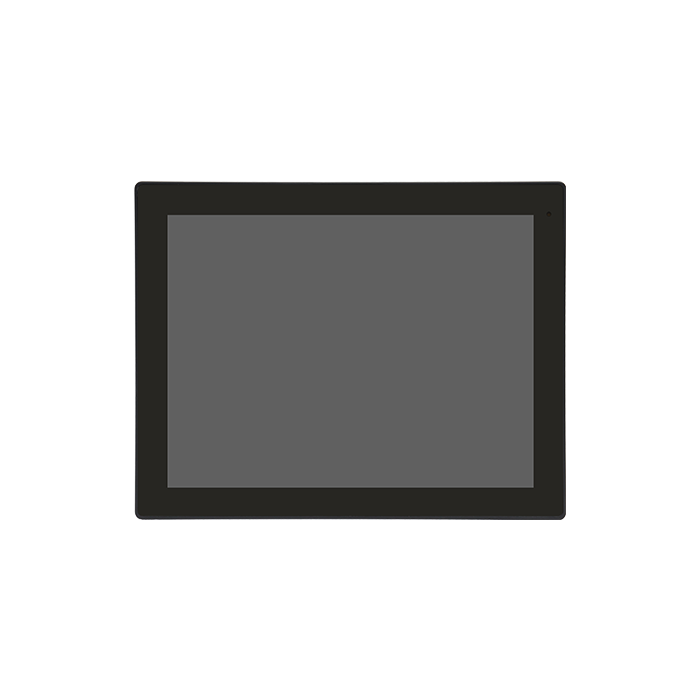

AiTRON-912EP/H 12.1” Industrial Fanless Panel PC with Intel Core Ultra
12.1" XGA Intel Core Ultra 5/7 Platform Fanless Industrial Multitouch Panel PC
Key Features:
- 12.1” Industrial Grade Multitouch Panel PC
- Intel Core Ultra 5/7 Processor
- Support 1 x DDR5-5600MHz SO-DIMM
- IP66 Compliant Aluminium Narrow Bezel Design
- 7H Anti-scratch Projected Capacitive Multi-touch Screen
- Support High Brightness LCD (optional)
- Support Auto-Dimming(PB-49/50)(optional)
- Power Input: DC 9-36V
- Fanless Design
Description
Product Overview
The Aplex AiTRON-912EP/H is a 12.1 inch AI powered industrial HMI panel PC designed for automation, machine control and edge AI applications. Powered by Intel Core Ultra 5 and Ultra 7 processors, it combines industrial durability, AI acceleration and flexible connectivity within a fanless aluminium chassis. With projected capacitive touch, front IP66 protection and support for wireless expansion, the AiTRON-912EP/H is well suited to smart manufacturing, industrial automation and intelligent edge deployments.
Key Features
Intel Core Ultra AI Platform
-
Intel Core Ultra 5 and Core Ultra 7 processor options
-
Integrated AI acceleration for intelligent edge applications
-
Supports DDR5 memory up to 48 GB
-
Designed for industrial visualisation and control workloads
12.1 Inch Industrial Touch Display
-
12.1-inch industrial TFT LCD
-
Projected capacitive multitouch technology
-
Available in standard and high-brightness configurations
-
Designed for responsive operator interaction in industrial environments
Rugged Industrial Construction
-
Fanless aluminium die-cast chassis
-
IP66-compliant front bezel for dust and water protection
-
Designed for continuous industrial operation
-
Suitable for harsh manufacturing environments
Flexible Expansion Options
-
M.2 Key E slot for optional WiFi and Bluetooth modules
-
M.2 Key B slot for optional LTE and 5G connectivity
-
Integrated Nano SIM slot for cellular deployments
-
Designed for scalable industrial networking applications
Rich Industrial Connectivity
-
Dual 2.5GbE LAN ports with Wake-on-LAN support
-
USB 3.2 interfaces for peripherals and expansion
-
HDMI and DisplayPort outputs for additional displays
-
Serial communication ports supporting RS-232, RS-422 and RS-485
Wide Power Input Support
-
Wide DC 9 V to 36 V power input range
-
Suitable for industrial and mobile applications
-
Supports stable operation in varying power environments
-
Designed for reliable long-term deployment
Applications and Use Cases
The AiTRON-912EP/H is suitable for:
-
Industrial automation and machine control
-
Smart manufacturing systems
-
Edge AI and intelligent monitoring
-
Transportation and infrastructure applications
-
Industrial HMI and operator interface systems
Dimensions/Drawings
Download
More Information
| Brand | Aplex Technology Inc. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
AiTRON-912EP
12.1" XGA fanless HMI barebone with Intel Core Ultra 5/7, 1 x DDR5 slot, 1 x M.2 M-key slot, 1 x M.2 E-key slot, 1 x M.2 B-key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
AiTRON-912EPH
12.1" XGA High Brightness fanless HMI barebone with Intel Core Ultra 5/7, 1 x DDR5 slot, 1 x M.2 M-key slot, 1 x M.2 E-key slot, 1 x M.2 B-key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminium chassis.
