AM103/L LoRaWAN Indoor Ambience Monitoring Sensor

In stock
SKU:
AM103/L
Brand: Milesight IOT

AM103 Small Indoor Environmental Monitoring Sensor Temperature, Humidity, and CO2


Enquire Now
Enquire about this product:

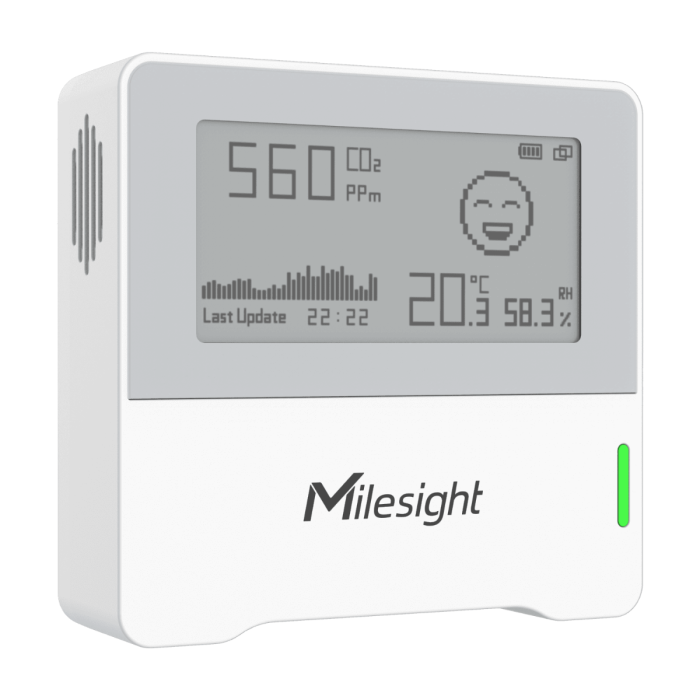

The AM103 is a small indoor environmental monitoring sensor that measures temperature, humidity, and CO2. This information will be displayed on an E-ink screen in real-time, allowing for the quantification of the indoor environment and comfort. The AM103 is commonly used in offices, retail, classrooms, and hospitals, among other places.

Sensor data can also be transmitted using LoRaWAN, in addition to its screen display. With this low-power technology, the AM103 can last up to 3 years on two replaceable batteries. Users can manage all sensor data remotely and visually using the Milesight LoRaWAN gateway and Milesight IoT Cloud solution.

Key Features:

  • Integrated with multiple sensors like humidity, temperature and CO2
  • Visual data and clear emoticon to understand the comfort level easily via the E-ink screen
  • Equipped with traffic light indicator to indicate multi-level CO2 threshold alarms
  • More than 3 years of functioning without replacing batteries
  • Built-in NFC for easy configuration
  • Compliant with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution

This product is listed in Partners, Milesight IOT
Wireless Transmission
Technology LoRaWAN®
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Sensors
Temperature Range -20°C to + 70°C
Accuracy 0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C)
Resolution 0.1°C
Humidity Range 0% to 100% RH
Accuracy 10% to 90% RH (± 3%), below 10% and above 90% RH (± 5%)
Resolution 0.5% RH
Carbon Dioxide (CO2) Range 400 to 5000 ppm
Accuracy ± (30 ppm + 3 % of reading)
Resolution 1 ppm
Display & Configuration
Display AM103: 2.13-inch Black & White E-Ink Screen



AM103L: Not Support

Button 1 × Power Button
LED 1 × Traffic Light Status Indicator
Configuration Mobile App via NFC
Physical Characteristics
Power Supply 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life
(10 min interval)
AM103: Around 3 Years
AM103L: Around 4 Years
Operating Temperature -20°C to +60°C (E-Ink Screen: 0°C – 40°C)
Relative Humidity 0% to 95% (non-condensing)
Ingress Protection IP30
Dimension 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)
Installation Wall Mounting
