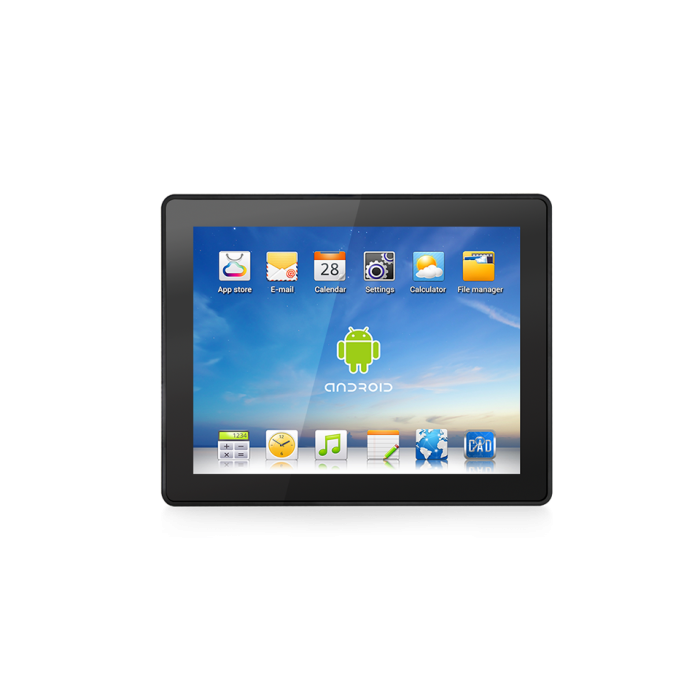

AN708 10.1" Android Touch Panel PC with RK3576
10.1-inch 10 Point Touch Screen, Rockchip RK3576 processor
Key Features:
- Rockchip® RK3576 processor
- 10.1-inch, 10-point touchscreen
- 1280 x 800 @ 60 Hz
- Android 14 OS
- 0°C ~ 50°C operating temp.
Description
Product Overview
The AN708 is a 10.1-inch HMI panel PC engineered for embedded and industrial display applications. Built around the Rockchip RK3576 octa-core Arm processor with integrated 6 TOPS NPU, it supports both Android 14 and Debian 12 operating systems. With its fan-less thermal design, multi-touch 10-point display and rich I/O, the AN708 is ideal for smart kiosks, operator panels, machine interfaces and embedded edge computing nodes.
Key Features
High-Performance Computing
-
Rockchip RK3576 processor featuring a 4 × Cortex-A72 + 4 × Cortex-A53 core configuration
-
Integrated NPU delivering approximately 6 TOPS of artificial intelligence inference performance
-
On-board 4 GB LPDDR4x memory plus 32 GB eMMC storage
-
Supports both Android 14 and Debian 12 for flexible deployment in HMI or kiosk environments
Rugged and Reliable Design
-
Fanless passive-cooled architecture for silent, maintenance-free operation
-
Operating temperature range from 0 °C to 50 °C with storage from -20 °C to 70 °C
-
Slim dimensions (~267.5 × 186 × 41.5 mm) enabling integration into panels or machines
-
Front panel designed for industrial mounting with robust build
Display and Touch Interface
-
10.1-inch TFT panel with 1280 × 800 resolution and full-lamination
-
Projected-capacitive 10-point multi-touch input supporting finger or stylus
-
Brightness approximately 300 cd/m², contrast >600:1, wide-angle viewing (85° all directions)
Power and Connectivity
-
Single DC-in (12 V/3 A) for simplified power design
-
Rich I/O that typically includes Type-C (OTG/DP/USB3.2 Gen1), USB3.2 Gen1 ports, HDMI output supporting up to 4K @120 Hz, dual Gigabit LAN, audio MIC-in/headset jack, COM ports and GPIO headers
-
Fan-less system designed for continuous operation in embedded or kiosk environments
Certifications and Compliance
-
Compliant with CE and FCC classifications for industrial/embedded use
-
Lifecycle and availability commitments suitable for OEM integration and long-term deployment
Download
More Information
| Brand | Giada Technology Inc. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
AN708-3576U42N5G-GIA
CPU: Rockchip RK3576
RAM: 4 GB, Onboard LPDDR4
Storage: 32 GB, Onboard eMMC
Wi-Fi/BT: Onboard Wi-Fi/BT module
Operating System: Android 14
