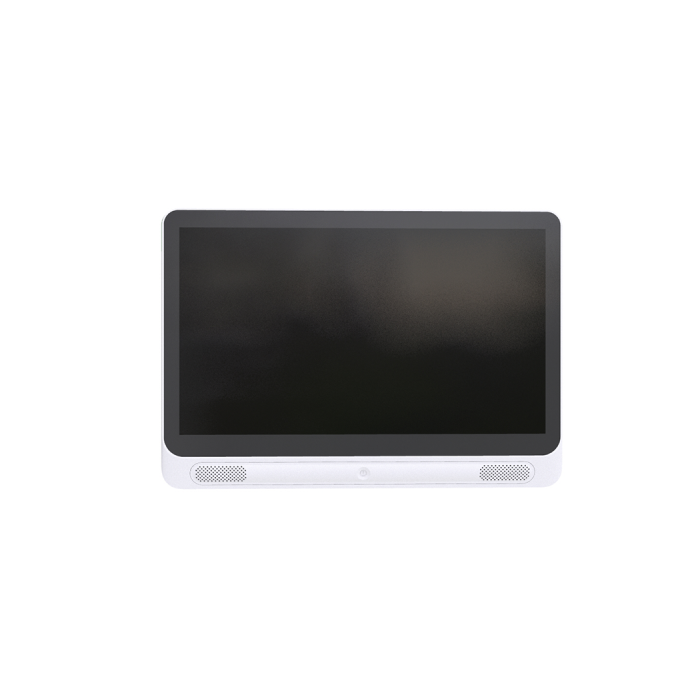

APC-15WR2 15.6" Applied Panel PC with Rockchip RK3568
15.6" Applied Panel PC with Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
Key Features:
- 15.6" 1920 x 1080 Applied Panel PC with PCAP touch
- Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
- 4GB LPDDR4 / 64GB eMMC
- Full colour LED indicating light bar
- Fanless operation from 0°C ~ 40°C
- Wide voltage input DC 12~24V and support Powered LAN (802.3at)
Description
Product Overview
The Avalue APC-15WR2 is a 15.6" industrial panel PC designed for embedded control systems, healthcare terminals and interactive information displays. It combines a fanless design with an ARM platform and a full HD projected capacitive touchscreen, providing stable operation in environments that require continuous uptime and low maintenance. With support for Android or Debian operating systems, the APC-15WR2 is suitable for applications such as bedside terminals, automation interfaces and smart facility control systems.
Key Features
Efficient and Stable Performance
-
Rockchip RK3568 quad core Cortex-A55 processor operating up to 2.0 GHz
-
Integrated Mali-G52 graphics supporting modern graphics workloads
-
4 GB LPDDR4 memory with 64 GB eMMC onboard storage
-
Micro SD slot available for additional storage expansion
Display and Touch Interface
-
15.6 inch TFT display with 1920 x 1080 resolution
-
Projected capacitive multi touch panel supporting up to 10 touch points
-
Brightness around 400 cd/m² with wide viewing angles for clear visibility
-
LED backlight display suitable for interactive systems and control panels
Connectivity and Integration
-
Gigabit Ethernet LAN for reliable wired connectivity
-
Two USB 3.0 ports for peripherals and external devices
-
RS-232 or RS-485 serial interface for industrial device communication
-
M.2 expansion slot supporting SSD or LTE modules
-
Optional wireless connectivity for WiFi and Bluetooth environments
Rugged Fanless Design
-
Fanless architecture reduces maintenance and improves reliability
-
Wide voltage input from 12 V to 24 V suitable for industrial installations
-
Front panel rated IP65 for protection against dust and splashes
-
Compact housing designed for panel mounting and space efficient installation
Application Ready
The APC-15WR2 is suitable for:
-
Healthcare bedside terminals and infotainment systems
-
Industrial automation control panels
-
Smart building management interfaces
-
Interactive kiosks and information displays
-
Embedded monitoring systems in facilities and equipment
Download
More Information
| Brand | Avalue Technology Inc | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
Ordering Information
APC-15WR2-CW49-1R: APC-15WR2-4G/64G-Android 11
APC-15WR2-CW49-2R: APC-15WR2-4G/64G-Android 11 w/ Adapter
APC-15WR2-CW49H-1R: APC-15WR2-4G/64G-Android 11 w/ Handset
APC-15WR2-CW49H-2R: APC-15WR2-4G/64G-Android 11 w/ Handset & Adapter
