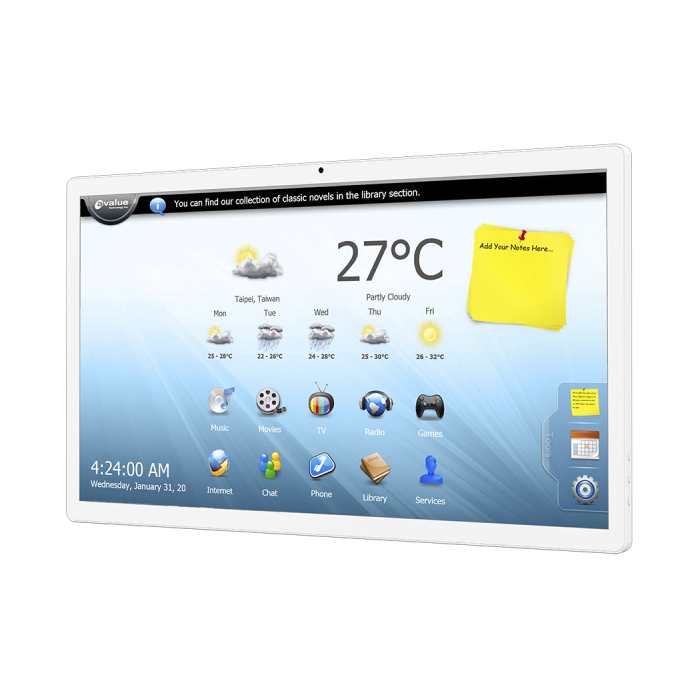

APC-21WR6 21.5" Ultra Slim Panel PC with Rockchip RK3576
21.5" Ultra Slim Panel PC with Rockchip RK3576S Quad core Cortex A53+Quad core Cortex A72
Key Features:
- 21.5" 1920 x 1080 Slim Panel PC with PCAP touch
- Rockchip RK3576S Quad core cortex A53+Quad core cortex A72
- 4GB LPDDR5 / 64GB eMMC
- Fanless operation from 0°C ~ 40°C
- DC 12V and support Powered LAN (802.3bt)
- Support Android 14 with Google EDLA
Description
Product Overview
The Avalue APC-21WR6 is a 21.5-inch industrial panel PC designed for smart facilities, automation systems, kiosks and interactive information displays. It combines a slim fanless design with an ARM platform and a full HD projected capacitive touchscreen, allowing reliable operation in environments that require continuous uptime and minimal maintenance. With Android operating system support and integrated connectivity options, the APC-21WR6 is suited for control interfaces, digital signage, industrial monitoring and smart building applications.
Key Features
Efficient and Stable Performance
-
Rockchip RK3576S processor with multi-core architecture
-
Integrated Mali graphics supporting modern visual applications
-
Onboard memory and eMMC storage for stable system operation
-
Designed to support Android-based environments for application deployment
Display and Touch Interface
-
21.5-inch IPS display with 1920 x 1080 resolution
-
Projected capacitive multi touch panel supporting up to 10 touch points
-
Wide viewing angles for clear visibility in interactive environments
-
LED backlight display suitable for control panels and interactive systems
Connectivity and Integration
-
Gigabit Ethernet for reliable network connectivity
-
USB ports for peripherals and external devices
-
HDMI input for external video sources
-
Optional wireless support, including WiFi and Bluetooth
-
Optional camera and NFC support for interactive systems
Rugged Fanless Design
-
Fanless architecture designed for silent operation and reduced maintenance
-
Slim enclosure suitable for wall mounting or panel installation
-
Designed for reliable operation in indoor industrial environments
-
DC power input suitable for commercial installations
Application Ready
The APC-21WR6 is suitable for:
-
Industrial automation interfaces
-
Smart building management systems
-
Digital signage and information displays
-
Interactive kiosks and self-service terminals
-
Monitoring systems in facilities and control rooms
Download
More Information
| Brand | Avalue Technology Inc | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
Ordering Information
APC-21WR6
