Processor |
Rockchip RK3576S (Quad Cortex-A53 + Quad Cortex-A72) |
|
System Memory |
Onboard 4GB LPDDR5 |
|
Storage |
Onboard 64GB eMMC |
|
Graphics |
Mali-G52 MC3 GPU, supports OpenGL ES 1.1 / 2.0 / 3.2, Vulkan 1.2, OpenCL 2.1 |
|
Speaker Output |
2 × 4Ω 5W |
|
Ethernet Interface |
10 / 100 / 1000 Base-Tx GbE |
|
DC Input Voltage |
+12V |
|
DC Connector |
DC Jack |
|
Adapter |
Input: 100–240VAC, 50–60Hz Output: 48W AC-DC adapter (12V @ 4A) |
|
Operating System |
Android 14 |
|
Display Size |
23.8 inch |
|
Panel Type |
IPS |
|
Resolution |
1920 × 1080 |
|
Brightness |
300 cd/m² |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle |
89° (U / D / L / R) |
|
Response Time |
9 ms |
|
Backlight |
ELED |
|
Touchscreen |
Projective capacitive multi-touch (up to 10 points) |
|
USB Ports |
1 × USB 3.0 1 × USB 2.0 1 × USB Type-C (full function except charging and DP) |
|
LAN Port |
1 × RJ45 |
|
HDMI |
1 × HDMI-in |
|
DC Input Port |
1 × DC Jack |
|
Buttons |
Power / Volume Up / Volume Down |
|
NFC |
Supports 13.56MHz, ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A/B, ISO/IEC 15693, JIS X 6319-4, MIFARE |
|
Camera |
1 × MIPI 8.0MP camera |
|
Wi-Fi |
Optional Wi-Fi 802.11b/g/n/a/ac/ax |
|
Bluetooth |
Optional Bluetooth 5.4 |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Storage Temperature |
−20°C to 60°C (−4°F to 140°F) |
|
Operating Humidity |
20–80% RH |
|
Dimensions (W × L × H) |
554.1 × 336.7 × 34 mm |
|
Weight |
3.82 kg |
|
Mounting |
Wall mount bracket included |
|
VESA Mount |
100 × 100 mm |
|
Power Options |
DC 12V or Powered LAN (802.3bt) |
|
Power Mode |
AT / ATX (AT default) |
|
Cooling |
Fanless |
|
Construction |
Plastic ABS |
|
Packing List |
1 × APC-24WR6 1 × AC/DC 48W Adapter (12V / 4A) 1 × Power Cord 1 × USB Cable (Type-A to Type-C) 1 × Wall mount bracket 5 × KA4.0 × 3 mm screws with wall plug 2 × M4.0 × 46 mm screws 4 × EVA cotton pads 1 × Spirit Level |

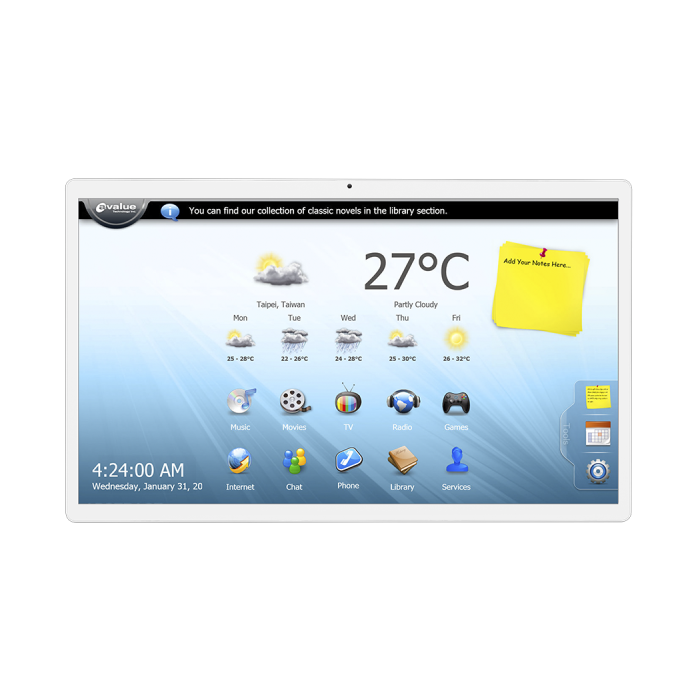

APC-24WR6 23.8" Ultra Slim Panel PC with Rockchip RK3576S
23.8" Ultra Slim Panel PC with Rockchip RK3576S Quad core & Android 14
Key Features:
- 23.8" 1920 x 1080 Slim Panel PC with PCAP touch
- Rockchip RK3576S Quad core cortex A53+Quad core cortex A72
- 4GB LPDDR4 / 32GB eMMC
- Fanless operation from 0°C ~ 40°C
- DC 12V and support Powered LAN (802.3bt)
- Support Android 14 with Google EDLA
Description
Product Overview
The Avalue APC-24WR6 is a 23.8 inch industrial panel PC designed for automation systems, smart facility control and interactive display environments. It features a slim, fanless design with an ARM platform and a full-HD projected-capacitive touchscreen, enabling reliable operation in applications that require continuous uptime and minimal maintenance. With Android OS support and integrated connectivity options, the APC-24WR6 is well-suited for industrial monitoring, kiosks, digital signage, and smart building interfaces.
Key Features
Efficient and Stable Performance
-
Rockchip RK3576S processor with multi-core architecture
-
Onboard memory and eMMC storage are designed for stable operation
-
Supports Android environments for flexible application deployment
-
Fanless system design supporting reliable operation in industrial settings
Display and Touch Interface
-
23.8-inch IPS display with 1920 × 1080 resolution
-
Projected capacitive multi-touch panel supporting up to 10 touch points
-
Wide viewing angles suitable for interactive and control applications
-
Full HD display suited for dashboards and digital interfaces
Connectivity and Integration
-
Gigabit Ethernet for stable network connectivity
-
USB ports for peripherals and external devices
-
HDMI input for external video sources
-
Optional wireless support, including WiFi and Bluetooth
-
Optional NFC and camera support for interactive systems
Rugged Fanless Design
-
Fanless architecture designed for silent operation and reduced maintenance
-
Slim enclosure suitable for wall mounting or panel installation
-
Designed for reliable operation in industrial and commercial environments
-
DC power input suitable for commercial installations
Application Ready
The APC-24WR6 is suitable for:
-
Industrial automation interfaces
-
Smart building management systems
-
Digital signage and information displays
-
Interactive kiosks and self-service terminals
-
Monitoring dashboards in facilities and control rooms
