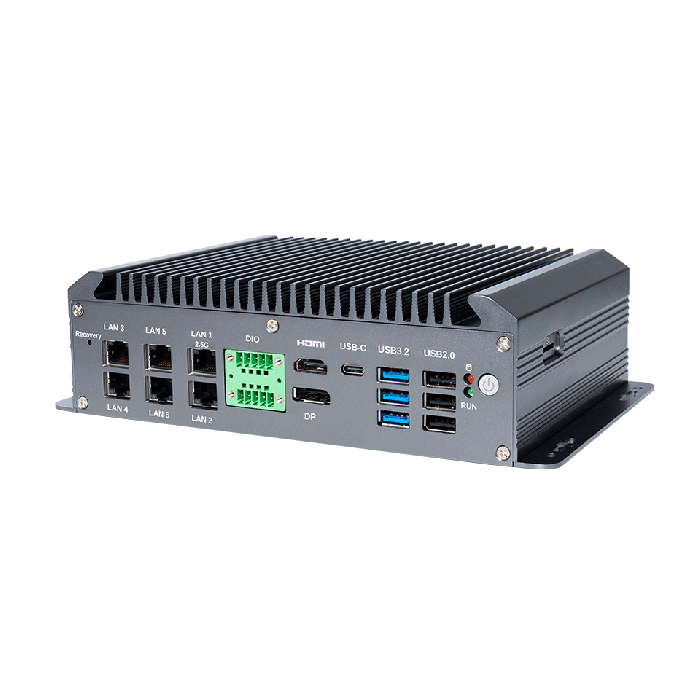

AR707 ARM-Based Fanless Industrial PC with RK3588J

Product Overview

The Giada RK3588-Based Industrial PC is an advanced embedded compute platform built for demanding industrial and edge-AI applications. At its core it uses the Rockchip RK3588 processor, designed for high-performance, low-power operation across harsh environments. With support for both Android 14 and Debian 11, wide-temperature range, and rich field I/O connectivity, this unit is a compelling choice for automation, vision inspection, digital signage and other connected edge systems.

Key Features

High Performance Computing

• Rockchip RK3588 octa-core processor combining four Cortex-A76 cores with four Cortex-A55 cores, delivering substantial compute headroom for AI, media and control workloads.

• Integrated NPU delivering up to 6 TOPS of inference performance supporting INT4/INT8/INT16/FP16 hybrid operations.

• Advanced graphics/media features, including high-resolution video decoding and multiple display support for signage or HMI applications.

Rugged and Reliable Design

• Built for industrial resilience: supports a wide operating temperature range from –20 °C to +70 °C in its rugged variant, enabling deployment in harsh factory or outdoor environments.

• Wide DC input support (e.g., 12 V to 24 V) simplifies integration into industrial power systems and kiosks.

• Fanless, compact metal enclosure design provides silent operation, minimal maintenance and suitability for continuous 24/7 use.

Powerful Connectivity & I/O

• Rich selection of industrial I/O: multiple COM ports (e.g., RS-232/422/485), GPIO, CAN bus channels, allowing integration with sensors, actuators, controllers and legacy systems.

• Networking and media interfaces suitable for modern edge applications: Gigabit Ethernet, multiple USB ports, display outputs, and optional wireless modules (Wi-Fi, BT, LTE/5G) depending on build.

Software Flexibility & Ecosystem

• Dual-OS support: Android 14 for app-centric or kiosk deployments, and Debian 11 for full Linux-based compute/inference tasks.

• Designed for long-lifecycle and embedded applications, aligning with Tekdis’ value-added services model for configuration, imaging and customised deployment.

I/O Ports
