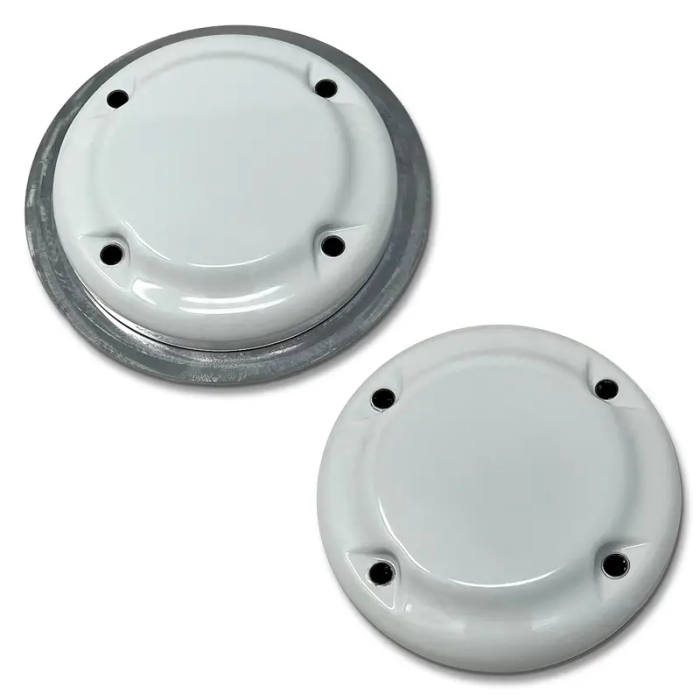

ARM928XF Multi-Constellation Triple-Band Space-Qualified Antenna
Extended-Filter Triple-Band GNSS Antenna + L-Band
Key Features:
- Space-qualified ARM928XF GNSS antenna option
- Triple-band GNSS support for L1, L2 and L5 signals
- Supports GPS/QZSS, GLONASS, Galileo, BeiDou, NavIC and L-Band correction services
- Accutenna® and XF filtering for improved signal reception and interference rejection
- Rugged low-profile design with Mini ARINC bolt pattern
- Wide operating temperature range from -65°C to 125°C
- Available with SMA or TNC female connector options
Description
Product Overview
The Calian ARM928XF is a rugged triple-band GNSS antenna with integrated L-band support, designed for precision positioning and correction service applications in demanding environments. Built with an extended filter design, it provides enhanced rejection of out-of-band interference while maintaining strong multi-constellation GNSS reception. With GPS support, GLONASS, Galileo and BeiDou alongside L-band correction services, the ARM928XF is suited to surveying, autonomous systems, transportation and industrial positioning applications where signal integrity and reliability are critical.
Key Features
Triple Band GNSS with L Band Support
-
Supports multiple GNSS constellations, including GPS, GLONASS, Galileo and BeiDou
-
Triple band GNSS reception for improved positioning accuracy
-
Integrated L-band support for correction services and enhanced precision
-
Designed for high-reliability positioning applications
Extended Filter Technology
-
Advanced filtering improves rejection of out-of-band interference
-
Helps maintain stable GNSS performance in RF-dense environments
-
Reduces signal degradation from nearby communication systems
-
Suitable for urban, transport and industrial deployments
High Precision Performance
-
Designed for accurate positioning and timing applications
-
Stable phase centre characteristics for precision GNSS operation
-
Suitable for RTK and correction-based positioning systems
-
Supports applications requiring dependable long-term accuracy
Rugged Outdoor Construction
-
Weather-resistant housing designed for outdoor installations
-
Built to withstand vibration and harsh environmental conditions
-
Suitable for fixed infrastructure and mobile deployments
-
Engineered for long-term operation in demanding environments
Flexible Integration
-
Compatible with a wide range of GNSS receivers and correction services
-
Supports integration into autonomous, transport and industrial systems
-
Compact design for simplified installation
-
Suitable for both mobile and fixed positioning platforms
Applications and Use Cases
The ARM928XF is suitable for:
-
Precision GNSS and RTK positioning
-
Autonomous and unmanned systems
-
Transportation and fleet applications
-
Industrial automation and smart infrastructure
-
Surveying, mapping and monitoring systems
Dimensions/Drawings
Download
More Information
| Brand | Calian Group |
|---|---|
| Specifications |
Technology GNSS Coverage Frequency Coverage Gain Axial Ratio LNA Performance Phase Centre Variation Voltage & Power ESD Protection Connector Options Mounting Dimensions Weight Construction Environmental Environmental Testing Compliance Warranty |
Ordering Information
Part Number 33-ARM928XF-Y-XX-S
where Y = configuration: 1 = 10cm GP
2 = Standard GP
where XX = female connector: 01 = TNC
07 = SMA
S = LEO Space Qualified Components
